1. Introduction to ASME B1.2 and UN Thread Ring Gauges
The Unified Inch screw thread system, standardized under ASME B1.1, is the most widely used thread standard in North America and many industrial sectors worldwide. Unlike metric threads whose basic dimensions are expressed in round millimeter values, Unified Thread Standard (UTS) threads are defined with inch-based basic dimensions while sharing the same 60° included angle profile as ISO metric screw threads.
ASME B1.2-1983 (R2017) , formally titled Gages and Gaging for Unified Inch Screw Threads, provides essential specifications and dimensions for the gages used on Unified inch screw threads (UN and UNR thread forms), and covers the specifications and dimensions for thread gages and measuring equipment. The standard establishes the dimensional requirements, tolerances, and gauging practices for plug gauges (inspecting internal threads) and ring gauges (inspecting external threads).
1.1 UN Thread Series Overview
The UN thread system encompasses several series based on pitch combinations:
| Series | Description | Primary Application |
|---|---|---|
| UNC | Unified National Coarse | General-purpose fastening, high strength in brittle materials |
| UNF | Unified National Fine | Vibration resistance, thin-walled applications |
| UNEF | Unified National Extra Fine | Precision adjustment, very thin walls |
| UN | Constant-pitch series | Special diameters with standard TPI (e.g., 12 UN) |
The constant-pitch UN series (such as 12 UN, 16 UN, etc.) provides flexibility for applications where a specific pitch is required regardless of nominal diameter.
1.2 Thread Classes: The 1A, 2A, 3A System
ASME B1.2 defines three tolerance classes for external UN threads, designated with the suffix “A” (for external threads) and “B” (for internal threads). The thread ring gauge is used to inspect external threads, and as such, the most commonly supplied classes are 2A, followed by 1A and 3A:
| Class | Description | Characteristics |
|---|---|---|
| 1A | Loose fit | Liberal tolerance for easy assembly, even with slightly marred threads; additional allowance added to external thread |
| 2A | Medium fit | Most commonly used class for general applications; allowance added to external thread; the standard “nuts and bolts” fit |
| 3A | Tight fit | High accuracy required for thread elements; commonly referred to as “machine fit”; no allowance (maximum material condition equals basic size) |
For external Class 2A threads — the most commonly specified for ring gauges — an allowance is applied that makes the pitch diameter smaller than the basic pitch diameter, ensuring a guaranteed gap between mating components.
1.3 Thread Ring Gauges: GO and NO-GO
Thread ring gauges are precision inspection tools used to verify the dimensional acceptability of external threaded products such as screws, bolts, and studs. They are always supplied in pairs or as double-ended gauges containing both a GO gauge and a NO-GO gauge.
| Gauge Type | Function |
|---|---|
| GO Thread Ring Gauge | Verifies that the external thread’s pitch diameter and minor diameter do not exceed the maximum allowable limit (i.e., the thread is not too large) |
| NO-GO Thread Ring Gauge | Verifies that the external thread’s pitch diameter does not fall below the minimum allowable limit (i.e., the thread is not too small) |
2. Fundamental Parameters of UN Threads
Before calculating gauge dimensions, it is essential to understand the foundational thread geometry defined in ASME B1.1.
2.1 Core Thread Geometry
| Parameter | Value |
|---|---|
| Thread Form | 60° included angle (symmetrical V-thread) |
| Basic Thread Height (H) | H = 0.866025403 × Pitch |
| Basic Major Diameter (d) | Nominal size (e.g., 3.5000 inches for 3½ inch thread) |
| Basic Pitch Diameter (d₂) | d₂ = d - 0.649519 × Pitch |
| Basic Minor Diameter (d₃) | d₃ = d - 1.299038 × Pitch |
| Thread Angle | 60° |
| Radius at Root (External Thread) | 0.10825P to 0.14434P (UNR/UNJ specifies larger controlled radius) |
2.2 Basic Dimension Formulas
The following formulas, derived from the 60° thread geometry, are used to calculate the basic dimensions of any UN thread:
| Parameter | Symbol | Formula |
|---|---|---|
| Pitch | P | P = 1 / n (n = threads per inch) |
| Fundamental Triangle Height | H | H = 0.866025403 × P |
| Thread Height (Basic) | h | h = 0.541265877 × P |
| Basic Pitch Diameter | D₂ (internal) or d₂ (external) | Basic major diameter - 0.649519 × P |
| Basic Minor Diameter (External) | d₁ | Basic major diameter - 1.082531754 × P |
| Basic Minor Diameter (Internal) | D₁ | Basic major diameter - 1.082531754 × P + allowance |
Where 0.649519 is derived as 5H/8, and 1.082531754 is derived as 5H/4.
3. Parameter Calculation Methodology for UN Thread Ring Gauges
The design and manufacturing of UN thread ring gauges require precise calculations that incorporate thread allowances, tolerances, and gauge-maker’s allowances.
3.1 The 2A Allowance and Tolerances
For external Class 2A threads, the allowance (fundamental deviation) is applied to the basic dimensions to create the minimum material condition. The following dimensional limits define the external product thread:
| Parameter | Calculation |
|---|---|
| Maximum Major Diameter | Basic major diameter (no allowance on major for 2A) |
| Minimum Major Diameter | Basic major diameter - major diameter tolerance |
| Maximum Pitch Diameter | Basic pitch diameter - allowance |
| Minimum Pitch Diameter | Maximum pitch diameter - pitch diameter tolerance |
| Maximum Minor Diameter | Basic minor diameter (for 2A, minor diameter is not directly toleranced; it is the result of the major diameter and thread form) |
3.2 Working Thread Ring Gauge Pitch Diameters
The working GO and NO-GO thread ring gauges are designed with pitch diameters that correspond to the external product thread limits, with additional gauge-maker’s tolerances applied to ensure correct acceptance and rejection.
| Gauge Type | Pitch Diameter Calculation |
|---|---|
| GO Thread Ring Gauge | GO Pitch Diameter = Maximum External Product Pitch Diameter + Gauge Maker’s Allowance (negative value — gauge PD is smaller to ensure GO acceptance) |
| NO-GO Thread Ring Gauge | NO-GO Pitch Diameter = Minimum External Product Pitch Diameter - Gauge Maker’s Allowance (positive value) |
In practice, for a 2A external thread, the GO ring gauge pitch diameter is set slightly smaller than the maximum product pitch diameter, while the NO-GO ring gauge pitch diameter is set slightly larger than the minimum product pitch diameter. This configuration ensures that acceptable parts pass the GO test and fail the NO-GO test within defined limits.
For a typical UN thread ring gauge (adjustable type), the pitch diameter can be adjusted within a range of approximately .002″ on smaller rings up to .010″ on larger thread ring gages.
3.3 Minor Diameter of UN Thread Ring Gauges
The minor diameter of a thread ring gauge is equally important for proper gauging. For an external UN thread, the minor diameter of the ring gauge should be large enough to allow the threaded part’s major diameter to pass through without interference, yet small enough to verify the thread form.
A practical calculation for the GO ring gauge minor diameter uses the following formula:
GO Minor Diameter = GO Pitch Diameter - (H/2)
Where H = 0.8660254 × Pitch (the fundamental triangle height).
For the NO-GO ring gauge, the minor diameter calculation is:
NO-GO Minor Diameter = NO-GO Pitch Diameter - 0.25H
This approach, derived from the relationship between pitch diameter and minor diameter in 60° threads, is widely used in the gauging industry. For example, for a 1/4-20 2A thread, the GO thread ring pitch diameter is 0.2164 inches, leading to a GO minor diameter of 0.1947 inches.
3.4 Unified Pitch Diameter Tables
ASME B1.2 provides comprehensive tables of unified pitch diameters for all standard UN thread sizes and classes. These tables eliminate the need for manual calculation in most production scenarios. The following representative data shows the pitch diameter ranges for various UN thread sizes:
| Nominal Size | TPI | GO Pitch Diameter CL. 2A (in) | NO-GO Pitch Diameter CL. 2A (in) |
|---|---|---|---|
| #0-80 UNF | 80 | 0.0514 | 0.0496 |
| #4-40 UNC | 40 | 0.0950 | 0.0925 |
| #10-24 UNC | 24 | 0.1619 | 0.1586 |
| 1/4-20 UNC | 20 | 0.2164 | 0.2127 |
| 3/8-16 UNC | 16 | 0.3317 | 0.3269 |
| 1/2-13 UNC | 13 | 0.4435 | 0.4376 |
Source: Unified pitch diameter tables per ASME B1.2
4. UN vs. UNR vs. UNJ: Understanding the Critical Differences
ASME B1.1 defines multiple thread forms within the Unified family. While UN, UNR, and UNJ share the same 60° basic profile and pitch diameter limits, they differ significantly in their root radius requirements — a distinction that becomes critically important for gauging.
4.1 UN Thread Form (Basic Unified)
The UN thread form defines the fundamental 60° thread geometry without specific root radius requirements beyond the condition that the root contour should be smoothly blended without sharp corners that could cause stress concentration. The root of an external UN thread has no controlled radius requirement and may be flat or rounded, provided it does not exceed the basic minor diameter.
4.2 UNR Thread Form (Controlled Root Radius)
The UNR thread form adds a specific requirement: external threads must have a controlled, rounded root with a radius between 0.10825P and 0.14434P (approximately 0.125P to 0.167P). The UNR requirement was introduced to improve fatigue resistance by eliminating sharp V-shaped roots that act as stress risers. Internal threads for UNR remain identical to UN internal threads.
ASME B1.2 covers both UN and UNR thread forms in its gauging specifications.
4.3 UNJ Thread Form (Controlled Root Radius for Aerospace)
The UNJ thread form (defined in ASME B1.15) represents the most stringent root radius control within the Unified family. Key characteristics of the UNJ thread form include:
| Feature | UNJ Specification |
|---|---|
| External Thread Root Radius | Controlled radius from 0.15011P to 0.18042P (significantly larger than UNR) |
| Minor Diameter (External) | Increased above ASME B1.1 UN/UNR basic dimensions to accommodate larger root radius |
| Minor Diameter (Internal) | Also increased to provide clearance for the larger external thread root |
| Basic Thread Height | 0.5625H (reduced from the UN basic height of 0.625H) |
| Primary Application | Aerospace, fatigue-critical applications, safety-critical threaded connections |
4.4 Gauging Differences for UNJ Threads
Because UNJ threads have modified minor diameters and a larger root radius, standard UN gauges cannot be used to inspect UNJ threads. Special UNJ thread gauges are manufactured with:
-
Enlarged minor diameters (both GO and NO-GO)
-
Root radius checking capability (often using segmental or roll-type gauges)
-
Compliance with ASME B1.15 gauging requirements
For UNJ external threads, the tolerance class is typically 3A for aerospace applications, while for external Class 2A UNJ threads, dimensions are also provided in ASME B1.15.
4.5 Comparison Summary
| Feature | UN | UNR | UNJ |
|---|---|---|---|
| Root radius requirement (external) | Not controlled (must avoid sharp corners) | 0.10825P to 0.14434P | 0.15011P to 0.18042P |
| Minor diameter (external) | Basic (as per formula) | Basic (as per formula) | Increased above basic |
| Minor diameter (internal) | Basic | Basic | Increased above basic |
| Fatigue resistance | Standard | Improved | Maximum |
| Applicable standard | ASME B1.1 | ASME B1.1 | ASME B1.15 |
| Primary industry | General industrial | General industrial (improved) | Aerospace, defense |
| Can UN gauge be used? | Yes | Yes (UN gauges are acceptable for UNR inspection) | No (special UNJ gauges required) |
4.6 Practical Gauging Implications
For manufacturers and quality control professionals, the key takeaways are:
-
UN and UNR threads — Standard UN thread ring gauges manufactured to ASME B1.2 are acceptable for inspecting UNR external threads, as the pitch diameter limits are identical. Only the root condition is different, which requires separate root radius inspection (typically using optical comparators or specialized root radius gauges).
-
UNJ threads — Require dedicated UNJ thread ring gauges with enlarged minor diameters. Standard UN gauges will produce false rejections because their minor diameters are smaller than UNJ product threads.
-
ASME B1.3M provides screw thread gaging systems for determining dimensional acceptability of UN, UNR, UNJ, and metric M/MJ threads, establishing three system levels (System 21, 22, 23) based on inspection thoroughness.

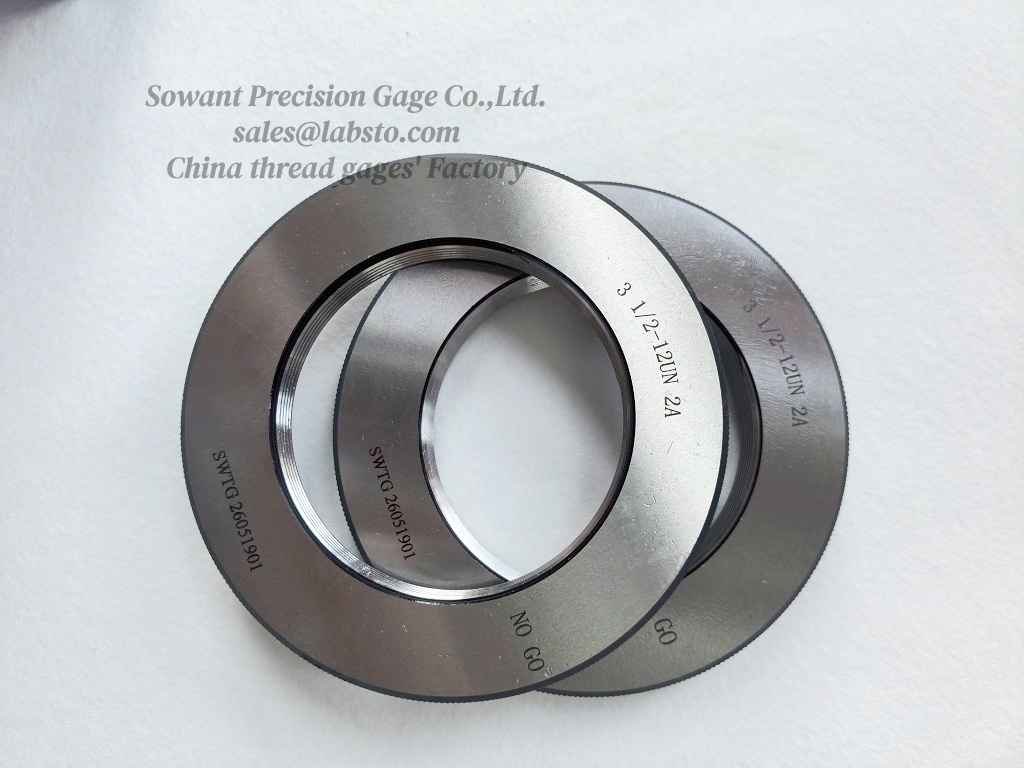

5. Detailed Specifications: The 3-1/2-12 UN-2A Thread Ring Gauge
The 3-1/2-12 UN-2A thread ring gauge serves as an excellent representative example of a constant-pitch UN series gauge. The designation “12 UN” indicates a nominal pitch of 12 threads per inch, which remains constant across a family of nominal diameters from 2-3/8 inches through 6-5/8 inches and beyond, allowing the use of the same pitch for various diameters where coarse or fine series pitches are unsuitable.
5.1 Nominal Designation Interpretation
| Designation | Meaning |
|---|---|
| 3-1/2 | Nominal major diameter = 3.500 inches |
| 12 | Threads per inch (TPI) = 12 |
| UN | Unified constant-pitch thread series |
| 2A | Class 2 — external thread, medium fit (allowance applied) |
5.2 Basic Dimensional Parameter Calculations
First, calculate the basic pitch (P):
P = 1 / n = 1 / 12 = 0.0833333 inches
Next, calculate the fundamental thread parameters:
| Parameter | Calculation | Value (inches) |
|---|---|---|
| Fundamental Triangle Height (H) | H = 0.866025403 × P | 0.07216878 |
| Basic Thread Height (h) | h = 0.541265877 × P | 0.04510549 |
| Basic Pitch Diameter (d₂) | d₂ = D — (5H/8) = 3.5000 — (0.649519 × 0.0833333) | 3.4458734 |
| Basic Minor Diameter (external) | d₁ = D — (5H/4) = 3.5000 — (1.082531754 × 0.0833333) | 3.4097890 |
5.3 3-1/2-12 UN-2A External Product Thread Limits
Based on ASME B1.2 tables, the actual product thread limits for 3-1/2-12 UN-2A are:
| Parameter | Allowance/Tolerance | Value (inches) | Product Limit |
|---|---|---|---|
| Major Diameter (max) | Basic | 3.5000 | Maximum = 3.5000 |
| Major Diameter (min) | Per tolerance tables | 3.4981/3.4867 | Minimum = 3.4867 |
| Pitch Diameter (max) | Basic - allowance | 3.4440 | Maximum = 3.4440 |
| Pitch Diameter (min) | Max - tolerance | 3.4376 | Minimum = 3.4376 |
*Source: Unified thread pitch diameter tables for 3-1/2-12 UN-2A*
The major diameter range (3.4981 to 3.4867 inches) indicates the acceptable external thread major diameter limits as specified in applicable unified thread standards.
5.4 3-1/2-12 UN-2A Working Thread Ring Gauge Specifications
Based on the product thread limits above and applying appropriate gauge-maker’s tolerances per ASME B1.2, the working thread ring gauge dimensions are:
| Parameter | GO Thread Ring Gauge | NO-GO Thread Ring Gauge |
|---|---|---|
| Function | Verifies maximum product pitch diameter | Verifies minimum product pitch diameter |
| Pitch Diameter Target | Slightly less than 3.4440 (max product PD) | Slightly greater than 3.4376 (min product PD) |
| Minor Diameter | Calculated from GO PD using minor diameter formula | Calculated from NO-GO PD using minor diameter formula |
| Tolerance Application | Pitch diameter tolerance applied in the negative direction | Pitch diameter tolerance applied in the positive direction |
5.5 Physical Gauge Specifications
| Specification | Detail |
|---|---|
| Gauge Type | Thread Ring Gauge (GO/NO-GO, separate rings or double-ended) |
| Thread Form | 60° UN thread form per ASME B1.1 |
| Tolerance Class | 2A |
| Gauging System | Per ASME B1.2-1983 (R2017) |
| Material | High-carbon, chromium-alloy tool steel (e.g., AISI O1 or equivalent) |
| Hardness | 58–62 HRC (heat-treated and stabilized for wear resistance) |
| Surface Finish | Precision ground, ≤0.2 μm Ra on thread flanks and major diameter |
| Adjustability | Provided with split-body construction with adjusting screws (for adjustable type) |
| Marking | Clearly laser-etched with full designation including size, TPI, series, class, and “GO” or “NO-GO” |
| Certification | Supplied with calibration certificate traceable to NIST or international standards |
5.6 Comparison with Adjacent Sizes in the 12 UN Series
The 12 UN constant-pitch series includes the following nominal diameters, all sharing the same 12 TPI:
| Nominal Size | Major Diameter (in) | Pitch Diameter Max (in) | Pitch Diameter Min (in) |
|---|---|---|---|
| 2-3/8-12 UN-2A | 2.3750 | 2.3191 | 2.3128 |
| 2-7/8-12 UN-2A | 2.8750 | 2.8191 | 2.8127 |
| 3-1/2-12 UN-2A | 3.5000 | 3.4440 | 3.4376 |
| 4-1/2-12 UN-2A | 4.5000 | 4.4439 | 4.4374 |
| 5-1/2-12 UN-2A | 5.5000 | 5.4439 | 5.4372 |
*Source: Unified thread dimensions for 12 UN constant-pitch series*
6. Proper Use of UN Thread Ring Gauges
Correct usage of UN thread ring gauges is essential to ensure accurate inspection results and to extend gauge service life.
6.1 Pre-Gauging Preparation
| Step | Action |
|---|---|
| 1 | Verify that the gauge marking matches the product thread specification (size, TPI, UN series, class) |
| 2 | Inspect the gauge for any visible damage, nicks, or burrs before use |
| 3 | Clean the product thread thoroughly to remove chips, oil, dirt, and burrs — thread ring gauges are not work dies, and contamination accelerates wear |
| 4 | Clean the ring gauge with solvent or air, then lightly coat with a rust preventative/gage preservative |
| 5 | If an adjustable ring gauge, verify that the adjustment locking screws are properly tightened |
6.2 GO and NO-GO Gauging Rules
For an external UN thread (e.g., 3-1/2-12 UN-2A screw or bolt) being inspected with a UN thread ring gauge set, the following acceptance criteria apply:
| Gauge Type | Acceptance Criteria |
|---|---|
| GO Thread Ring Gauge | Must screw smoothly onto the externally threaded part by hand, for the full length of the thread, without binding or excessive force |
| NO-GO Thread Ring Gauge | Must NOT screw onto the threaded part more than 2 to 3 turns (maximum 3 turns) under normal hand force |
If the GO gauge fails to engage fully or binds prematurely, the part is considered non-conforming (too large). If the NO-GO gauge screws on more than the allowable number of turns, the part is also non-conforming (too small).
6.3 Best Practices and Gauge Maintenance
| Practice | Recommendation |
|---|---|
| Force application | Use only hand force — never use tools such as pliers, wrenches, or mallets to force a ring gauge onto a thread. If the gauge starts to bind, stop immediately |
| Gauging orientation | Hold the external threaded part in an upright position and lower the ring gauge over it, or hold the gauge stationary and screw the part into it |
| Lubrication | Light lubrication (such as a thin machine oil) may be applied to facilitate smooth gauging, but ensure that the lubricant does not trap contaminants |
| Frequency of use | For high-volume production, inspect and clean the gauge after every 500–1000 uses; for lower-volume applications, clean before each use |
| Adjustable ring gauges | Periodically verify adjustment using a calibration master/setting plug. The setting plug should screw through the full length of the GO gauge with minimum friction and should NOT enter the NO-GO gauge beyond the allowable number of turns |
| Wear monitoring | Regularly check the gauge for signs of wear using setting plugs. When wear exceeds allowable limits, the gauge should be reconditioned or replaced |
6.4 Common Thread Defects Detected by Gauging
| Symptom | Possible Cause |
|---|---|
| GO gauge will not start | Major diameter too large; thread is cross-threaded; burrs or debris present |
| GO gauge starts but then binds | Tapered thread; lead error; flank angle error; damaged threads |
| GO gauge screws on with excessive play | Pitch diameter too small (undersized thread) |
| NO-GO gauge screws on fully | Pitch diameter too large (oversized thread); excessive wear on thread flanks |
| NO-GO gauge does not start (but GO passes) | Acceptable part — this is the desired outcome |
7. ASME B1.2 Gauging Systems
ASME B1.2 incorporates the gauging systems defined in ASME B1.3M, which provide three levels of inspection thoroughness:
7.1 System 21 (Basic Functional)
-
Uses GO and NO-GO gauges only
-
Verifies functional size of the thread
-
Suitable for most general-purpose applications
7.2 System 22 (Modified Functional)
-
Adds checks for individual thread elements (such as lead, flank angle, taper)
-
Suitable for applications requiring higher reliability
7.3 System 23 (Complete Inspection)
-
Full inspection of all thread elements
-
Includes specialized instruments for lead, angle, and root radius measurement
-
Required for UNJ threads and other safety-critical applications
For most Class 2A applications, System 21 inspection using GO/NO-GO thread ring gauges is considered sufficient for dimensional acceptability.
8. Sowant Precision Gage — ASME B1.2 UN Thread Ring Gauge Manufacturer
8.1 Company Overview
Sowant Precision Gage Co., Ltd. (苏州斯文克精密测量设备有限公司) , founded in 2009 and headquartered in the Wusong River Business District in Suzhou, China, has established itself as a premier full-service gage company offering a complete line of precision thread plug and ring gauges. The company has evolved from its founding in the Suzhou Wuzhong National Innovation Park into a trusted partner for precision measurement solutions across industrial, aerospace, and oil and gas sectors.
Sowant Precision Gage specializes in the manufacturing of threaded and plain cylindrical plug gauges in a variety of materials, including chrome-plated, tin-coated, carbide, ceramic, and other specialized materials. The company also manufactures special gauges including pre-plates, multiple-start threads, special leads, acme thread gauges, API thread gauges, buttress thread gauges, spline gauges, and custom gauges to print.
8.2 ASME B1.2 UN Thread Gauge Product Portfolio
Sowant Precision Gage manufactures and supplies a comprehensive range of UN thread gauges meeting ASME B1.2 specifications:
| Gauge Type | Description | TPI Range | Diameter Range |
|---|---|---|---|
| UN Thread Ring Gauges (GO/NO-GO) | For inspecting external UN, UNR threads; available in Classes 1A, 2A, 3A | 4 to 80 TPI | #0 through 6-5/8 inches and larger |
| UN Thread Plug Gauges (GO/NO-GO) | For inspecting internal UN, UNR threads; available in Classes 1B, 2B, 3B | 4 to 80 TPI | #0 through 6-5/8 inches and larger |
| UN Setting Plugs | For calibrating and verifying adjustable thread ring gauges | All standard TPI | All standard sizes |
| UNJ Thread Gauges | For aerospace UNJ thread inspection (enlarged minor diameters) | Standard UNJ TPI | #0 through 6-5/8 inches |
| UNS Thread Gauges | For special UN series threads (non-standard pitch diameters) | Custom per print | Custom per requirement |
8.3 The 3-1/2-12 UN-2A Thread Ring Gauge — CNC Ground Precision
Sowant Precision Gage manufactures the 3-1/2-12 UN-2A thread ring gauge (GO/NO-GO set) with exceptional precision, utilizing advanced CNC thread grinding technology. All parameters are verified to be fully compliant with ASME B1.2 specifications.
Key Specifications of the 3-1/2-12 UN-2A gauge:
-
Nominal major diameter: 3.5000 inches
-
Threads per inch: 12 (constant-pitch UN series)
-
Class of fit: 2A (medium fit, most commonly specified for external UN threads)
-
GO pitch diameter: As per ASME B1.2 tables, set below the maximum product pitch diameter (3.4440 inches maximum)
-
NO-GO pitch diameter: As per ASME B1.2 tables, set above the minimum product pitch diameter (3.4376 inches minimum)
-
Gauge material: Premium-grade tool steel, heat-treated to 58–62 HRC
-
Surface finish: Precision ground with ≤0.2 μm Ra
-
Certification: Supplied with calibration certificate traceable to international standards
8.4 CNC Thread Grinding: The Sowant Advantage
Sowant Precision Gage distinguishes itself through the use of CNC thread grinding machines for the production of UN thread ring gauges. Compared to conventional grinding methods, CNC thread grinding offers:
| Advantage | Benefit |
|---|---|
| Unmatched precision | CNC-controlled grinding cycles ensure consistent, repeatable thread profiles within micron-level tolerances |
| Superior surface finish | Precision ground thread flanks achieve extremely low Ra values, ensuring smooth gauging action and reduced wear on both the gauge and product threads |
| Full parameter compliance | All critical dimensions — including pitch diameter, major diameter, minor diameter, lead, and flank angle — are verified and held within ASME B1.2 tolerances |
| Reduced manufacturing variation | Automated grinding cycles eliminate operator-induced variation, ensuring that every gauge meets the same exacting standards |
| Quick turnaround | CNC programming flexibility enables rapid production of standard sizes (such as 3-1/2-12 UN-2A) as well as custom UNS thread gauges |
Sowant Precision Gauge’s SWTG brand of thread ring gauges is meticulously engineered to meet and exceed the rigorous demands of international thread standards.
8.5 Quality Assurance and Calibration
Every UN thread ring gauge manufactured by Sowant Precision Gage undergoes rigorous quality control before shipment:
-
Master gauge verification — All working GO and NO-GO ring gauges are inspected against master/calibration grade setting plugs traceable to national and international standards
-
Hardness testing — Verification of 58–62 HRC across the gauge body and thread flanks, ensuring dimensional stability and wear resistance
-
Surface finish measurement — Thread flanks and major diameters are measured to confirm ≤0.2 μm Ra
-
Full dimensional inspection — Using precision thread measuring machines, all critical parameters (pitch diameter, major diameter, minor diameter, lead, flank angle, taper) are verified against ASME B1.2 requirements
-
Calibration certificate — Provided with every gauge, traceable to recognized standards (NIST, ISO, DIN, GB)
Sowant Precision Gage collaborates with recognized testing organizations including Aerospace Metrology and Huasu Inspection to provide repair and calibration services for adjustable thread ring gauges and plug gauges.
8.6 Strategic Partnerships and Global Capabilities
Sowant Precision Gage serves as the official authorized distributor for Flebar (USA) in China, providing full sales and technical support for Flexbar’s complete product line, including UNJ aerospace gauges and adjustable AGD thread ring gauges.
Additionally, Sowant partners with leading international brands including:
This dual capability — manufacturing high-quality China-made UN thread gauges while distributing top-tier international brands — positions Sowant as a uniquely trusted partner for customers worldwide.
8.7 Why Choose Sowant Precision Gage for 3-1/2-12 UN-2A Thread Ring Gauges?
| Feature | Benefit |
|---|---|
| CNC thread grinding | Superior precision, consistency, and surface finish |
| ASME B1.2 full compliance | Gauges manufactured to exact standard requirements, not approximations |
| All parameters verified | Pitch diameter, major diameter, minor diameter, lead, flank angle, taper — every element inspected |
| 3-1/2-12 UN-2A available | Standard size in stock, ready for prompt shipment |
| Short delivery lead times | Reduced manufacturing cycles due to CNC production capabilities |
| Complete UN series coverage | From #0 through 6-5/8 inches and larger; all TPI series available |
| Multiple tolerance classes | 1A, 2A, 3A (external); 1B, 2B, 3B (internal) |
| Traceable calibration | Every gauge certified and traceable |
| Material options | Tool steel, carbide, ceramic, chrome-plated, tin-coated |
| Technical support | Engineering assistance for custom and non-standard UNS thread requirements |
8.8 Contact Information
Sowant Precision Gage Co., Ltd. welcomes inquiries from customers worldwide. For pricing, availability, technical specifications, and custom manufacturing requests — including the 3-1/2-12 UN-2A thread ring gauge — please contact:
SOWANT PRECISION GAGE CO., LTD.
Wusong River Business District, Suzhou, China
Email: swttool@yeah.net
Phone: +86 512 65012756
Thread Gages Manufacture · UN Thread Gauges · ASME B1.2 Thread Gages · UNJ Aerospace Gauges
9. Conclusion
The ASME B1.2 standard provides the essential framework for the design, manufacture, and use of UN series thread ring gauges — precision instruments used to verify the dimensional acceptability of external Unified inch screw threads. With its 60° thread profile, three tolerance classes (1A, 2A, 3A), and comprehensive gauging systems (Systems 21, 22, 23), ASME B1.2 ensures that UN thread connections perform reliably across general industrial, aerospace, and safety-critical applications.
The 3-1/2-12 UN-2A thread ring gauge exemplifies the precision required in constant-pitch UN series gauging. With a 3.5000 inch major diameter, 12 threads per inch, Class 2A medium fit tolerance, and pitch diameter limits between 3.4376 inches (minimum product) and 3.4440 inches (maximum product), this gauge represents a standard size commonly specified across multiple industrial sectors.
Understanding the critical differences between UN, UNR, and UNJ thread forms is equally important for selecting the correct gauging system. While UN and UNR external threads can be inspected with standard UN gauges (with separate root radius verification for UNR), UNJ threads require dedicated UNJ gauges with enlarged minor diameters to accommodate the larger controlled root radius (0.15011P to 0.18042P) defined in ASME B1.15.
Sowant Precision Gage Co., Ltd. stands as a premier manufacturer and supplier of ASME B1.2 UN thread ring gauges, including the 3-1/2-12 UN-2A thread ring gauge. With advanced CNC thread grinding machines, rigorous quality assurance, traceable calibration, and a comprehensive UN thread gauge portfolio from #0 through 6-5/8 inches — including UN, UNR, UNJ, and UNS variants — Sowant delivers the precision, reliability, and responsiveness that demanding manufacturing and quality control applications require.
For inquiries regarding the 3-1/2-12 UN-2A thread ring gauge or any other UN thread gauge requirements, please contact Sowant Precision Gage today.
*Disclaimer: Product specifications, dimensional data, and tolerance values presented in this article are based on ASME B1.1, ASME B1.2-1983 (R2017), ASME B1.15, and publicly available technical data. Specifications are subject to change without notice. Customers are advised to confirm specific requirements with Sowant Precision Gage prior to ordering.*
