12 1/4-4 ACME-3G

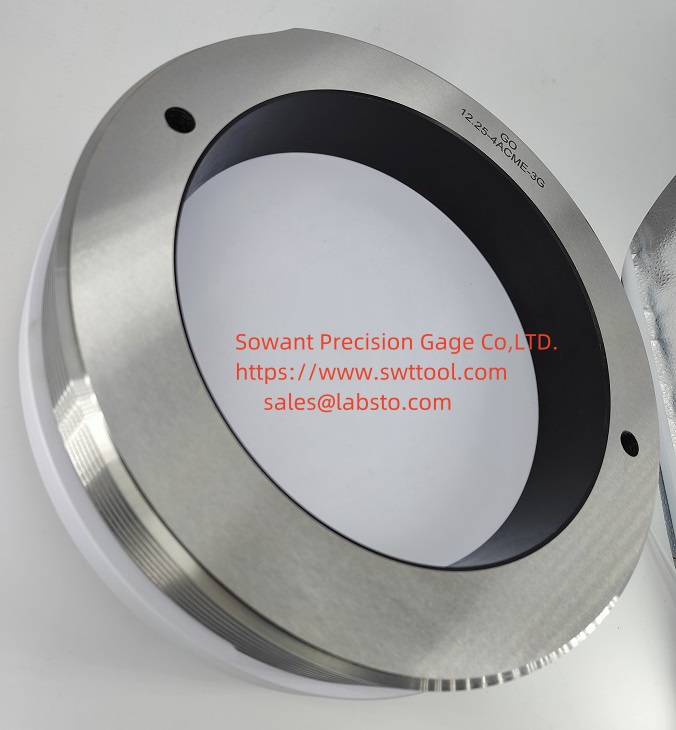

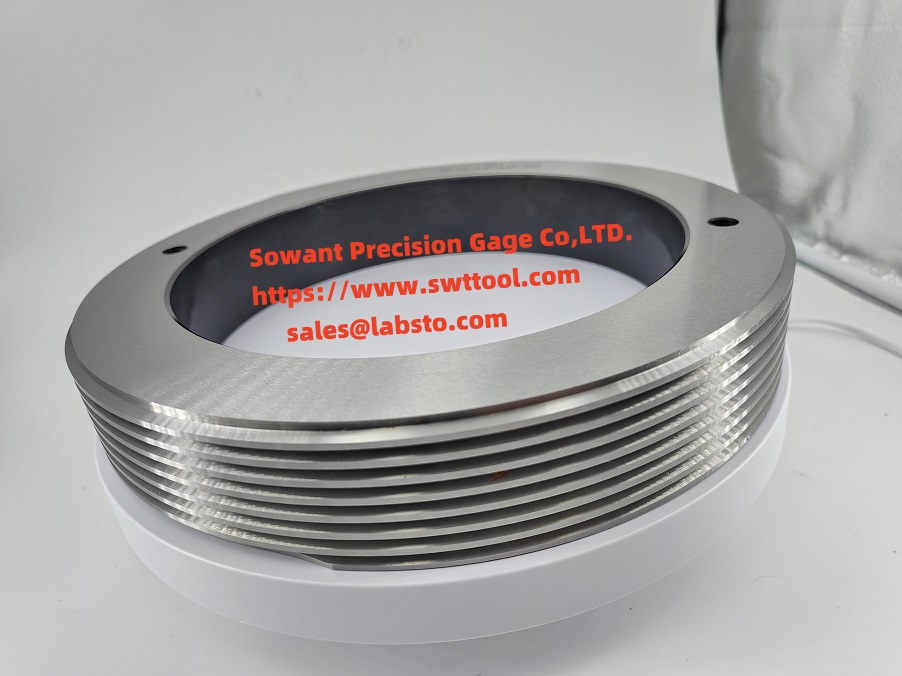

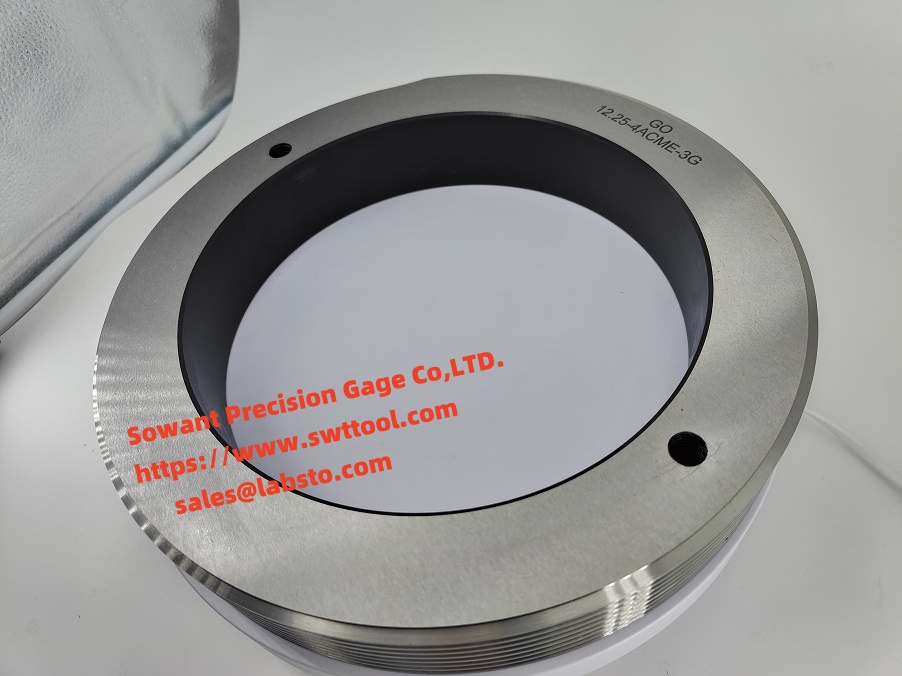

This 12 1/4-4 ACME-3G Go No Go Thread Plug Gage Set and ACME thread gages from Sowant Precision gages is designed per ASME B1.5 to gage internal threaded product.
Gages an internal threaded product; 3 classes of fit – 2G, 3G, 4G; Centralizing ACME threads classes of fit:: 2C, 3C, 4C;
ACME threads have courser threads with a larger pitch and a narrower angle than standard v-threads,
Thread Plug Gauge: ACME and STUB ACME Gauge dimensions for Acme threads are as per ASME B1.5 and Stub Acme as per ANSI/ASME B1.8.
