China Made Air Gauge

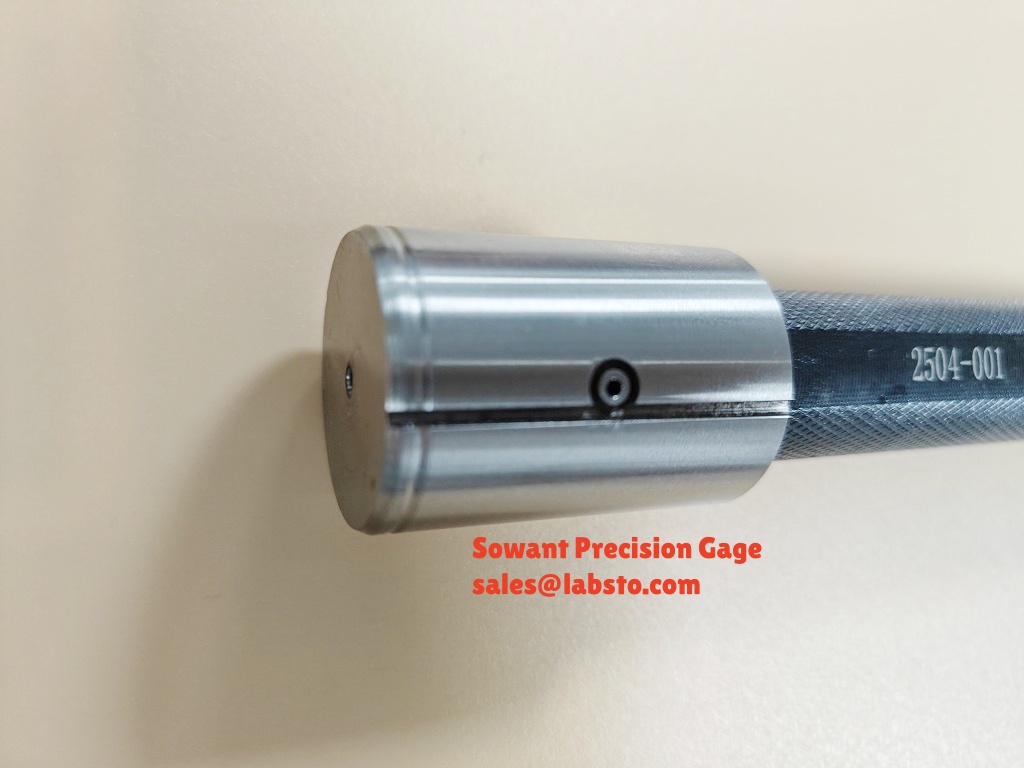

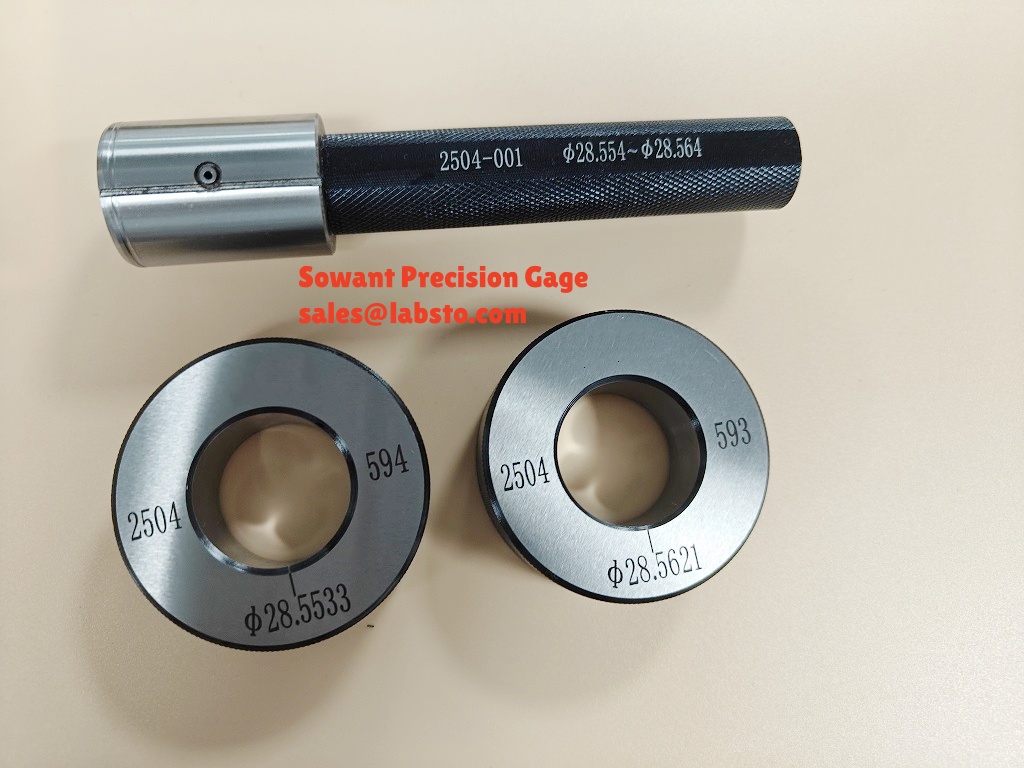

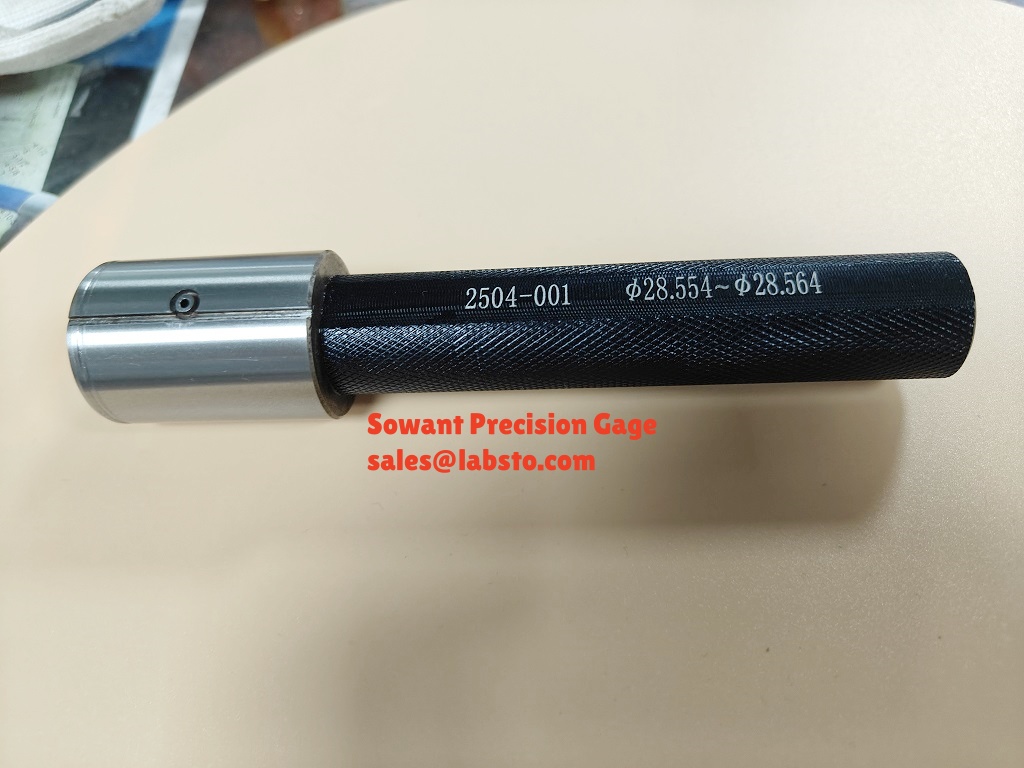

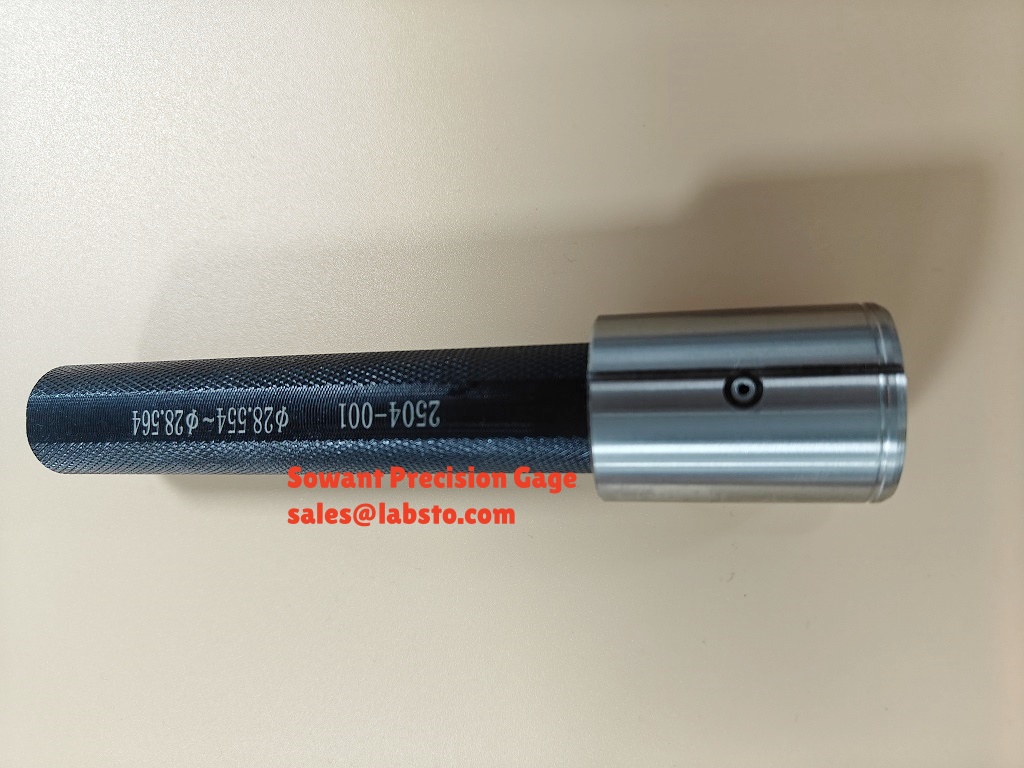

China Made Air plug Gauge,China Made Air ring Gauge with MAX/MIN master plug/rings.

Precision Measurement Solutions: Air Plug Gages, Air Ring Gages, and Thread Gauges by Sowant Precision Gage

In modern manufacturing, ensuring dimensional accuracy and geometric conformity of components is critical. Pneumatic measurement tools, such as air plug gages and air ring gages, have emerged as indispensable solutions for rapid, non-contact quality control. Sowant Precision Gage specializes in providing fully customizable pneumatic gauges alongside a comprehensive range of thread gauges, including ACME, stub ACME, and TR thread types, to meet diverse industrial needs.

Air Plug Gages: Principles and Applications

Air plug gages operate on pneumatic measurement principles, utilizing compressed air to assess internal dimensions such as bore diameters or cylindrical hole geometries. These tools compare the air pressure differential between a reference standard and the test piece, translating it into precise dimensional readings. For instance, when measuring a bore, the air plug is inserted, and the resulting pressure change—caused by airflow restriction—indicates deviations from the nominal size. This method achieves micrometer-level accuracy without physical contact, preserving delicate surfaces.

Key advantages of air plug gages include:

1. Speed and Simplicity: Measurements are completed in seconds, requiring minimal operator training.

2. Non-Contact Operation: Eliminates wear on both the gauge and the workpiece, ideal for polished or soft materials.

3. Shop Floor Compatibility: Functions reliably in non-climate-controlled environments, unlike Coordinate Measuring Machines (CMMs).

Sowant Precision Gage offers non-standard air plug gages tailored to unique specifications, such as complex internal profiles or specialized materials, ensuring versatility across automotive, aerospace, and medical industries.

Air Ring Gages: External Dimension Control

Air ring gages are designed for measuring external diameters of shafts, pins, or cylindrical components. Similar to air plug gages, they employ airflow dynamics to detect dimensional variations. The test piece is positioned within the ring gauge, and the air pressure difference reflects deviations in outer diameter. This method is particularly effective for high-volume production lines requiring rapid inspection.

Applications include:

• Shaft and Bearing Inspection: Ensuring compliance with tight tolerance limits.

• Tube and Cylinder Quality Control: Detecting ovality or surface defects.

Sowant’s custom air ring gages accommodate unconventional geometries, such as tapered or stepped shafts, providing manufacturers with adaptable solutions for precision measurement.

Sowant Precision Gage: Customization and Expertise

Sowant Precision Gage distinguishes itself through:

1. Full Customization: From material selection (e.g., carbide for wear resistance) to sensor integration for automated feedback.

2. Comprehensive Range: Standard and non-standard designs for both air plug and ring gages.

3. Technical Support: Assistance with calibration, maintenance, and integration into production workflows.

Complementary Product Line: Thread Gauges

In addition to pneumatic tools, Sowant produces high-precision thread gauges for verifying thread conformity:

• ACME and Stub ACME Thread Gauges: Used in power transmission systems (e.g., lead screws) to ensure load-bearing efficiency.

• TR (Trapezoidal Roller) Thread Gauges: Ideal for heavy machinery requiring robust thread profiles.

These gauges are manufactured to international standards, guaranteeing compatibility and reliability in global supply chains.

Conclusion

Air plug and ring gages represent the pinnacle of non-contact, high-speed dimensional measurement. Paired with Sowant Precision Gage’s expertise in customization and complementary thread gauge offerings, manufacturers gain a holistic toolkit for quality assurance. By leveraging pneumatic technology and tailored designs, industries can achieve stringent tolerances while optimizing production efficiency.

For inquiries about custom solutions or technical specifications, visit Sowant Precision Gage’s official platform to explore their full product portfolio.
