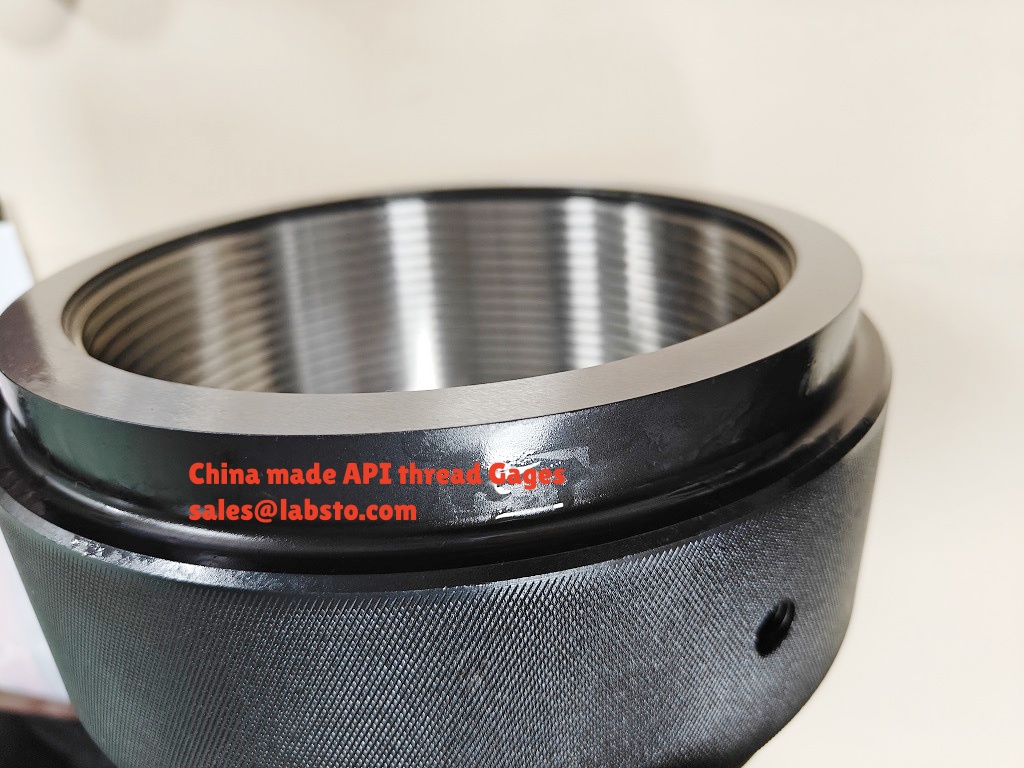

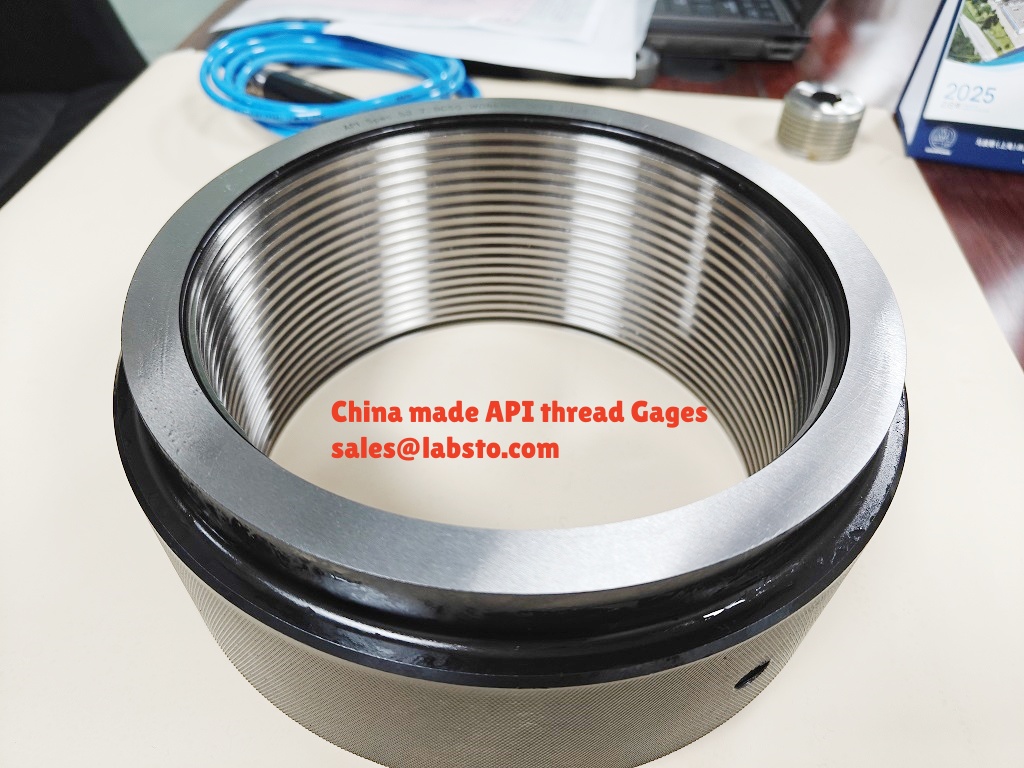

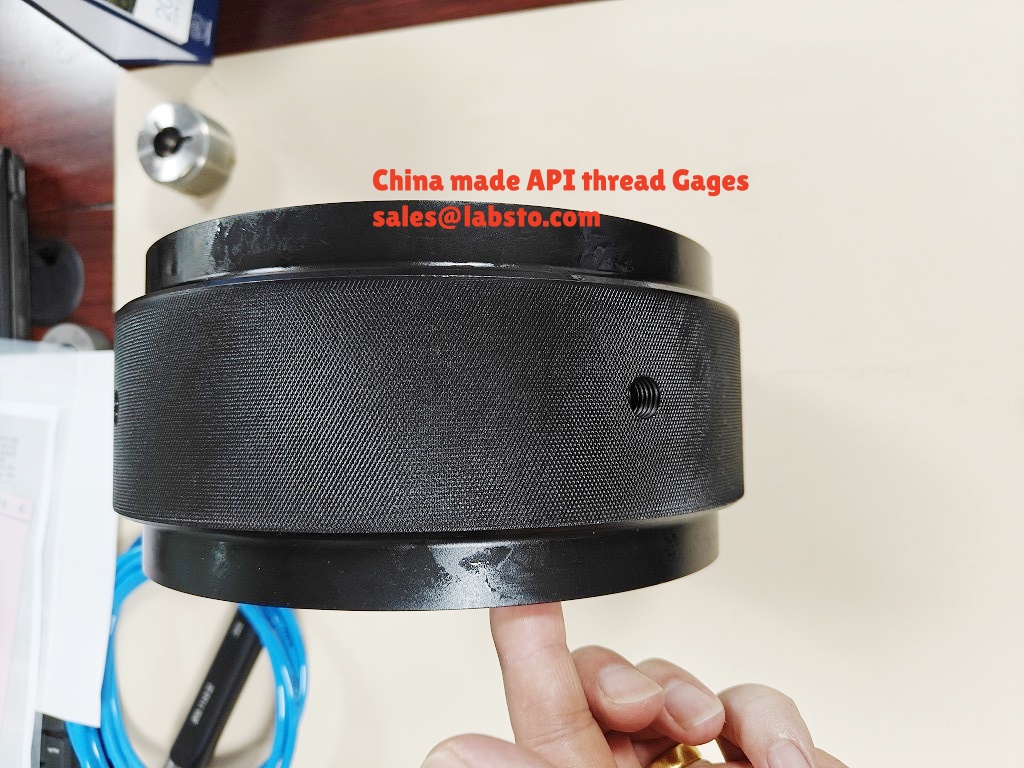

7" BCSG Thread Ring Gage

7" BCSG Thread Ring Gage and 7" BCSG Thread Plug Gage made In China per API 5B

Product Introduction: 7” BCSG THREAD RING GAGE

Material: Tool Steel
Hardness: 58-62 HRC
Standard: API 5B
Manufacturer: Sowant Precision Gage

Product Overview

The 7” BCSG Thread Ring Gage is a precision inspection tool engineered for verifying the dimensional accuracy of threaded connections in critical applications. Manufactured from high-grade tool steel with a hardness range of 58-62 HRC, this gage guarantees exceptional durability and wear resistance, ensuring reliable performance in harsh industrial environments. Compliant with the API 5B standard, it is specifically designed for inspecting threaded casings, pipes, and couplings used in the oil, gas, and petrochemical industries.

Sowant Precision Gage combines advanced CNC machining and precision grinding to deliver gages that meet stringent international specifications. The 7” BCSG model features a robust design tailored for high-volume quality control processes, making it indispensable for manufacturers and inspection labs requiring uncompromising accuracy.

Key Specifications

• Thread Type: API 5B (Buttress Thread)

• Size: 7” (Nominal Diameter)

• Tolerance Class: API 5B-compliant

• Surface Finish: Precision-ground for smooth engagement and minimal wear

• Application: Inspection of oilfield casing threads, drilling equipment, and heavy-duty couplings.

Material & Manufacturing

Crafted from premium tool steel, the gage undergoes rigorous heat treatment to achieve a uniform hardness of 58-62 HRC, ensuring resistance to deformation and prolonged service life. The manufacturing process adheres to API 5B requirements, with tolerances maintained within ±0.0003 inches for critical thread dimensions.

Applications

• Quality assurance for API 5B-compliant threaded casings and pipes.

• Calibration of threading machines in oilfield equipment production.

• Field inspection of drilling components to prevent leaks and failures.

Sowant Precision Gage: Your Trusted Partner

As a leading supplier of precision measurement tools, we offer:

1. Full Range of Mitutoyo Products: Authorized distributor of Japanese Mitutoyo’s cutting-edge metrology instruments.

2. Global Brand Partnerships: Exclusive agent for TESA, TRIMOS, SYLVAC, and MAHR, providing premium European measuring solutions.

3. Specialized Thread Gage Production:

   • ACME & Stub ACME Thread Gages: For trapezoidal thread verification in machinery and aerospace.

   • TR (Trapezoidal) Thread Gages: Compliant with DIN 103 and ISO standards.

   • Custom designs for non-standard threads and applications.

Why Choose Us?

• Expertise: Over 20 years of experience in thread gage manufacturing and calibration.

• Quality Assurance: All products undergo ISO-certified inspection processes.

• Fast Lead Times: Standard production within 3-4 weeks, with expedited options for urgent needs.

• Global Support: Technical consultation, calibration services, and after-sales support worldwide.

What Are API 5B Thread Gauges?

API 5B thread gauges are precision instruments designed to check and measure the threads of casing, tubing, and line pipes according to the specifications set out in API 5B.

The gauges ensure that the threads meet the dimensional requirements to provide a secure and leak-proof connection.

API 5B is a specification developed by the American Petroleum Institute (API) that covers threading, gauging, and inspection of casing, tubing, and line pipe threads used in the oil and gas industry.

The purpose of these gauges is to ensure the compatibility, interchangeability, and integrity of threaded connections in pipelines and drilling systems.
