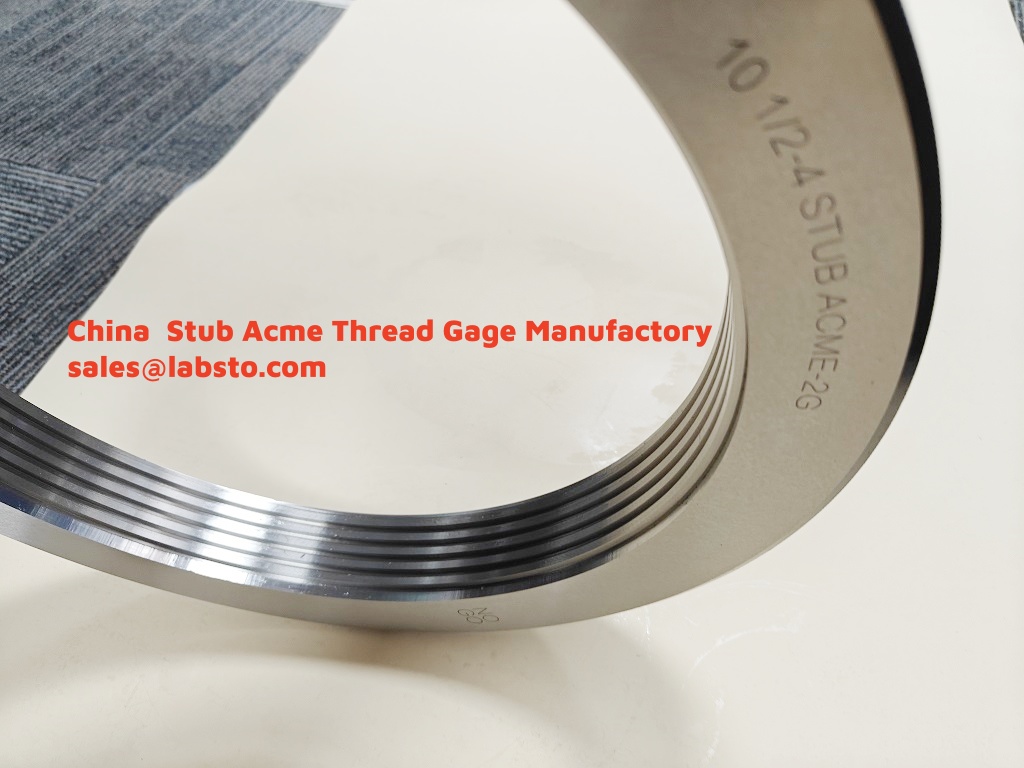

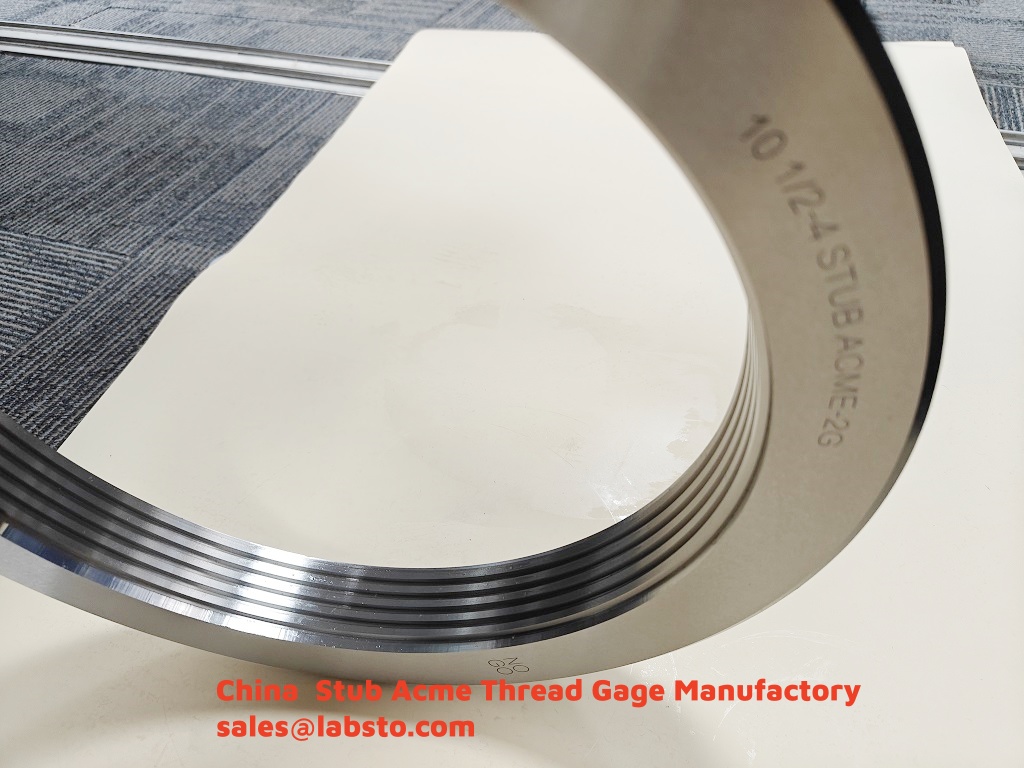

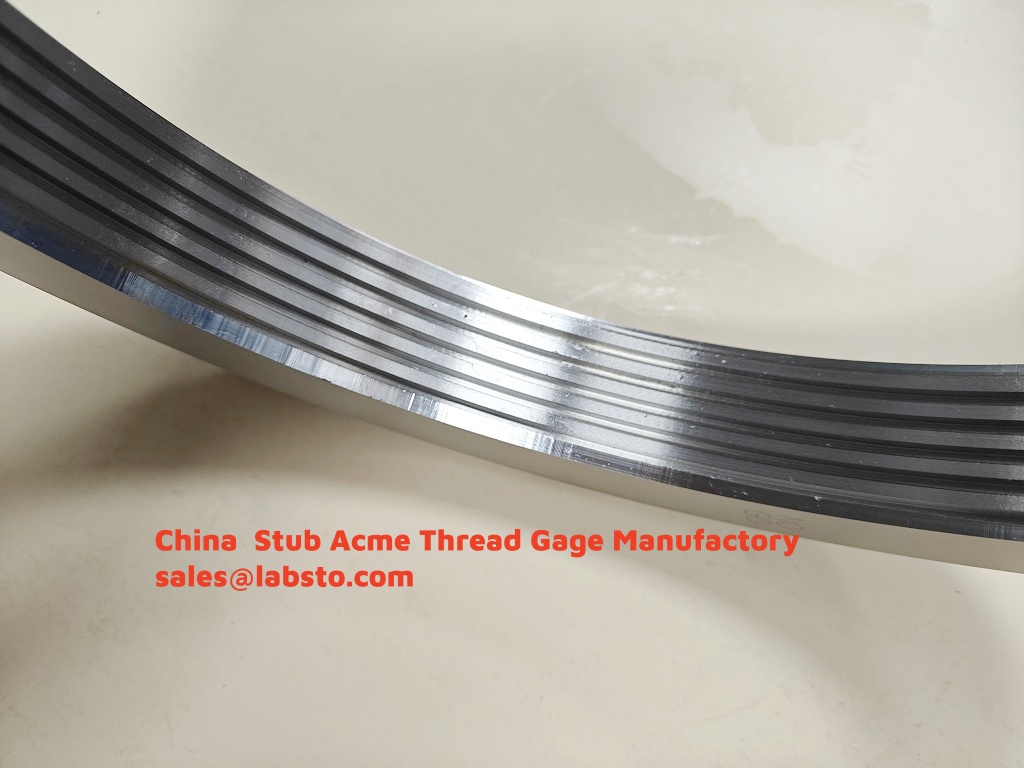

10 1/2-4 STUB ACME-2G

China Stub Acme thread ring gages manufactory ,10 1/2-4 STUB ACME-2G thread ring gages made in China.

All thread ring gages made by CNC Thread Grinding machine, all parameter in tolerance include lead,angle,pitch diameter,minor diameter,major diameters.
ꄴPrevious： 10 1/2-4 STUB ACME-2G PLUG GAGE
ꄲNext： 6 1/2-4 ACME PLUG GAGE

China Stub Acme thread ring gages manufactory ,10 1/2-4 STUB ACME-2G thread ring gages made in China.





The 10 1/2-4 STUB ACME-2G thread ring gauge is a precision measurement tool designed for inspecting external threads conforming to the STUB ACME (American National Standard Short Tooth Acme) specification. Characterized by a 29° thread angle and reduced tooth height, STUB ACME threads are ideal for applications with limited space, offering higher threads per inch (TPI) and enhanced mechanical efficiency.

Key Features of 10 1/2-4 STUB ACME-2G:

  • Nominal Diameter: 10.5 inches

  • Threads Per Inch (TPI): 4

  • Tolerance Class: 2G (indicating a medium-fit internal thread)

  • Material: High-grade tool steel or carbide for durability and wear resistance.

  • Application: Commonly used in aerospace, oil and gas, and heavy machinery where compact design and high load capacity are critical.

30 STUB ACME Thread Ring Gauge Models
Based on industry standards and manufacturer specifications, below is a list of common STUB ACME thread ring gauge models:

  1. 5 1/4-16 STUB ACME-2G

  2. 6 5/16-14 STUB ACME-2G

  3. 6 3/8-12 STUB ACME-2G

  4. 6 1/2-10 STUB ACME-2G

  5. 8 5/8-8 STUB ACME-2G

  6. 8 3/4-6 STUB ACME-2G

  7. 8 7/8-6 STUB ACME-2G

  8. 10-5 STUB ACME-2G

  9. 10 1/8-5 STUB ACME-2G

  10. 10 1/4-5 STUB ACME-2G

  11. 10 3/8-4 STUB ACME-2G

  12. 12 1/2-4 STUB ACME-2G

  13. 12 3/4-4 STUB ACME-2G

  14. 12-4 STUB ACME-2G

  15. 12 1/2-4 STUB ACME-2G

  16. 3-4 STUB ACME-2G

  17. 3 1/2-4 STUB ACME-2G

  18. 4-4 STUB ACME-2G

  19. 4 1/2-4 STUB ACME-2G

  20. 5-4 STUB ACME-2G

  21. 5 1/2-4 STUB ACME-2G

  22. 6-4 STUB ACME-2G

  23. 6 1/2-4 STUB ACME-2G

  24. 7-4 STUB ACME-2G

  25. 7 1/2-4 STUB ACME-2G

  26. 8-4 STUB ACME-2G

  27. 8 1/2-4 STUB ACME-2G

  28. 9-4 STUB ACME-2G

  29. 9 1/2-4 STUB ACME-2G

  30. 10 1/2-4 STUB ACME-2G

Note: Custom specifications, including non-standard diameters and TPI combinations, are also available upon request.

Sowant Precision: Your Trusted Partner for STUB ACME Thread Ring Gauges
Sowant Precision specializes in the rapid manufacturing of high-precision STUB ACME thread ring gauges, offering competitive pricing and lead times as short as3-4 weeks. Key advantages include:

  1. Customization: Ability to produce gauges for any diameter (0.75–30 inches) and TPI configuration.

  2. Quality Assurance: Compliance with ANSI B1.8 and ISO standards, ensuring accuracy within ±0.003 mm.

  3. Material Options: Tool steel, carbide, or hardened stainless steel for extended service life.

  4. Global Logistics: Efficient shipping to North America, Europe, and Asia.

For inquiries or custom orders, contact Sowant Precision to leverage their expertise in metrology and fast-turnaround solutions.
