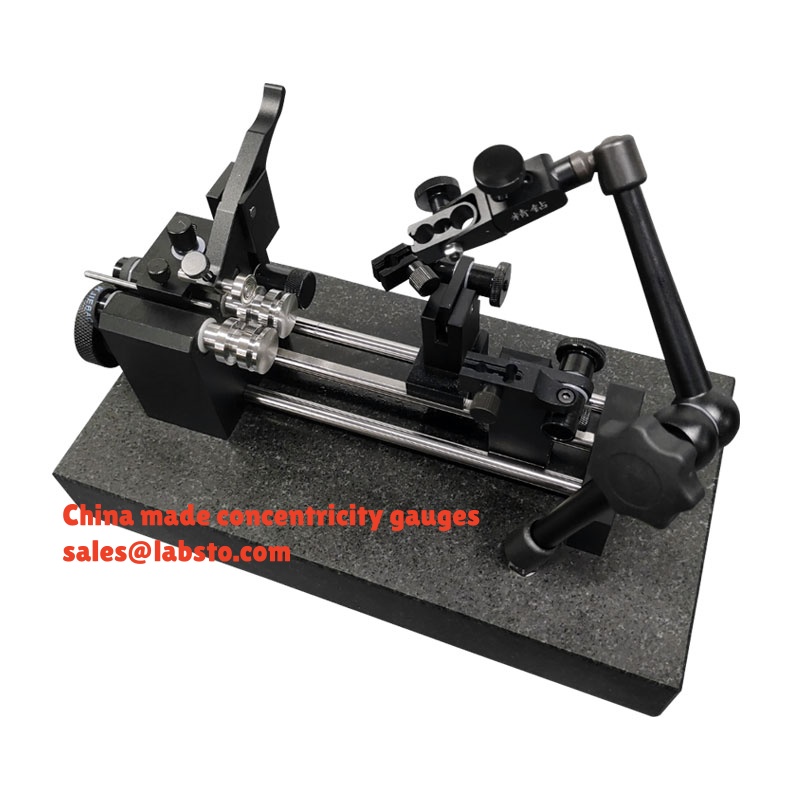

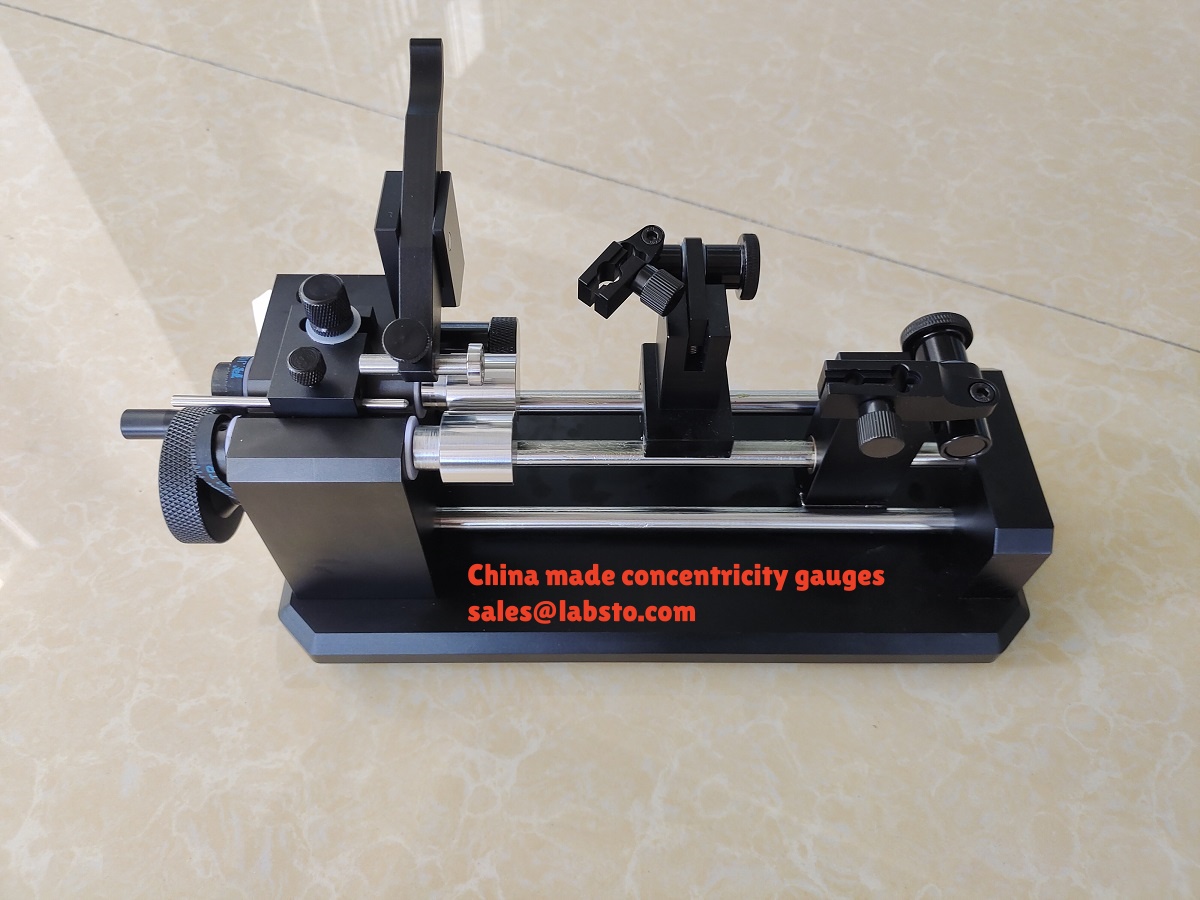

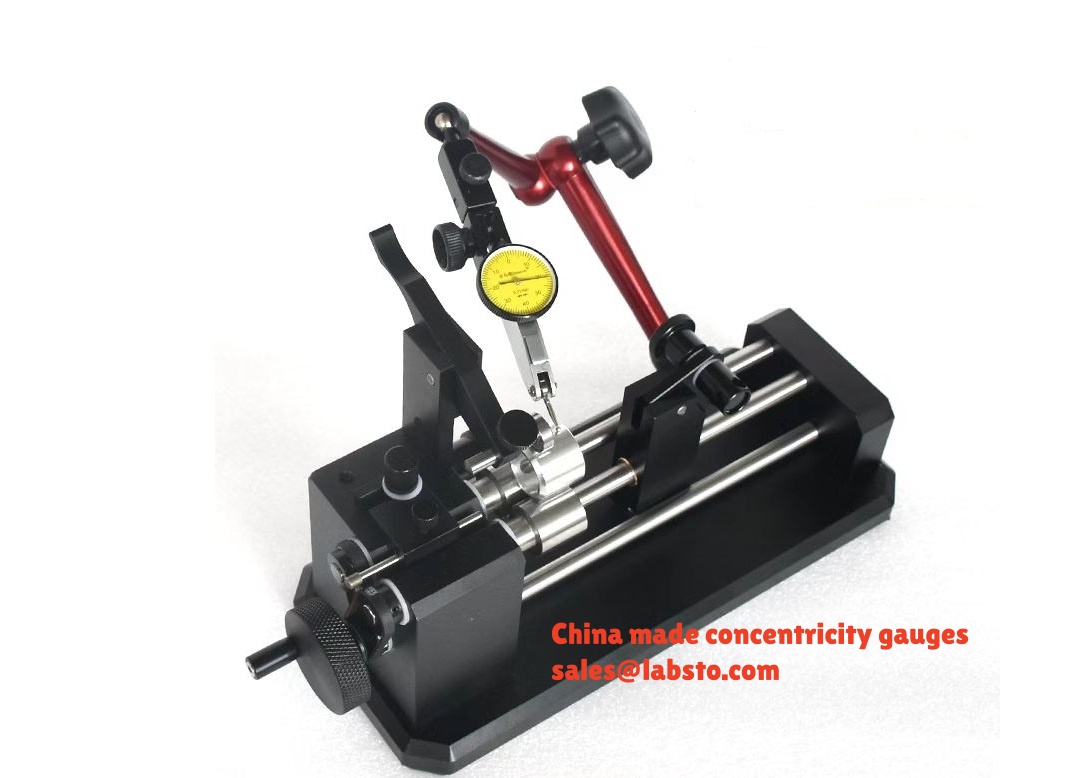

Concentricity Gauges

• CYLINDRICAL ROLLER: the precision of the machine head is 0.002mm, the cylindrical parallel roller can measure shafts, cylindrical and other parts; the smallest can clamp the workpiece diameter 3-35mm, length 1-102mm.
• SINGLE / DOUBLE METER CAN BE INSTALLED: 1 meter or 2 meter can be installed at the same time according to the measurement requirements. The external and internal parameters of the shaft parts can be accurately measured at the same time, which can save time by measuring quickly.
• MANUAL MEASUREMENT: manual concentricity meter, hand-cranked hand wheel to test the measured workpiece, measure its beating, and complete the reading through the scale; easy to operate and versatile. Equipped with a thimble, it can withstand the other end of the workpiece to be measured, preventing the workpiece from moving back and forth.
• PRESSURE ROLLER LIFTING HANDLE: The height of the pressure roller can be adjusted according to the diameter of the product to be measured. This handle can be used to lift up and down and adjust the height of the pressure roller.
• WITH FINE-TUNING BRACKET: movable and tiltable with fine-tuning bracket, with lever meter mounting clamp dovetail slot and fine-tuning bolt; rotating clamp can rotate 360 °
•

Multi-faceted measurement: This instrument is suitable for measuring coaxial parts such as step shafts, shaft sleeves and bushings.
Roundness, concentricity, circumferential runout of shaft parts, multiple points of broken shaft parts
Simultaneous precision measurement of precise measurement parameters of surface aberration
Simultaneous precision measurement of external and internal parameters of shaft parts
Fast measurement of difference surface, inner circle and outer circle can be measured simultaneously
Dedicated aluminum box + carton
Concentricity meter packaging adopts special customized aluminum box + carton packaging, beautiful and generous, shockproof and compression resistant.

Concentricity Gage, .039"Dia-1.575"Dia With Ball Bearing, High Stability, Long Working Life. Accuracy .00008". Optional Accessory: Dial Test Indicator | The Pictures Shown Are Factory Stock Pictures They Only Represent The Item Insize Part #4726-2E

• With ball bearing, high stability, long working life.
• Accuracy .00008".
• Optional accessory: dial test indicator
