3 1/2-4 Stub Acme M2-2G

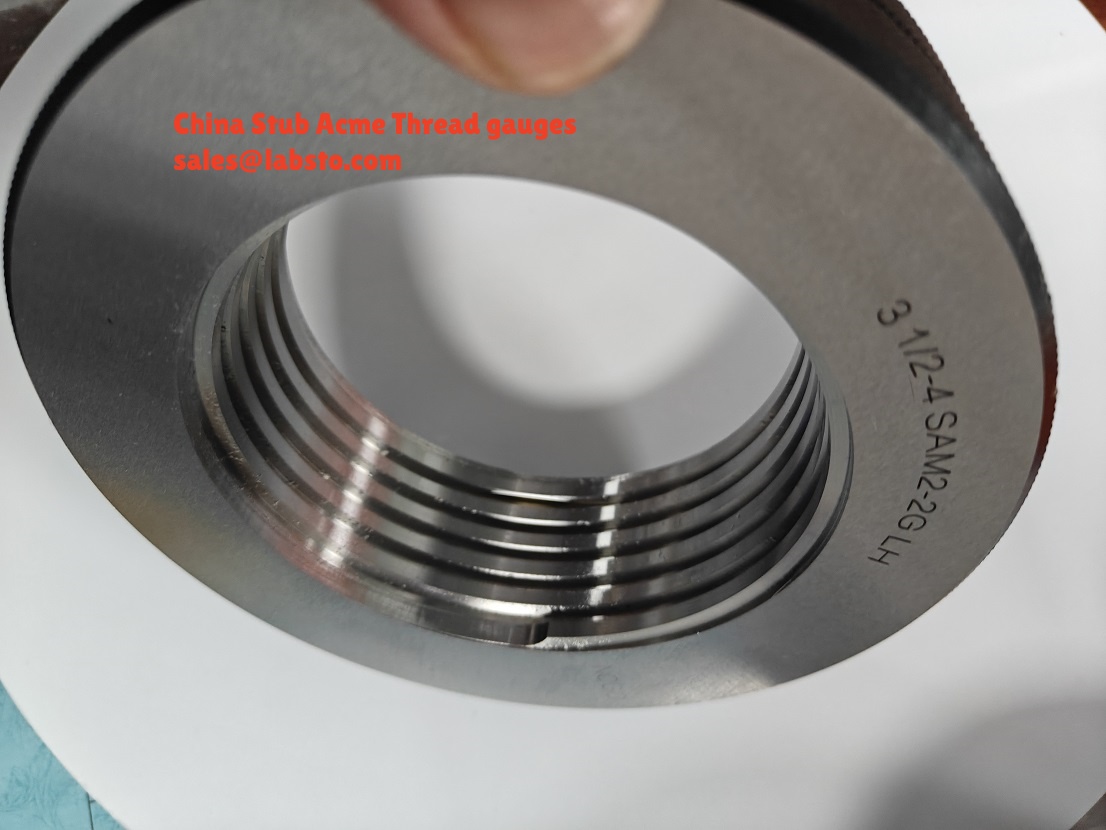

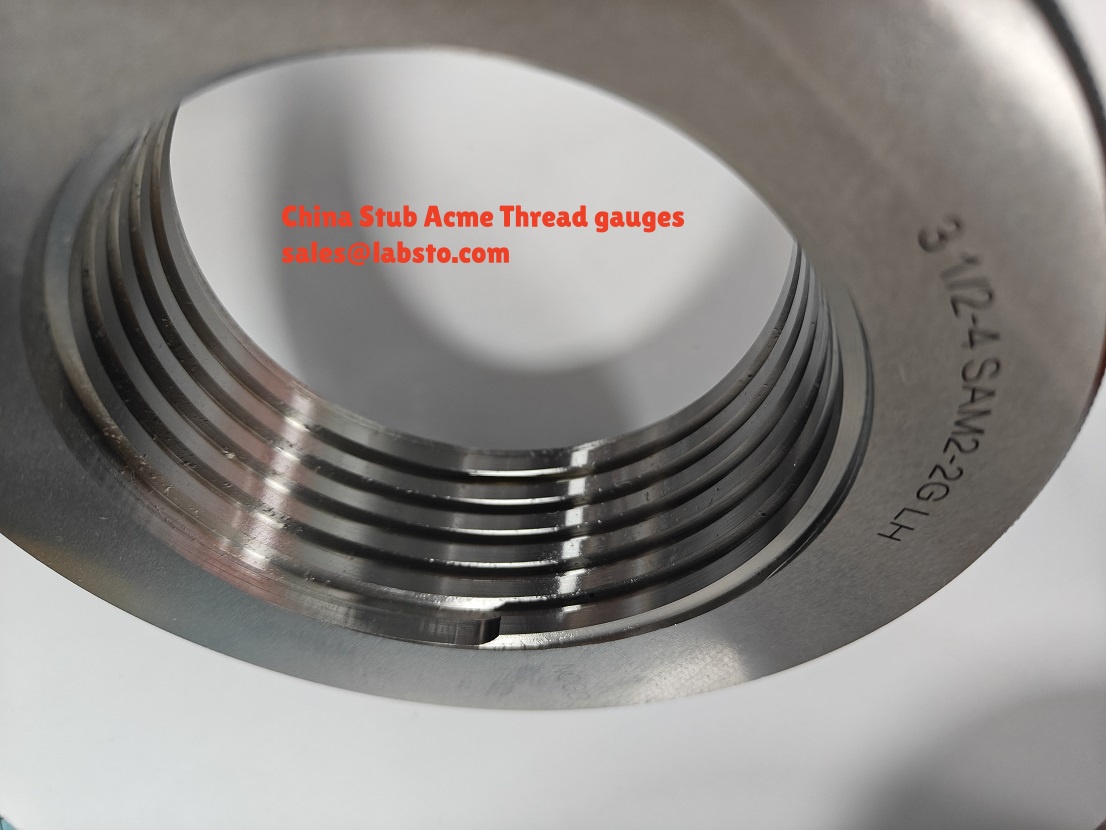

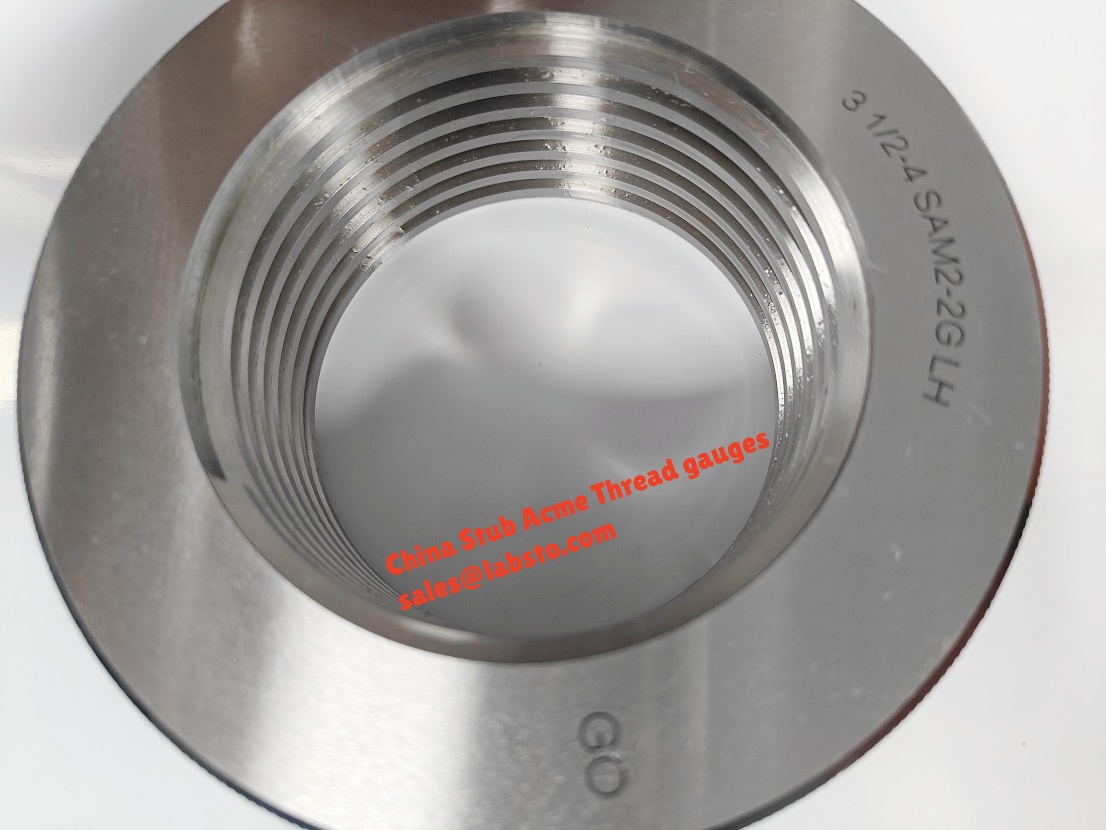

Thread ring gauge 3 1/2-4 Stub Acme M2-2G made in China by Thread grinding machine,all parameter in tolerance.
ꄴPrevious： 4"-4HBPV LH Thread Ring
ꄲNext： 10 1/2-4 STUB ACME-2G PLUG GAGE

Thread ring gauge 3 1/2-4 Stub Acme M2-2G made in China by Thread grinding machine,all parameter in tolerance.

 SA M2 2G STUB ACME Thread Plug Gage

Modified Stub Acme Thread Form2 (M2) Ring and Plug Gage

2" 12 STUB ACME M2 2G LEFT HAND THREAD PLUG GAGE

ACME /Stub ACME Thread Ring Gauge. Modified Stub Acme Thread Form2 (M2) Ring and Plug Gage

Each 2.375-6 Stub ACME thread gage 100% calibrated with quality assurance



STUB ACME M2 Thread Gages: Precision Measurement Solutions by Sowant Precision Gage

Introduction to STUB ACME M2 Threads

STUB ACME M2 threads are a specialized type of trapezoidal thread with a truncated (stub) form, designed for applications requiring high strength and durability in limited space. These threads feature a 29° included angle, similar to standard ACME threads, but with a reduced height, making them ideal for heavy-load, high-stress environments such as aerospace, oil & gas, and industrial machinery.

Sowant Precision Gage is a trusted manufacturer of precision thread gages, including 3 1/2-4 STUB ACME M2-2G ring and plug gages. Our gages are meticulously calibrated to ensure compliance with industry standards, guaranteeing accurate and reliable measurements.

Key Features of Sowant’s STUB ACME M2 Thread Gages

  • High Accuracy: Manufactured to tight tolerances (Class 2G for GO/NGO gages).

  • Durable Materials: Made from hardened steel or carbide for extended service life.

  • Precision Ground: Thread profiles are precision-ground for consistent performance.

  • Full Compliance: Meets ANSI/ASME B1.8 standards for STUB ACME threads.

20 Standard STUB ACME M2 Thread Gage Models

Below is a list of common STUB ACME M2 thread gage sizes produced by Sowant Precision Gage:

  1. 1-4 STUB ACME M2-2G Ring & Plug Gage

  2. 1 1/4-4 STUB ACME M2-2G Ring & Plug Gage

  3. 1 1/2-4 STUB ACME M2-2G Ring & Plug Gage

  4. 1 3/4-4 STUB ACME M2-2G Ring & Plug Gage

  5. 2-4 STUB ACME M2-2G Ring & Plug Gage

  6. 2 1/4-4 STUB ACME M2-2G Ring & Plug Gage

  7. 2 1/2-4 STUB ACME M2-2G Ring & Plug Gage

  8. 2 3/4-4 STUB ACME M2-2G Ring & Plug Gage

  9. 3-4 STUB ACME M2-2G Ring & Plug Gage

  10. 3 1/4-4 STUB ACME M2-2G Ring & Plug Gage

  11. 3 1/2-4 STUB ACME M2-2G Ring & Plug Gage

  12. 3 3/4-4 STUB ACME M2-2G Ring & Plug Gage

  13. 4-4 STUB ACME M2-2G Ring & Plug Gage

  14. 4 1/2-4 STUB ACME M2-2G Ring & Plug Gage

  15. 5-4 STUB ACME M2-2G Ring & Plug Gage

  16. 5 1/2-4 STUB ACME M2-2G Ring & Plug Gage

  17. 6-4 STUB ACME M2-2G Ring & Plug Gage

  18. 1-6 STUB ACME M2-2G Ring & Plug Gage

  19. 1 1/2-6 STUB ACME M2-2G Ring & Plug Gage

  20. 2-6 STUB ACME M2-2G Ring & Plug Gage

Conclusion

Sowant Precision Gage ensures the highest quality in STUB ACME M2 thread gages, providing precise and reliable inspection tools for industrial applications. Whether you need 3 1/2-4 STUB ACME M2-2G or any other size, our gages are manufactured to exact specifications, ensuring compliance and performance.

For custom thread gage solutions or additional specifications, contact Sowant Precision Gage today!

Sowant Precision Gage – Your Trusted Partner in Precision Measurement.
