13 3/8-5 BCSG Gauge
China made 13.375 - 5BCSG API 5B. API 5B THREAD RING GAGE(S)

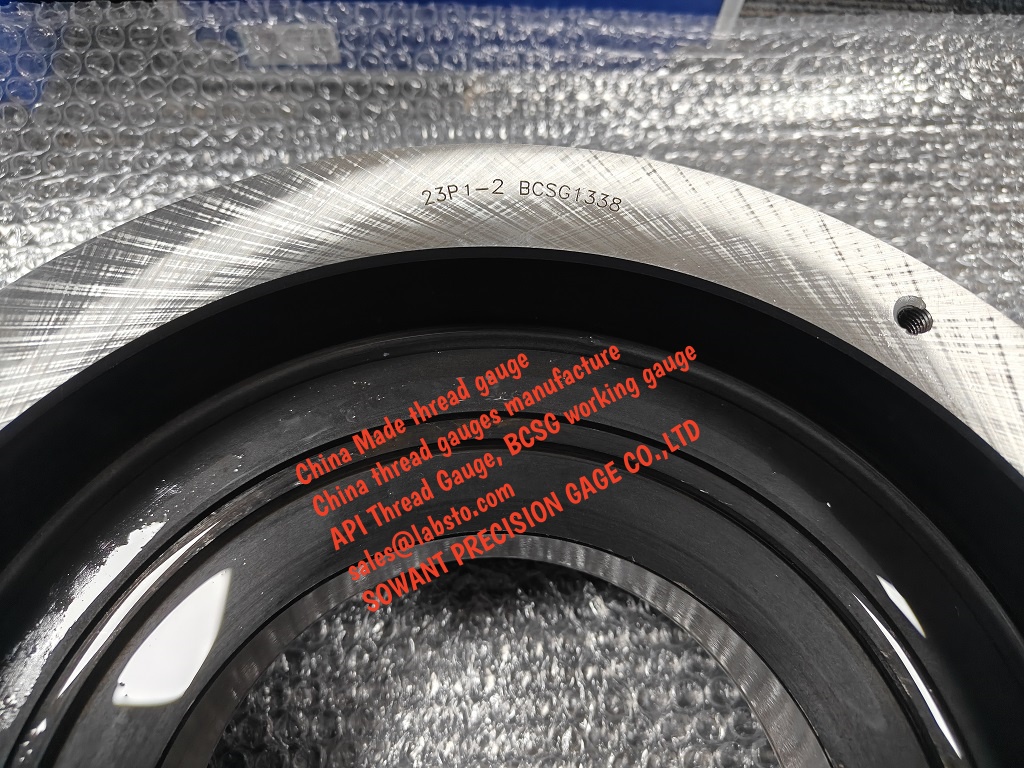

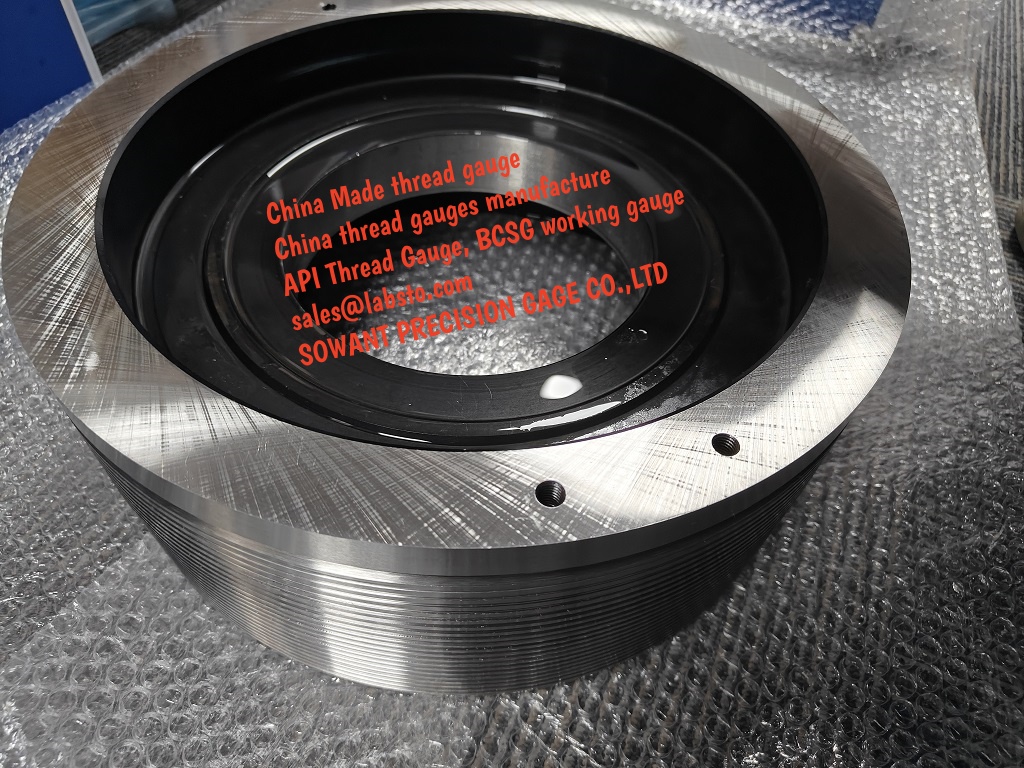

Chinese made 13 3/8 BCSG Buttress Casing Thread Gage
where can buy 13-3/8′ Buttress, Work Plug Gauge and bcsg working ring gauges? In China, Sowant preicison Gage?
Buttress Casing Thread API BCSG gauge for Petroleum and natural gas industries, do you have 8 5/8BCSG thread gauges?
Buttress Casing Thread Gage for Petroleum and Gas
Sowant precision gage can offer you the best quality API thread ring gages, include ,BCSG thread ring gages, API FH thread gauges, API IF thread gauges,API REG thread gauges,Acme thread guages,Mitutoyo,insize,cameron ball gages.
Description:
Sowant precision gage can provides buttress casing working gauges, available sizes from 4 1/2 to 20 inches in diameter,
all working gauges and reference master gauges are manufactured and calibrated conform to API Spec 5B standard.
When you order, please mark example, working gauge:4 1/2 BCSG RING&PLUG.
Specification:
|
Size |
Outer Dia |
Pitch per 25.4mm |
Taper |
Form Angle |
|
4 1/2 BCSG |
114.30 |
5.08(5) |
1:16 |
3°,10° |
|
5 BCSG |
127.00 |
5.08(5) |
||
|
5 1/2 BCSG) |
139.70 |
5.08(5) |
||
|
6 5/8 BCSG |
168.28 |
5.08(5) |
||
|
7 BCSG |
177.80 |
5.08(5) |
||
|
7 5/8 BCSG |
193.68 |
5.08(5) |
||
|
8 5/8 BCSG |
219.08 |
5.08(5) |
||
|
9 5/8 BCSG |
244.48 |
5.08(5) |
||
|
10 3/4 BCSG |
273.05 |
5.08(5) |
||
|
11 3/4 BCSG |
298.45 |
5.08(5) |
||
|
13 3/8 BCSG) |
339.73 |
5.08(5) |
||
|
16 BCSG |
406.40 |
5.08(5) |
1:12 |
3°,10° |
|
18 5/8 BCSG |
473.08 |
5.08(5) |
||
|
20 BCSG) |
508.00 |
5.08(5) |
Buttress Casing Thread API BCSG gauge for Petroleum and natural gas industries
API 5B pipe thread measuring tools Thread Gauge plug and ring gauge ; 9 5/8 (CSG,LCSG,BCSG) · 10 3/4 (CSG,LCSG,BCSG) · 11 3/4 (CSG,LCSG,BCSG)
|
API gauge (Casing Round Thread) |
|||||
|
Gauge Code |
Outer dia. Ø |
Taper |
Gauge Code |
Outer dia. Ø |
Taper |
|
4 1/2 (CSG,LCSG) |
114.30 |
1:16 |
8 5/8 (CSG,LCSG) |
219.08 |
1:16 |
|
5 (CSG,LCSG) |
127.00 |
9 5/8 (CSG,LCSG) |
244.48 |
||
|
5 1/2 (CSG,LCSG) |
139.70 |
10 3/4 (CSG,LCSG) |
273.05 |
||
|
6 5/8 (CSG,LCSG) |
168.28 |
11 3/4 (CSG,LCSG) |
298.45 |
||
|
7 (CSG,LCSG) |
177.80 |
13 3/8 (CSG,LCSG) |
339.73 |
||
|
7 5/8 (CSG,LCSG) |
193.68 |
16 (CSG,LCSG) |
406.40 |
||
|
The pitch of API gauges:3.175(8); The form angle of API thread gauge:60° |
|||||
|
API gauge (Buttress Casing Thread) |
|||||
|
Gauge Code |
Outer dia. Ø |
Taper |
Gauge Code |
Outer dia. Ø |
Taper |
|
4 1/2 BCSG |
114.30 |
1:16 |
8 5/8 BCSG |
219.08 |
1:16 |
|
5 BCSG |
127.00 |
9 5/8 BCSG |
244.48 |
||
|
5 1/2 BCSG |
139.70 |
10 3/4 BCSG |
273.05 |
||
|
6 5/8 BCSG |
168.28 |
11 3/4 BCSG |
298.45 |
||
|
7 BCSG |
177.80 |
13 3/8 BCSG |
339.73 |
||
|
7 5/8 BCSG |
193.68 |
16 BCSG |
406.40 |
1:12 |
|
|
The pitch of API gauges:5.08(5); The form angle of API thread gauge:3°, 10°. |
|||||
|
API gauge (Non-upset Tubing Thread) |
|||||||
|
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
|
1.050 TBG |
26.67 |
2.54(10) |
1:16 |
2 7/8 TBG |
73.03 |
2.54(10) |
1:16 |
|
1.315 TBG |
33.40 |
2.54(10) |
3 1/2 TBG |
88.90 |
2.54(10) |
||
|
1.660 TBG |
42.16 |
2.54(10) |
4 TBG |
101.60 |
3.175(8) |
||
|
1.900 TBG |
48.26 |
2.54(10) |
4 1/2 TBG |
114.30 |
3.175(8) |
||
|
2 3/8 TBG |
60.33 |
2.54(10) |
|||||
|
The form angle of API gauges:60° |
|||||||
|
API gauge (External-upset Tubing Thread) |
|||||||
|
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
|
1.050 UPTBG |
26.67 |
2.54(10) |
1:16 |
2 7/8 UPTBG |
73.03 |
3.175(8) |
1:16 |
|
1.315 UPTBG |
33.40 |
2.54(10) |
3 1/2 UPTBG |
88.90 |
3.175(8) |
||
|
1.660 UPTBG |
42.16 |
2.54(10) |
4 UPTBG |
101.60 |
3.175(8) |
||
|
1.900 UPTBG |
48.26 |
2.54(10) |
4 1/2 UPTBG |
114.30 |
3.175(8) |
||
|
2 3/8 UPTBG |
60.33 |
3.175(8) |
|||||
|
The form angle of API gauges:60° |
|||||||
|
API gauge (Line Pipe Thread) |
|||||||
|
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
Gauge Code |
Outer dia. Ø |
Pitch |
Taper |
|
1/8 LP |
3.18 |
0.941(27) |
1:16 |
2 1/2 LP |
63.50 |
3.175(8) |
1:16 |
|
1/4 LP |
6.35 |
1.411(18) |
3 LP |
76.20 |
3.175(8) |
||
|
3/8 LP |
9.53 |
1.411(18) |
3 1/2 LP |
88.90 |
3.175(8) |
||
|
1/2 LP |
12.70 |
1.814(14) |
4 LP |
101.60 |
3.175(8) |
||
|
3/4 LP |
19.05 |
1.814(14) |
5 LP |
127.00 |
3.175(8) |
||
|
1 LP |
25.40 |
2.209(11 1/2) |
6 LP |
152.40 |
3.175(8) |
||
|
1 1/4 LP |
31.75 |
2.209(11 1/2) |
8 LP |
203.20 |
3.175(8) |
||
|
1 1/2 LP |
38.10 |
2.209(11 1/2) |
10 LP |
254.00 |
3.175(8) |
||
|
2 |
50.80 |
2.209(11 1/2) |
|||||
|
The form angle of API gauges:60° |
|||||||
Sowant also can offer you cameron BX groove ball gage,Cameron ball gages, API thread gauges, INSIZE calipers, Mitutoyo products, Gagemaker products, PD-6001,PD-8001,PD-8004, and profile gauges.
