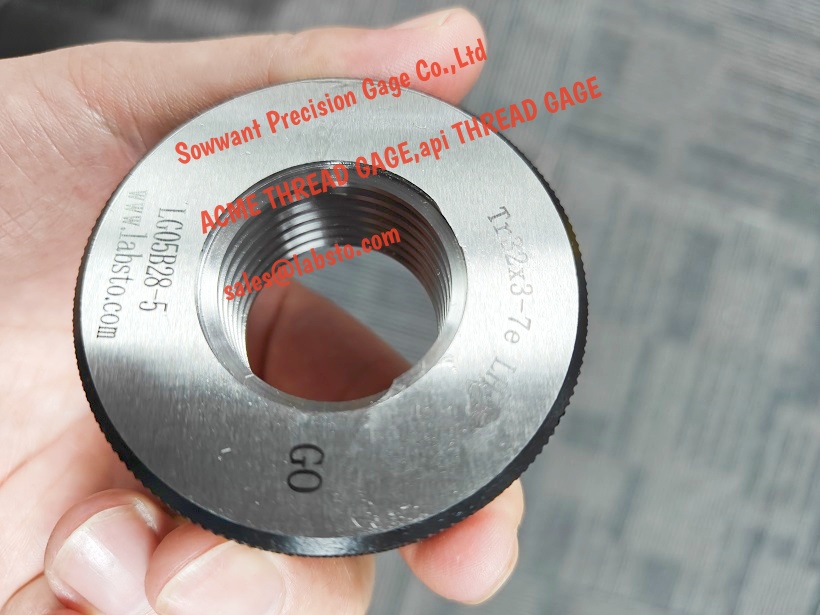

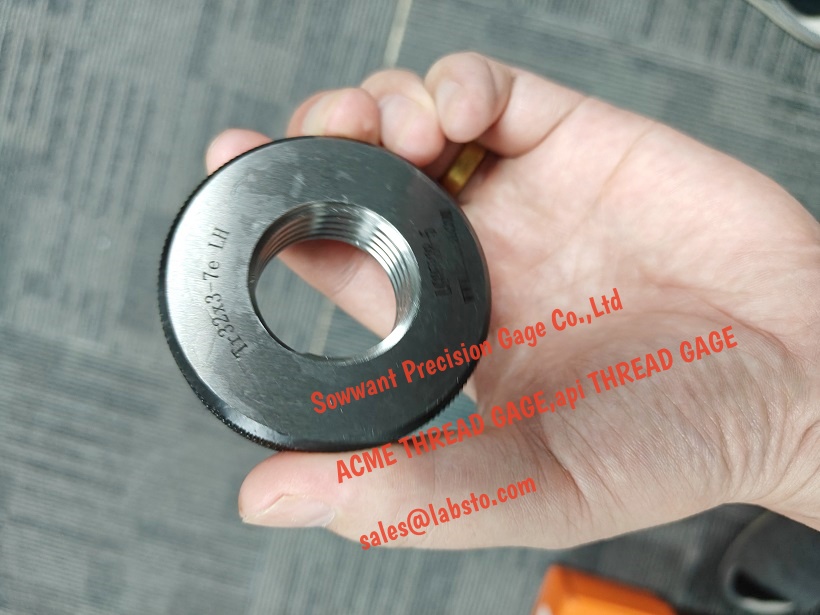

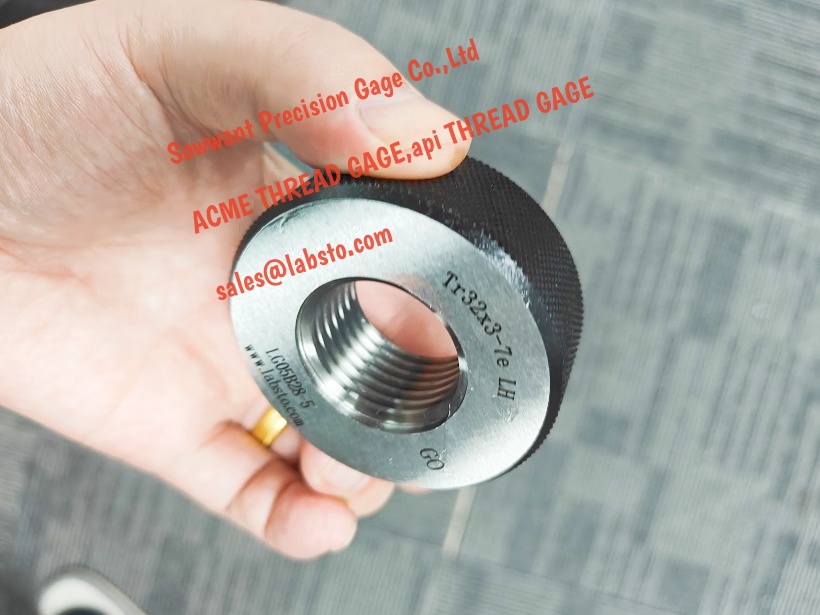

Tr32×3.0-7e LH thread ring gauges made in China, all parameters of thread ring gage in tolerance.
ꄴPrevious： TR 200×8.0-7e Thread Ring
ꄲNext： Tr13×3(P1.5)-7H PLUG GAGE





Comprehensive TR Thread Ring Gages by Sowant Precision Gage

Sowant Precision Gage is a leading manufacturer of high-precision inspection tools, dedicated to ensuring quality and accuracy in industrial manufacturing. We specialize in the production of a complete range of TR (Trapezoidal) thread plug and ring gages, manufactured to stringent international standards (typically DIN 103 and ISO 2902-4). Our gages are the trusted choice for inspecting trapezoidal threads used in power transmission, lead screws, and other critical applications where high load-bearing capacity and precise movement are required.

We offer both standard and custom gages to meet your specific requirements. Our full product line ensures that whatever your TR thread inspection need may be, we can provide a precise and durable solution.

We invite your inquiries and look forward to providing you with our expert service and superior products.

Detailed Parameters: Tr32×3.0-7e LH Thread Ring Gage

This section provides a detailed breakdown of all parameters for the specified TR thread ring gage.

  • Gage Type: Thread Ring Gage (For inspecting external TR threads)

  • Thread Designation: Tr32×3.0-7e LH

  • Thread Standard: DIN 103 / ISO 2902 (Trapezoidal Threads)

  • Nominal Diameter (d): 32 mm

    • This is the major diameter of the external thread being measured.

  • Pitch (P): 3.0 mm

    • The distance from one thread crest to the next.

  • Lead: 3.0 mm (For a single-start thread)

    • For a single-start thread, lead is equal to pitch. This indicates the axial distance the screw travels in one full revolution.

  • Tolerance Grade: 7e

    • This is the tolerance class for the external thread (bolt/screw) that this ring gage is designed to check. The e designation indicates a large fundamental deviation (allowance), resulting in a looser fit. Grade 7e is a common medium-grade tolerance.

  • Thread Direction: LH (Left-Hand)

    • The thread rotates counter-clockwise to tighten, as opposed to the standard right-hand (RH) direction.

  • Purpose: This ring gage is used as a GO gage. It should screw onto a correctly manufactured external thread within its specified tolerance limits without undue force.

  • Material: Typically manufactured from high-grade bearing steel (like Cr15) or tool steel, hardened and stabilized for exceptional wear resistance and long service life.

  • Manufacturing Standard: The gage itself is manufactured to accuracy standards like ISO 1502 or DIN 13-20 to ensure it inspects the product thread correctly.

30 Example Models of TR Thread Ring Gages

Here is a list of 30 example model numbers for TR thread ring gages, following the requested format.

  1. Tr80x1.5-7e LH working ring gauges made in China,Tr thread ring price is $200.00?

  2. Tr85x1.5-8e RH working ring gauges made in China,Tr thread ring price is $400.00?

  3. Tr100x2-7e RH working ring gauges made in China,Tr thread ring price is $250.00?

  4. Tr110x2-8e LH working ring gauges made in China,Tr thread ring price is $1200.00?

  5. Tr120x3-7e RH working ring gauges made in China,Tr thread ring price is $230.00?

  6. Tr125x3-8e LH working ring gauges made in China,Tr thread ring price is $280.00?

  7. Tr160x4-7e RH working ring gauges made in China,Tr thread ring price is $290.00?

  8. Tr168x4-8e LH working ring gauges made in China

  9. Tr200x4-7e RH working ring gauges made in China

  10. Tr210x4-8e LH working ring gauges made in China

  11. Tr220x5-7e RH working ring gauges made in China

  12. Tr225x5-8e LH working ring gauges made in China

  13. Tr240x5-7e RH working ring gauges made in China

  14. Tr245x5-8e LH working ring gauges made in China

  15. Tr260x5-7e RH working ring gauges made in China

  16. Tr265x5-8e LH working ring gauges made in China

  17. Tr280x5-7e RH working ring gauges made in China

  18. Tr285x5-8e LH working ring gauges made in China

  19. Tr300x6-7e RH working ring gauges made in China

  20. Tr320x6-8e LH working ring gauges made in China

  21. Tr325x6-7e RH working ring gauges made in China

  22. Tr320x6-8e LH working ring gauges made in China

  23. Tr360x6-7e RH working ring gauges made in China

  24. Tr365x6-8e LH working ring gauges made in China

  25. Tr400x7-7e RH working ring gauges made in China

  26. Tr410x7-8e LH working ring gauges made in China

  27. Tr420x7-7e RH working ring gauges made in China

  28. Tr425x7-8e LH working ring gauges made in China

  29. Tr440x7-7e RH working ring gauges made in China

  30. Tr445x7-8e LH working ring gauges made in China

Contact Us:
For pricing, delivery time (typically 4-6 weeks for standard gages), or to discuss your specific TR thread gage requirements—including custom tolerances, sizes, or material requests—please contact our sales team. Sowant Precision Gage is your reliable partner for all your dimensional metrology needs.
