TR Threads: Standards, Specifications, and Comparison with ACME Threads

TR threads, also known as metric trapezoidal threads, are a type of lead screw thread widely used in mechanical power transmission systems due to their ability to handle heavy loads and provide smooth movement. This article provides a comprehensive overview of their standards, basic dimensions, tolerance grades, thread gauges, and a detailed comparison with ACME threads.

1. Standards and Basic Dimensions

The international standard governing metric trapezoidal threads is ISO 2901, which defines the basic and design profiles of the thread. The tolerance standard is specified in ISO 2903 (particularly Part 2: ISO 2903-2:2025, which specifies the limits of sizes for major, pitch, and minor diameters). The Chinese national standard is GB/T 5796.4-1986.

• Thread Feature Code: The characteristic code for metric trapezoidal threads is "Tr".

• Thread Angle: TR threads have a 30° thread angle.

• Profile: The thread form is an isosceles trapezoid.

• Designation: A single-start thread is designated by its Nominal Diameter × Pitch (e.g., Tr40×7). A multi-start thread is designated by its Nominal Diameter × Lead (P Pitch) (e.g., Tr40×14(P7)).

• Handedness: Right-hand threads are standard and not marked. Left-hand threads are marked with the letters "LH" (e.g., Tr40×7 LH-7e).

• Pitch Variants: For a given nominal diameter, multiple pitch sizes are often available (e.g., Tr10×1.5, Tr10×2, Tr10×3), allowing designers to choose between finer (for higher precision) or coarser (for higher load capacity and speed) pitches.

2. Tolerance Grades

ISO 2903 recommends seven tolerance classes for metric trapezoidal threads. The tolerance designation is primarily for the pitch diameter.

• Internal Thread (Nut) Tolerance Classes: 7H, 8H, 9H. The capital letter "H" indicates that the fundamental deviation is zero.

• External Thread (Screw) Tolerance Classes: 7e, 8e, 8c, 9c. The lowercase letters "e" and "c" indicate negative fundamental deviations, with "c" providing a larger clearance than "e".

The tolerance class follows the size designation in the thread marking, separated by a hyphen (e.g., Tr40×7-7H for an internal thread, Tr40×7-7e for an external thread). For a thread pair, the internal thread tolerance is listed before the external, separated by a slash (e.g., Tr40×7-7H/7e).

3. Thread Gauges (Tr Thread Ring Gauges and Tr Thread Plug Gauges)

Thread gauges are essential tools for verifying the correctness of manufactured threads.

• Function:

  • Thread Plug Gauges: Used to check internal threads (nuts). A "GO" plug gauge checks the maximum material limit, and a "NO-GO" plug gauge checks the minimum material limit.

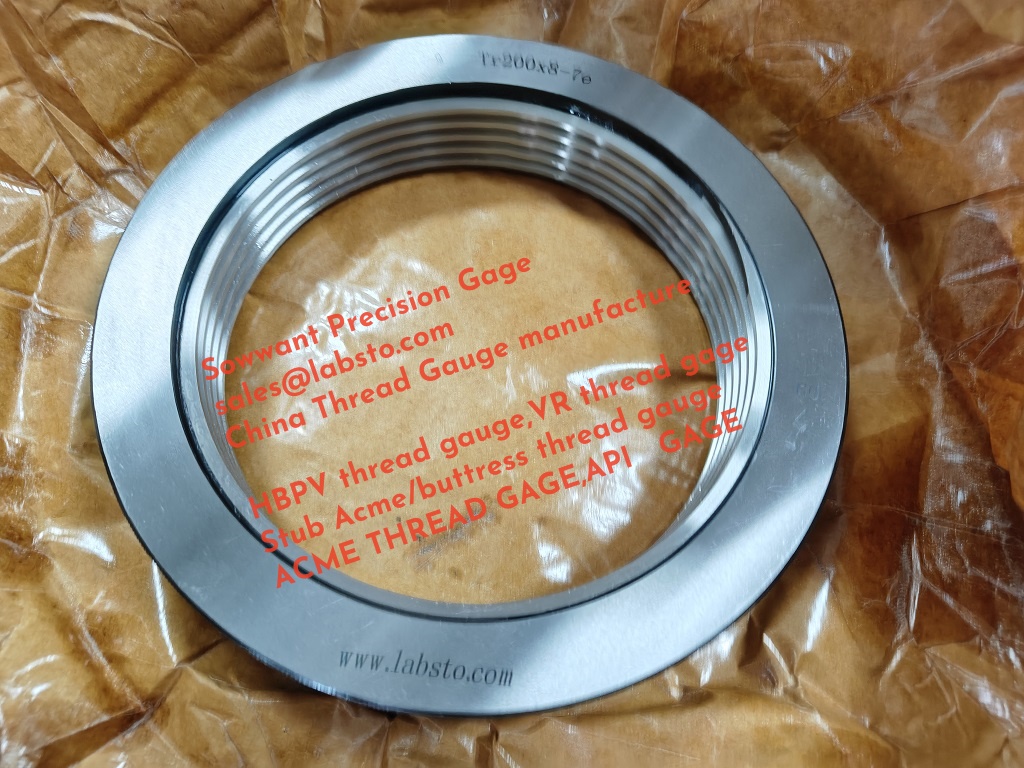

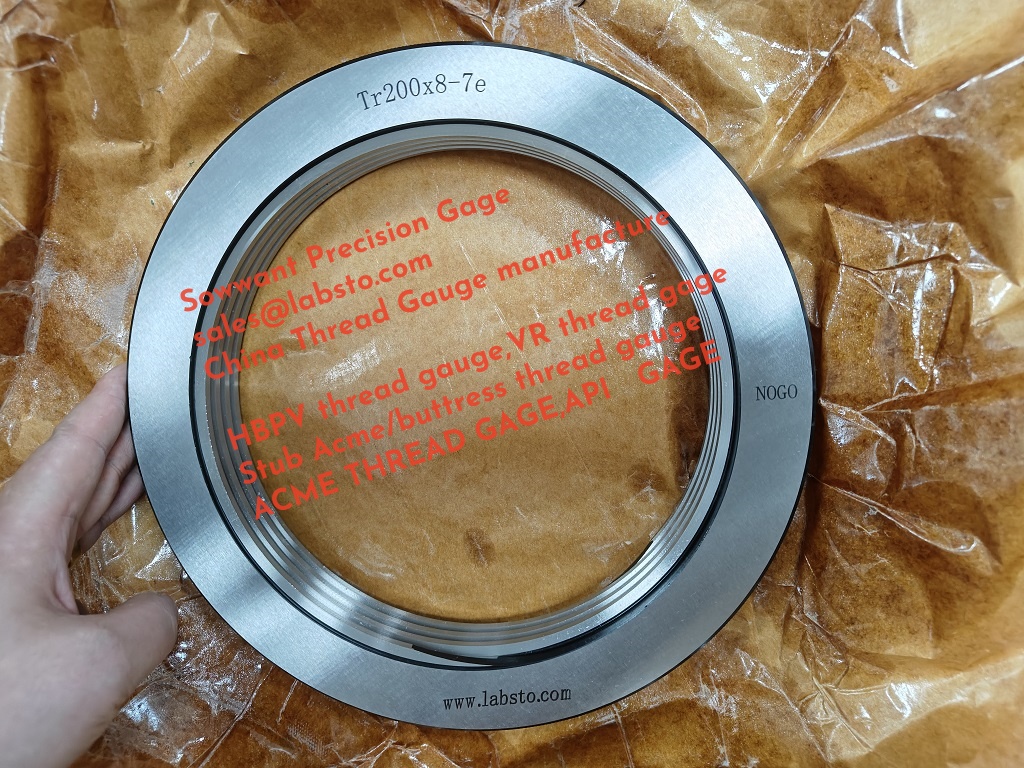

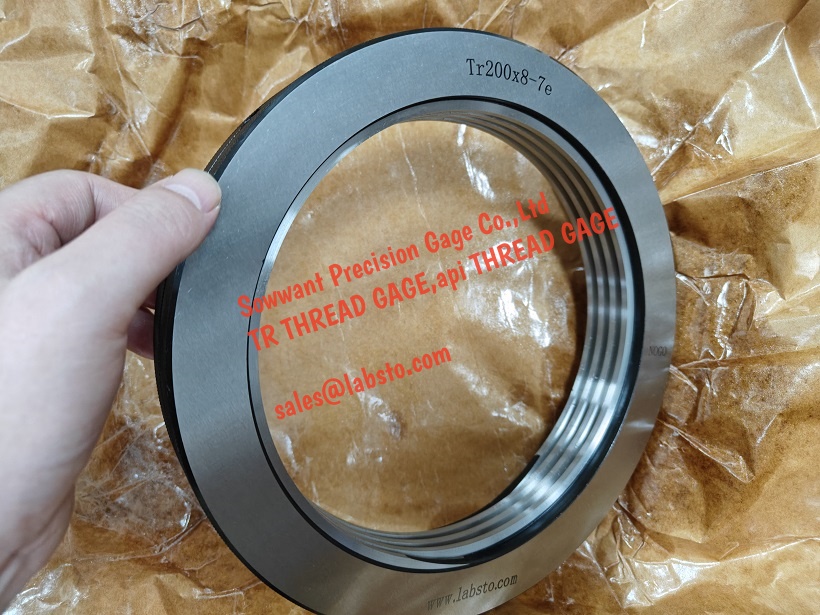

  • Thread Ring Gauges: Used to check external threads (screws). Similarly, a "GO" ring gauge and a "NO-GO" ring gauge are used.

• Designation: The marking of the gauge typically includes the thread specification and the tolerance it is designed to check (e.g., Tr40×7-7H for a plug gauge, Tr40×7-7e for a ring gauge). For multi-start threads, it may be marked like Tr30×6(P1.5)-8e.

• Manufacture: These gauges have a precise 30° thread angle and are made from high-quality, wear-resistant materials to ensure measurement accuracy and longevity.

4. Comparison: TR Threads vs. ACME Threads

Similarities: Both TR and ACME threads share a trapezoidal profile designed for power transmission, offering higher strength and better wear resistance compared to triangular threads (e.g., V-threads). They are both suitable for applications requiring bidirectional motion.

Differences: The key differences lie in the thread angle (30° vs. 29°), the unit system (metric vs. imperial), and their dominant geographical usage (international vs. US-centric). This makes them not directly interchangeable. Attempting to mate a TR thread with an ACME thread will result in improper contact and rapid wear due to the angle mismatch, even if the diameter and pitch appear similar.

5. List of 40 Tr Thread Ring Gauge Models (Nominal Diameter > 30mm)

The following table lists 40 model specifications for Tr thread ring gauges with a nominal diameter greater than 30mm. The tolerance grade for external threads (7e, 8e, etc.) can be specified according to your design requirements.

• Note: "LH" can be added to the model designation for left-hand threads (e.g., Tr32×6-8e-LH).

Conclusion

TR threads, standardized under ISO, are a fundamental component in global mechanical design for power transmission. Understanding their standards, dimensions, tolerances, and verification tools is crucial for ensuring quality and interoperability. While similar in function to ACME threads, their differing standards and geometries make them incompatible. The choice between them often depends on the regional context (metric vs. imperial), existing machinery, and specific application requirements. Designers must pay close attention to these distinctions when selecting or specifying threads for lead screw applications.
