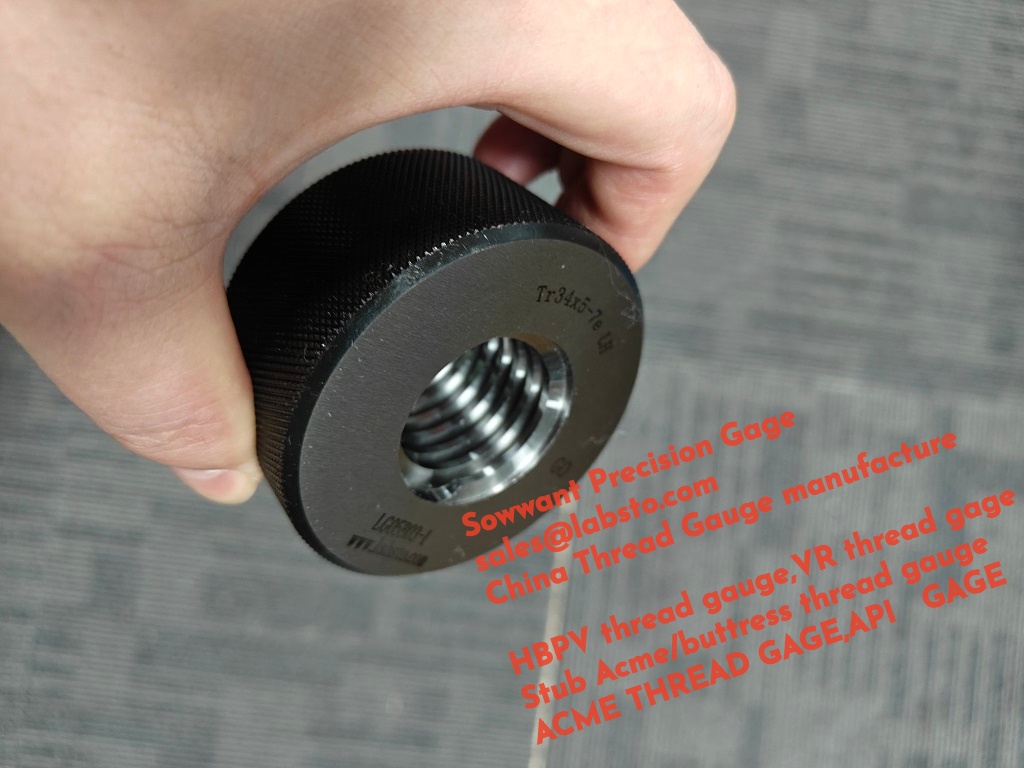

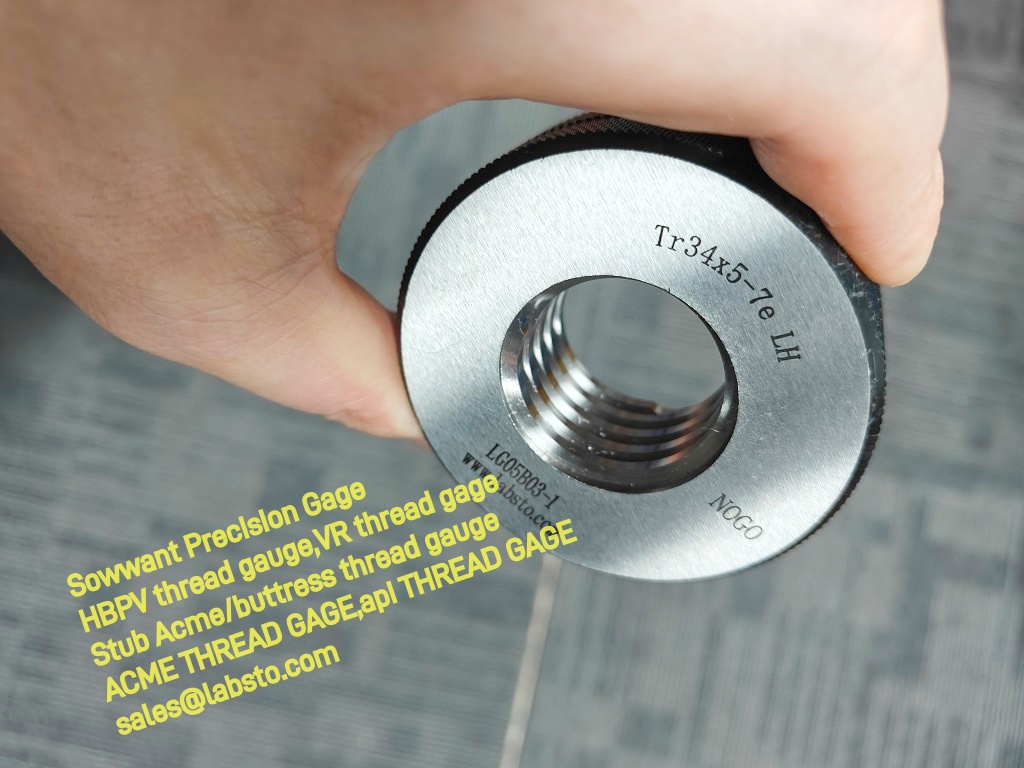

China made Tr34×5.0-7e Thread Ring Gauge , all this thread ring gauge was made by CNC thread grinding machine, 3-4 week. All parameters in tolerance.

Metric Trapezoidal Thread Gauges (TR): A Comprehensive Overview and Comparison with ASME B1.5 ACME Thread Gauges

Trapezoidal thread gauges are essential precision instruments used in manufacturing and quality control to verify the accuracy of trapezoidal threads, which are widely employed in power transmission systems and motion transfer applications due to their high load-bearing capacity and durability. This article focuses on metric trapezoidal thread gauges (TR) with a 30° thread angle, governed by standards like DIN 103-9 (1985) and GB/T 8124-2004, and contrasts them with their American counterpart, the ASME B1.5 ACME thread gauge.

1 Introduction to Trapezoidal Thread Gauges

Trapezoidal threads are characterized by their trapezoidal profile and are primarily used for transmitting motion and power in lead screws, CNC machines, and various industrial equipment. Their ability to handle high axial loads with relatively low friction makes them indispensable in mechanical engineering.

Metric trapezoidal threads (TR) feature a 30° thread angle. The manufacturing and verification of these threads require specialized gauges, namely TR thread plug gauges (for inspecting internal threads) and TR thread ring gauges (for inspecting external threads). These gauges ensure that the threaded components conform to specified tolerances and functional requirements.

2 Metric Trapezoidal Thread Gauges (30° Thread Angle)

2.1 Standards and Specifications

The primary international standards governing metric trapezoidal threads and their gauges are:

• DIN 103-9 (1985): This German standard specifies the dimensions, tolerances, and design for metric trapezoidal screws.

• GB/T 8124-2004: This Chinese national standard specifies the requirements for metric trapezoidal thread gauges used to inspect threads manufactured according to GB/T 5796 (which is harmonized with ISO 2901/2903).

These standards define the basic profile, tolerance classes, and allowance deviations for metric trapezoidal threads, which have a 30° thread angle.

2.2 Gauge Types and Application

• TR Thread Plug Gauge: Used to check the internal trapezoidal threads (nuts). A "GO" plug gauge must fully engage the thread, while a "NO-GO" gauge checks the minimum material limit.

• TR Thread Ring Gauge: Used to inspect external trapezoidal threads (screws). A "GO" ring gauge must screw onto the thread smoothly, and a "NO-GO" gauge verifies the maximum material limit.

2.3 Tolerance Classes and Deviation Codes

Metric trapezoidal threads are assigned specific tolerance grades for the pitch diameter and a deviation code for the allowable size range. Common tolerance grades for gauges and workpieces are 7, 8, and 9, with numerical values denoting the precision (lower numbers indicate tighter tolerances). Common deviation codes for external threads include h, e, and c, where 'h' has no allowance (basic size), 'e' has a large allowance, and 'c' has a very large allowance.

The standard marking format for a metric trapezoidal thread gauge is:
Tr[Nominal Diameter]×[Pitch]-[Tolerance Grade][Deviation Code] [Hand]
*Example: Tr34×6-8e signifies a metric trapezoidal thread with a 34mm nominal diameter, 6mm pitch, 8th tolerance grade, e deviation, and right-hand rotation.*

3 American Standard ASME B1.5 ACME Thread Gauges

The American standard for trapezoidal threads is defined by ASME B1.5. These threads, known as ACME threads, have a 29° thread angle and are classified into General Purpose (2G, 3G, 4G) and Centralizing (2C, 3C, 4C) types.

ACME thread gauges, like their metric counterparts, include plug and ring gauges. They are manufactured according to the stringent requirements of ASME B1.5 to ensure interchangeability in imperial-system-based applications.

4 Key Differences and Similarities between TR and ACME Gauges

4.1 Differences

4.2 Similarities

• Function: Both types of gauges serve the identical purpose: ensuring the functional integrity and interchangeability of trapezoidal threads by verifying their geometric accuracy within specified limits.

• Gauge Types: Both systems utilize thread plug gauges for internal threads and thread ring gauges for external threads.

• Core Principle: Both operate on the Taylor Principle of gauge design: The "GO" gauge checks the maximum material condition and full form of the thread, while the "NO-GO" gauge checks the minimum material condition on a single element (typically the pitch diameter).

• Importance in Manufacturing: Both are critical tools in quality assurance processes for industries manufacturing or using power transmission screws, such as automotive, aerospace, and machine tooling.

5 List of 50 TR Thread Ring Gauge Models (Nominal Diameter >30mm)

The following table lists 50 model specifications for TR thread ring gauges with nominal diameters greater than 30mm, complying with metric standards. The designations include tolerance grades (7, 8, 9) and deviation codes (c, e, h).

Note: LH denotes Left-Hand threads. All other models are for Right-Hand threads.

6 Conclusion

Understanding the distinctions between metric TR gauges (30°) and American ACME gauges (29°) is crucial for engineers, quality control professionals, and procurement specialists working in a globalized manufacturing environment. The choice between these two systems is fundamentally dictated by the prevailing standard system (metric vs. imperial) in a region or industry and the specific design requirements of the threaded component.

Adherence to the correct standard—whether DIN 103-9, GB/T 8124-2004, or ASME B1.5—and the use of accurately specified gauges, as illustrated by the extensive model list, are paramount for ensuring product quality, reliability, and global interchangeability of mechanical components utilizing trapezoidal threads.

if you need buy thread gauges in short time, in reasonable price. please feel free to contact with us , sales@labsto.com  we can offer HBPV thread ring gauge, API thread plug /ring gauges, sharp Vee THREAD PLUG GAGE, Acme thread gauges, Metric thread gauges.
