ASME B1.8 Stub Acme Thread Gages: 4 1/4-4 STUB ACME-2G and SWTG's Complete Solution

An Introduction to Stub Acme Threads and ASME B1.8 Standard

Stub Acme threads, standardized under ASME B1.8, are a specialized thread form designed for applications requiring coarse-pitch threads with shallow depth due to mechanical or metallurgical considerations. These threads came into existence in the early 1900s and feature a 29° thread angle with a reduced thread height compared to regular Acme threads. The stub design makes them particularly valuable in space-constrained applications where standard thread height would compromise component strength or where minimal engagement is required.

The ASME B1.8 standard provides comprehensive specifications for Stub Acme screw threads, covering dimensions, tolerances, and gaging requirements. These threads are identified by their major diameter, threads per inch, thread form, and class of fit, such as "4 1/4-4 STUB ACME-2G" which indicates a 4.25-inch major diameter with 4 threads per inch and a 2G tolerance class.

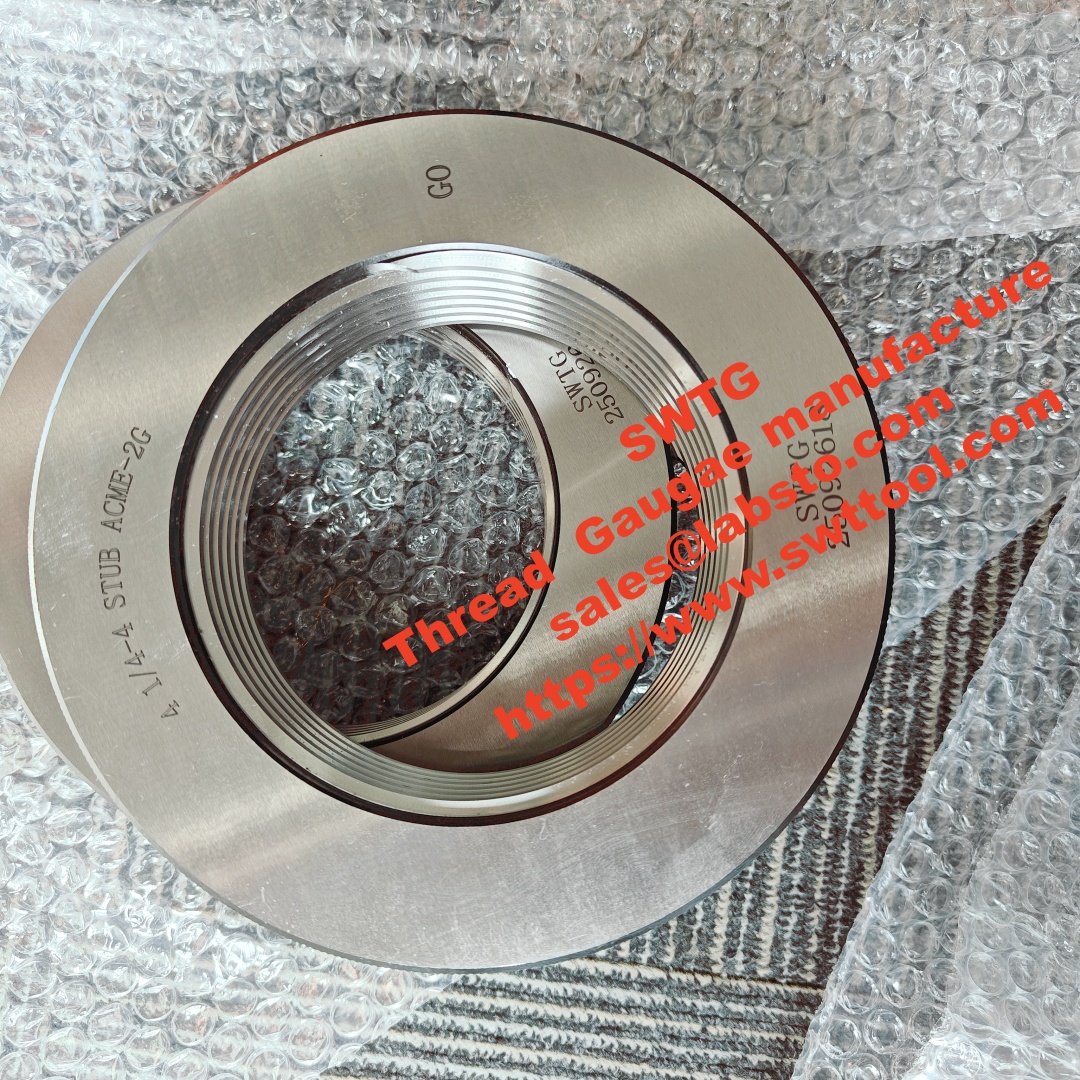

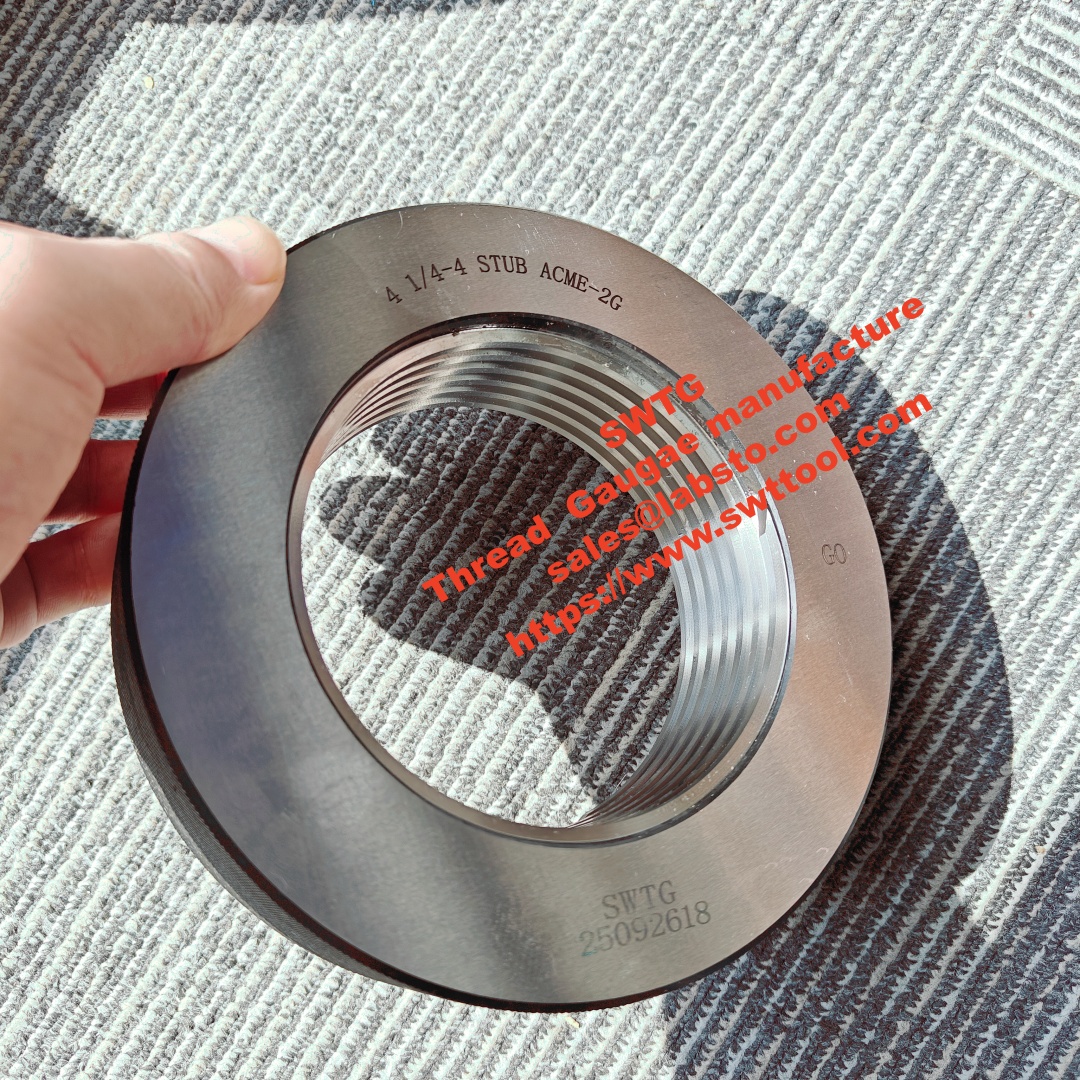

Understanding 4 1/4-4 STUB ACME-2G Thread Specifications

The 4 1/4-4 STUB ACME-2G designation represents a specific thread configuration within the ASME B1.8 standard:

• Major Diameter: 4.25 inches

• Thread Pitch: 4 threads per inch (TPI)

• Thread Form: Stub Acme (29° included angle)

• Tolerance Class: 2G (general purpose)

The 2G tolerance class provides sufficient clearance for general industrial applications where ease of assembly and disassembly is important. For applications requiring tighter tolerances and closer fits, 3G class is available, offering more precise engagement for critical applications in aerospace, defense, and precision machinery.

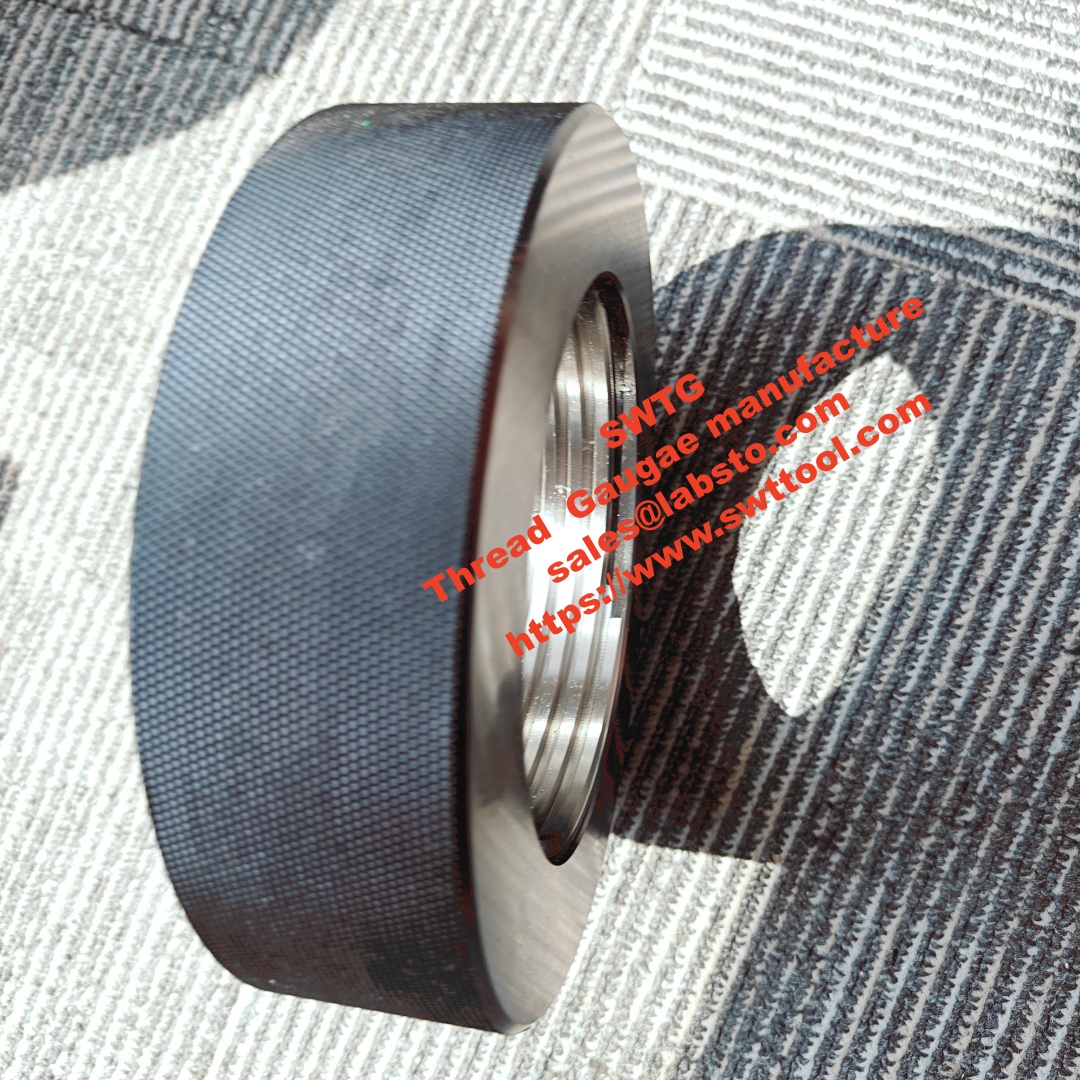

SWTG Stub Acme Thread Gages: Excellence in Precision Measurement

Sowant Precision Gage (SWTG) has established itself as a leading manufacturer of precision thread gages for Stub Acme threads, earning recognition from domestic and international clients for quality and reliability. SWTG's thread ring and plug gages combine exceptional wear resistance with consistent accuracy to ensure reliable thread inspection and quality control in manufacturing environments.

Key Features of SWTG Stub Acme Gages:

• Superior Wear Resistance: Manufactured from premium materials with advanced heat treatment processes, SWTG gages maintain accuracy through extended service life.

• High Precision Manufacturing: Each gage is produced to exacting standards, ensuring precise measurement of major diameter, pitch, and thread form.

• Reduced Lead Times: SWTG's streamlined manufacturing processes enable shorter production cycles without compromising quality.

• Comprehensive Certification: All gages come with complete documentation traceable to national standards.

Complete Range of SWTG Stub Acme Thread Gages

Below is the comprehensive specification table for SWTG's Stub Acme thread ring and plug gages, including 2G and 3G tolerance classes:

Table: SWTG Stub Acme Thread Gage Specifications

Applications and Industries Served

SWTG Stub Acme thread gages serve critical quality control functions across multiple industries:

• Aerospace: For engine transmission screws and landing gear thread inspection

• Energy Equipment: Quality verification of oil drill pipes and valve screws

• Heavy Machinery: Precision control of CNC machine tool ball screws and lifting mechanisms

• Medical Devices: Meeting FDA micron-level tolerance requirements for implant threads

Why Choose SWTG Stub Acme Thread Gages?

SWTG has built its reputation on delivering high-precision thread gages with exceptional wear resistance and shorter production cycles compared to industry standards. Our technical expertise in manufacturing both standard and left-hand Stub Acme thread gages makes us the preferred choice for precision manufacturers worldwide.

For organizations requiring reliable thread inspection solutions for Stub Acme threads, SWTG offers comprehensive technical support and certification with every product. Our commitment to quality ensures that your threaded components meet exact specifications while reducing overall inspection costs through extended gage lifespan.

Contact SWTG today to discuss your specific Stub Acme thread gage requirements and experience the difference that precision engineering makes in your quality control processes.
