1 Introduction to UNJ Aerospace Threads

UNJ threads are a specialized and critical type of threaded fastening system used predominantly in the aerospace industry. The "UNJ" designation refers to a Unified National thread form with a controlled root radius on the external thread, a defining characteristic that differentiates it from standard UN thread forms. This mandatory root radius is a key design feature engineered to significantly enhance fatigue life and fracture toughness, making these threads exceptionally reliable under the high-stress, dynamic loading conditions experienced in aerospace and propulsion systems .

The geometric design of UNJ threads is meticulously governed by international aerospace standards to ensure uniformity, interchangeability, and supreme safety. Key standards include:

• ISO 3161:1999: Titled "Aerospace — UNJ threads — General requirements and limit dimensions," this international standard provides the foundational specifications .

• SAE AS8879D: This standard details the "Screw Threads - UNJ Profile, Inch Controlled Radius Root with Increased Minor Diameter." It specifies the requirements for the mandatory controlled radius and the accompanying increased minor diameter of both external and internal threads to accommodate this radius .

• SAE AS 1132K-2021: This standard defines the design requirements for bolts, screws, and nuts with UNJ inch series threads, highlighting their primary use in propulsion systems .

The rigorous standardization and superior mechanical properties of UNJ threads make them the preferred choice for critical applications, necessitating equally high-precision verification methods.

2 Sowant Precision Gage Co., Ltd. and the SWTG Brand

Sowant Precision Gage Co., Ltd. has established itself as a trusted manufacturer of high-quality precision measurement tools. The company's SWTG brand is synonymous with accuracy, reliability, and innovation in the field of dimensional metrology, particularly for complex thread forms like UNJ aerospace threads.

Understanding the critical need for reliability in aerospace manufacturing and maintenance, Sowant Precision Gage has dedicated significant resources to producing a comprehensive range of UNJ thread plug gages and UNJ thread ring gages under the SWTG brand. These tools are indispensable for quality control departments, thread manufacturers, and aerospace maintenance facilities worldwide, ensuring that produced UNJ threads conform strictly to the required dimensional limits and form specifications.

3 Key Features of SWTG UNJ Thread Gages

SWTG brand UNJ thread gages are engineered for exceptional performance and durability, incorporating several advanced features:

• High Precision and CNC Grinding: Every SWTG UNJ gage is manufactured using state-of-the-art Computer Numerical Control (CNC) grinding machines. This advanced manufacturing process guarantees exceptional adherence to the specified UNJ profile, including the precise control of the root radius, lead, angle, and pitch diameter. The result is a gage with superior geometric accuracy and surface finish.

• Comprehensive Inspection with Thread Scanners: To ensure every gage that leaves the factory meets the highest quality standards, Sowant employs full-parameter thread scanning technology. This sophisticated inspection process does not merely check a few key dimensions; it captures and analyzes the entire thread form in detail, verifying all elements—including the critical root radius, flank angles, and lead—against the strict limits defined in standards like SAE AS8879D . This commitment to 100% verification guarantees the integrity of the measurement process for the end-user.

• Short Delivery Lead Times: Despite the high level of customization and precision required for UNJ thread gages, Sowant Precision Gage has optimized its production and supply chain processes to offer remarkably short delivery times. This responsiveness helps aerospace companies and their suppliers minimize downtime and keep their projects on schedule, without compromising on quality.

4 SWTG UNJ Thread Ring Gage Product Specifications

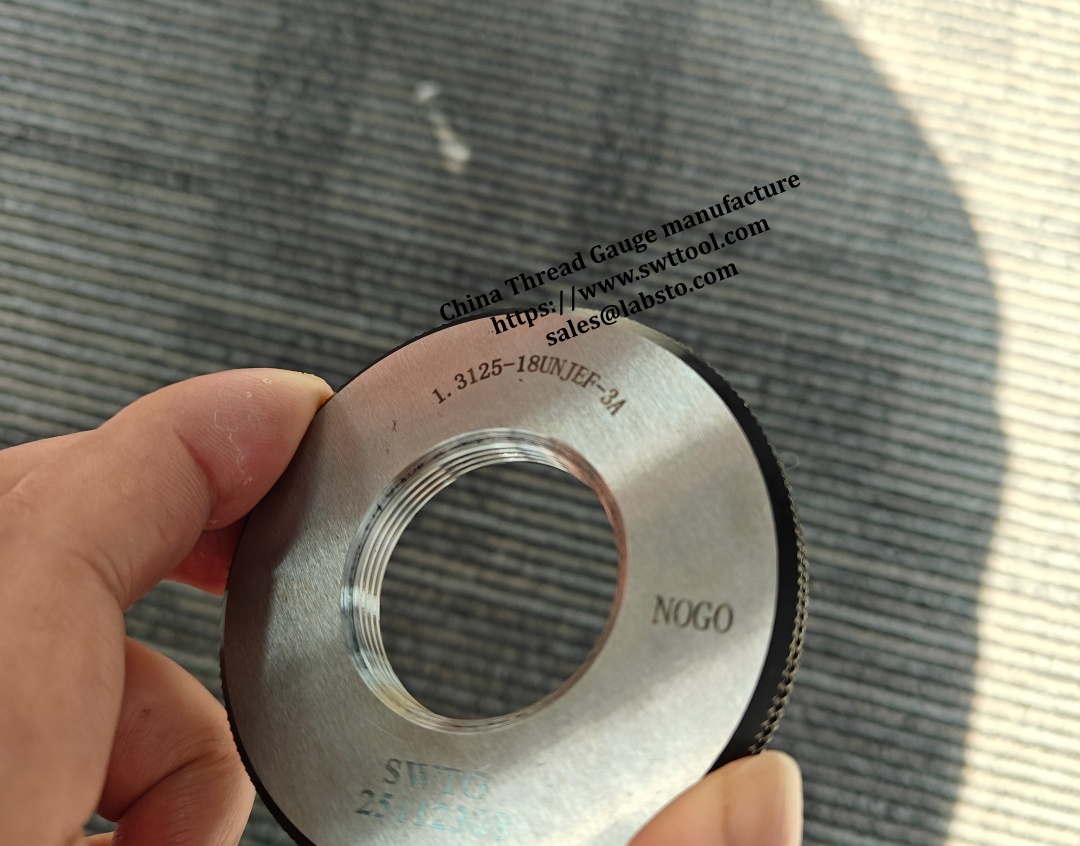

The following table lists 50 model specifications for SWTG brand UNJ Thread Ring Gages with nominal diameters greater than 1.25 inch, manufactured in China to the highest precision standards. These gages are designed for inspecting external UNJ threads according to aerospace requirements.

5 Conclusion

In the high-stakes world of aerospace engineering, where component failure is not an option, the integrity of every thread is paramount. UNJ threads, with their controlled root radius, provide the necessary mechanical advantage for safety-critical applications. Verifying these threads requires gages of the highest caliber. Sowant Precision Gage Co., Ltd., through its SWTG brand, delivers precisely that: high-precision UNJ thread ring and plug gages manufactured with advanced CNC grinding and rigorously inspected with full-parameter thread scanners. By offering reliable measurement solutions with short lead times, SWTG brand gages become an essential partner in upholding the stringent quality and safety standards of the global aerospace industry.
