3 1/8-4 Stub Acme-2G

   In the world of mechanical engineering, threads are the unsung heroes holding our machinery together. But when wall thickness is thin, or the application demands a coarse pitch without the full thread depth, engineers turn to the Stub ACME thread form. Governed by ASME B1.8, these threads offer the strength of the standard ACME (ASME B1.5) with a reduced height, making them ideal for tight spaces, thin-walled nuts, or where a shallower thread engagement is required.

    For decades, if you searched for thread gage or a China thread gage manufacturer, the results often pointed to a trade-off: you could have high-quality, traceable gauges with long lead times from the West, or you could have speed with questionable consistency from elsewhere. Today, that dynamic is changing.

In this article, we will explore the technical intricacies of Stub ACME thread gauges, analyze the calculation principles behind them, and introduce you to Sowant Precision Gage Co., Ltd. (SWTG)—a China thread gage manufacturer that is redefining quality expectations for precision measurement tools.

Understanding the Stub ACME Thread (ASME B1.8)

The Stub ACME thread is a modified version of the standard ACME thread. While the standard ACME (ASME B1.5) has a basic thread height of 0.5 × pitch (P), the Stub ACME reduces this to 0.3 × P . This creates a shallower, coarser thread that is less susceptible to damage and easier to coat or plate.

Key Characteristics

• Included Angle: 29° (same as standard ACME).

• Thread Height: h=0.3×Ph=0.3×P (compared to 0.5P for General Purpose ACME).

• Fit: Typically defined as Class 2G (General Purpose), though Classes 3G and 4G can be specified for tighter tolerances .

• Usage: Ideal for applications involving split nuts, thin-walled components, or where a standard ACME thread would require too much wall thickness.

ASME B1.5 vs. ASME B1.8: Similarities and Differences

It is crucial to understand that while these two standards share a geometry, they serve different purposes. Here is how they compare:

The Association: ASME B1.8 does not exist in a vacuum. It borrows the fit system from ASME B1.5. According to the standard, "The fit of Stub Acme threads corresponds to the Class 2G General Purpose Acme thread in ANSI B1.5" . Therefore, if you understand the tolerancing of an Acme gauge, you are already 90% of the way to understanding a Stub Acme gauge—the primary difference lies in the calculation of the basic diameters.

Calculation Principles for Stub ACME Thread Gauges

To manufacture or inspect a Stub Acme thread, we must calculate the three main diameters: Major, Pitch, and Minor. Let’s break down the formulas used by manufacturers like Sowant Precision Gage Co., Ltd. (SWTG) to ensure compliance.

Basic Formulas

For a given nominal diameter (DD) and threads per inch (nn), the pitch (PP) is calculated as:

P=1nP=n1​

The basic dimensions are derived as follows:

1. Basic Major Diameter (DD): Equal to the nominal size.

2. Basic Pitch Diameter (D2D2​): D2=D−0.3PD2​=D−0.3P

3. Basic Minor Diameter (D1D1​): D1=D−0.6PD1​=D−0.6P

Tolerances and Allowances (Class 2G)

Unlike standard 60° threads (like Unified or Metric), Acme and Stub Acme threads use allowances and tolerances specified in tables within ASME B1.5 (applied to B1.8). Generally:

• External Threads (Plug Gauges/Rings): The major diameter has a tolerance of −0.05P−0.05P. The pitch diameter has a specific allowance to ensure clearance.

• Internal Threads (Ring Gauges/Plugs): The minor diameter has a minimum value based on the basic size, with a maximum determined by adding 0.05P0.05P .

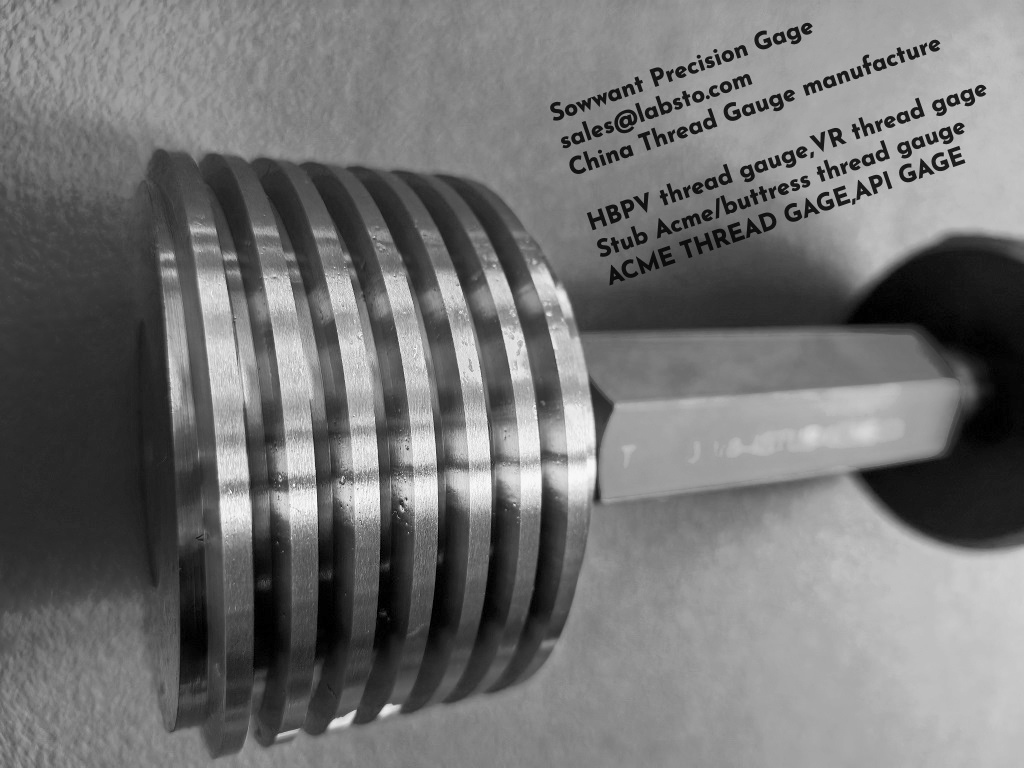

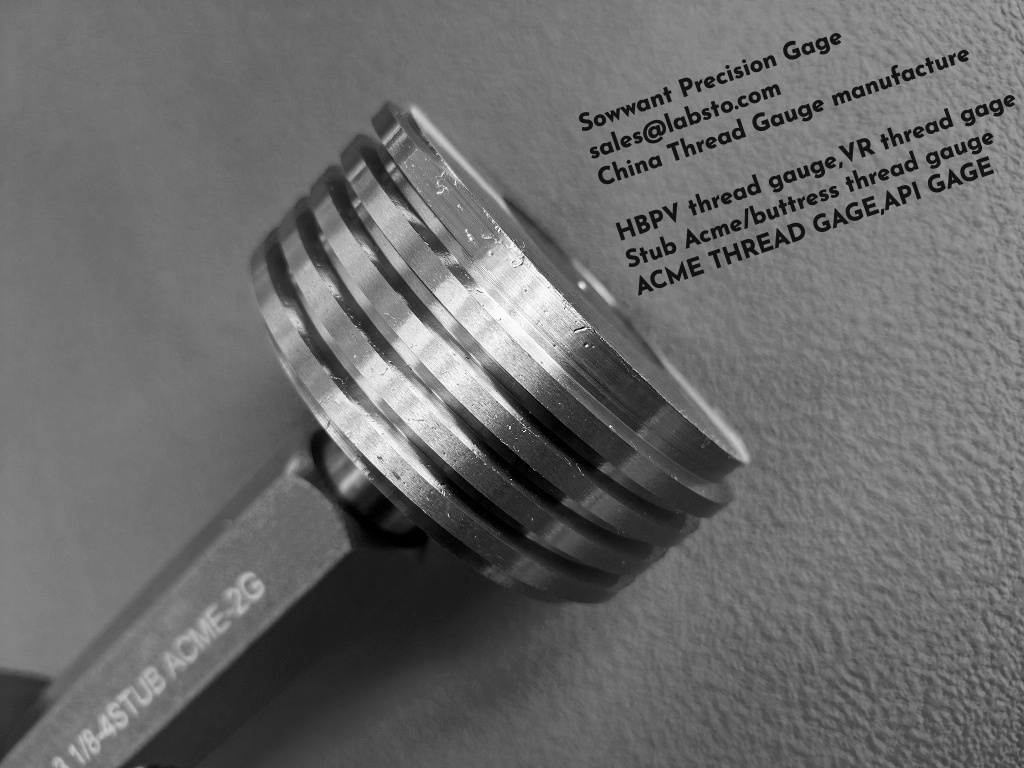

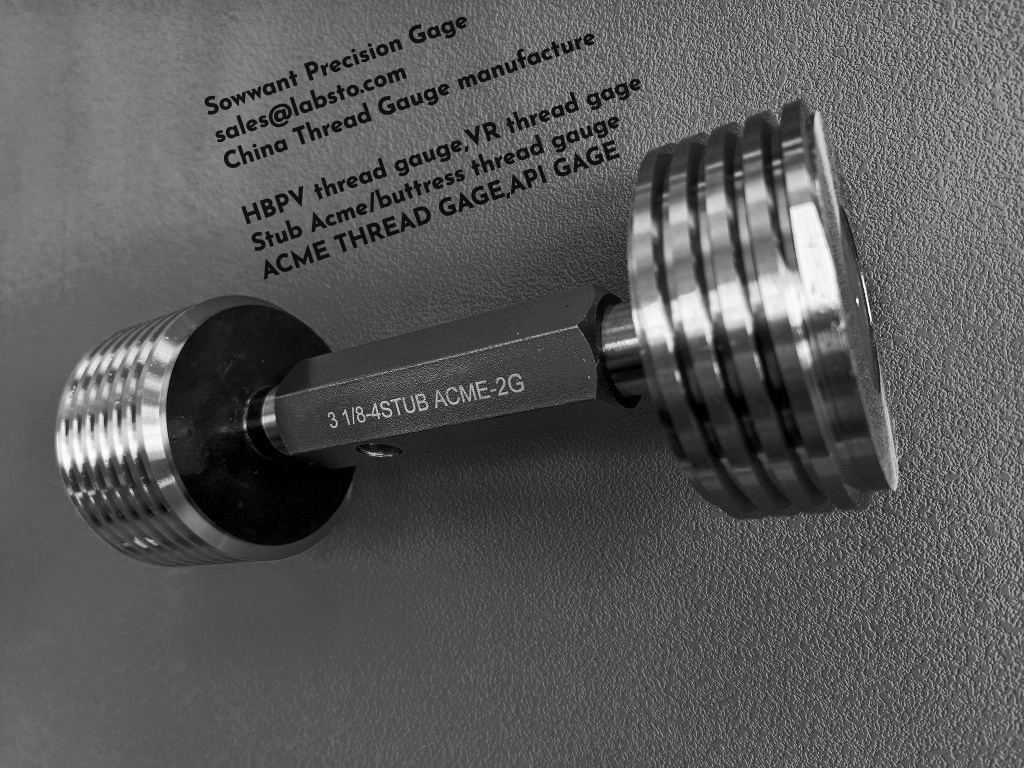

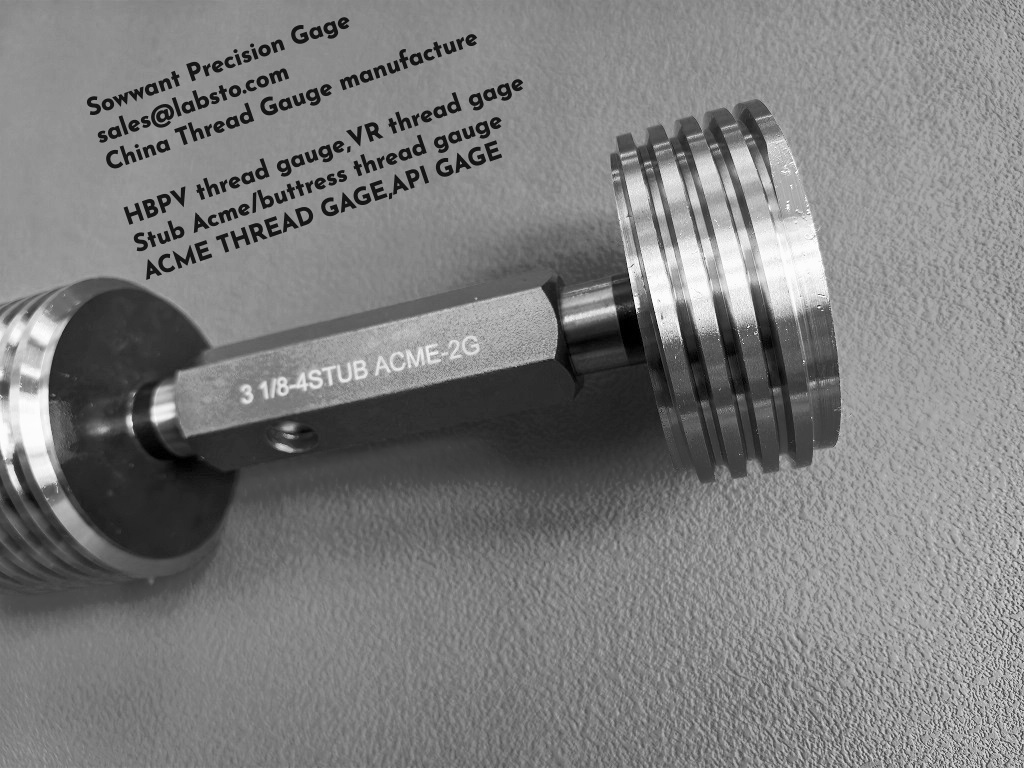

Case Study: 3 1/8-4 Stub ACME-2G Thread Plug Gauge

To demonstrate how these calculations work in practice, let’s analyze a specific thread: 3 1/8-4 Stub ACME-2G.

Step 1: Determine the Pitch

• Threads per inch (n) = 4

• P=1/4=0.250P=1/4=0.250 inches

Step 2: Calculate Basic Diameters

• Basic Major Diameter (DD): 3.1253.125 inches

• Basic Pitch Diameter (D2D2​): D−0.3P=3.125−0.075=3.050D−0.3P=3.125−0.075=3.050 inches

• Basic Minor Diameter (D1D1​): D−0.6P=3.125−0.150=2.975D−0.6P=3.125−0.150=2.975 inches

Step 3: Apply Allowances and Tolerances (Class 2G)

For a Thread Plug Gauge (used to inspect internal threads/nuts), the gauge represents the "maximum material" condition for the internal thread.

Using the formulas from ASME B1.8 and reference tables :

• Major Diameter (Internal Thread Nut):

  • Min: D+0.020D+0.020 (for coarse pitches) = 3.125+0.020=3.1453.125+0.020=3.145

  • Max: Min + Pitch Diameter Tolerance (approx. 0.0050 based on standard tables) = 3.1503.150

• Pitch Diameter (Internal Thread Nut):

  • Min: D2=3.050D2​=3.050 (Basic)

  • Max: D2+D2​+ Tolerance = 3.050+0.005=3.0553.050+0.005=3.055

• Minor Diameter (Internal Thread Nut):

  • Min: D1=2.975D1​=2.975 (Basic)

  • Max: D1+0.05P=2.975+0.0125=2.9875D1​+0.05P=2.975+0.0125=2.9875

For a Working Thread Plug Gauge (GO member), the gauge will be manufactured to the "Max" limits of the internal thread to ensure that the product nut can accept the gauge. This requires CNC precision to ensure that the pitch diameter, flank angles, and lead are perfectly controlled.

The Manufacturing Challenge: Achieving Western Quality in China

Historically, sourcing thread gage products from the West (like the US or Germany) guaranteed quality and adherence to ASME standards. However, this came with two significant drawbacks:

1. High Cost: Premium pricing for the brand and labor.

2. Long Lead Times: Typically 12–20 weeks for custom or large-sized gauges like the 3 1/8-4 Stub Acme example above.

Sowant Precision Gage Co., Ltd. (SWTG) has emerged as a disruptive force in this space. As a leading China thread gage manufacturer, SWTG bridges the gap between cost-efficiency and uncompromised quality.

Why SWTG Stands Out

• CNC Thread Grinding: All SWTG gauges are finished on CNC thread grinding machines. Unlike manual grinding or milling, CNC grinding ensures that the lead, flank angle (29°), and taper are held to tolerances that meet the strictest ASME B1.8 and B1.5 requirements.

• Full-Parameter Inspection: While many manufacturers stop at functional "GO/NOGO" testing, SWTG employs high-precision thread scanning equipment. Every thread gage is inspected for full-form parameters, ensuring that the pitch diameter, major diameter, minor diameter, and thread form are all within the specified limits .

• Third-Party Acceptance: One of the biggest fears for quality engineers is receiving a gauge that fails third-party calibration. SWTG gauges are manufactured to be compliant with ASME B1.5 and B1.8, and they can be sent to professional third-party labs for certification with confidence.

Global Footprint

Sowant Precision Gage Co., Ltd. (SWTG) has proven its mettle on the global stage. The company currently exports its high-quality thread gauges to demanding markets including Turkey, the UK, France, Germany, Italy, Bulgaria, the USA, Poland, South Africa, and Brazil.

This international presence confirms that the "Made in China" stigma is fading, replaced by a reputation for precision engineering, stable quality, and reliable delivery—qualities previously only associated with Western manufacturers.

Conclusion

The difference between a failed assembly and a perfect fit often comes down to a fraction of a millimeter in a thread gage. Whether you are working with the deep profiles of ASME B1.5 or the shallow, robust profiles of ASME B1.8, the accuracy of your inspection equipment is non-negotiable.

For engineers and procurement specialists looking for a reliable partner, Sowant Precision Gage Co., Ltd. (SWTG) offers the perfect equilibrium: the high quality and stability of Western-made gauges with the agility and value of a specialized China thread gage manufacturer.

If you have a requirement for standard or custom thread gauges—be it ACME, Stub ACME, or UN/ISO standards—ensure your measurement data is reliable by choosing a manufacturer that invests in CNC machinery and full-parameter inspection.

Contact Sowant Precision Gage Co., Ltd. (SWTG)
For inquiries or to request a quote for your next project, please reach out to:
