Thread Gage Design Criteria per ASME B1.2: Principles and the 5.2500-16UN-3A Ring Gage Example

Introduction

In the world of precision manufacturing and mechanical assembly, threaded fasteners represent one of the most fundamental and widely used connection methods. The reliability and interchangeability of these components depend on strict adherence to standardized dimensional and geometric specifications. ASME B1.2, titled Gages and Gaging for Unified Inch Screw Threads, serves as the definitive standard governing the design, manufacture, and application of thread gages used to inspect Unified inch screw threads (UN and UNR thread forms). This standard provides essential specifications and dimensions for all thread gages and measuring equipment used in verifying the conformance of product threads to the design requirements established in ASME B1.1.

This article presents a comprehensive overview of the fundamental design criteria established in ASME B1.2, with particular emphasis on major diameter, minor diameter, pitch diameter, flank angle, and pitch tolerance considerations. The discussion will then be concretized through a detailed analysis of a specific thread ring gage: the 5.2500-16UN-3A ring gage.

Overview of ASME B1.2

ASME B1.2 provides the metrological framework for inspecting Unified inch screw threads. The standard recognizes that product thread acceptability cannot be determined solely by independent measurements of individual parameters; rather, the functional performance of the thread depends on the cumulative interaction of multiple geometric characteristics. The pitch diameter, lead (pitch), and flank angle collectively define the functional diameter of a thread — the actual measured pitch diameter adjusted by the cumulative effects of lead error and angle error. This concept is central to the design of thread gages.

The standard establishes two categories of thread gages for external product threads: GO (Hi) thread ring gages and NOT GO (Lo) thread ring gages. The GO thread ring gage inspects the maximum material limit of the product external thread, ensuring that the product thread will assemble with its mating internal thread. The NOT GO thread ring gage inspects the minimum material functional diameter limit. According to ASME B1.2-1983, the NOT GO functional diameter is considered acceptable when the NOT GO thread ring gage, applied to the product external thread, does not pass over the thread by more than three complete turns, and the gage must not be forced.

Fundamental Design Criteria for Thread Gages

Major Diameter

The major diameter represents the largest diameter of an external thread or the largest diameter of an internal thread. For external product threads, the major diameter is a critical parameter that influences the thread's ability to engage with its mating internal thread and affects the strength of the threaded assembly.

The major diameter tolerance for external threads is established in ASME B1.1 and subsequently informs the gage design requirements in ASME B1.2. For Class 2A and Class 3A external threads, the major diameter tolerance is calculated using the formula:

Tolerance = 0.060 × P²/³

where P = 1 / n, and n is the number of threads per inch. For Class 1A threads, a larger tolerance of 0.090 × P²/³ is applied. These tolerances ensure that the major diameter falls within a range that provides adequate thread engagement without compromising the thread form integrity.

For Class 3A threads specifically, the maximum major diameter equals the basic major diameter without any allowance reduction, whereas Classes 1A and 2A incorporate an allowance that reduces the maximum major diameter. This distinction is important because it establishes the reference baseline from which gage dimensions are derived.

Minor Diameter

The minor diameter is the smallest diameter of an external thread or the smallest diameter of an internal thread. For external threads, the minor diameter is not a directly controlled dimension in the same manner as the major and pitch diameters. In practice, the minor diameter is considered satisfactory when the product thread is accepted by a standard GO thread gage in accordance with ASME B1.2. This approach recognizes that the functional acceptability of the thread is the primary concern, and that independent inspection of the minor diameter may not be necessary when functional gaging is employed.

For UN and UNR thread forms, the maximum minor diameter can be calculated as:

• For UNR threads: d₃max = d_max − 1.19078493 × P

• For UN threads: d₁max = d_max − 1.08253175 × P

These formulas establish the theoretical upper limits for the minor diameter, which must be respected in the design of thread gages to ensure proper clearance and thread engagement.

Pitch Diameter

The pitch diameter is arguably the most critical parameter in thread gage design because it directly governs the fit between mating threads. The pitch diameter is defined as the diameter of an imaginary cylinder whose surface passes through the thread profile at points where the thread width and groove width are equal.

For Class 3A external threads, the maximum pitch diameter equals the basic pitch diameter without any allowance. This differs from Classes 1A and 2A, which incorporate an allowance that reduces the maximum pitch diameter relative to the basic value. The absence of allowance in Class 3A results in a close-fit thread class suitable for applications requiring precise positioning and minimal clearance.

The pitch diameter tolerance for Class 3A threads is calculated using the formula:

Td₂ = 0.0015 × (D_bsc)¹/³ + 0.0015 × (LE)¹/² − 0.015 × (P²)¹/³

where D_bsc is the basic major diameter, LE is the length of engagement, and P is the thread pitch. This formula demonstrates that the pitch diameter tolerance depends on three factors: the nominal thread size, the length of engagement, and the thread pitch. Larger diameters and longer engagement lengths generally permit larger tolerances, reflecting the practical considerations of manufacturing and inspection.

For the gage itself, the pitch diameter must be controlled to even tighter tolerances than the product thread. ASME B1.2 defines specific gage tolerance classes — namely Class W and Class X — which govern the allowable variations in gage pitch diameter, lead, and angle. Class W gages are typically used for setting plugs and master gages, while Class X gages are used for working gages.

Flank Angle (Thread Angle)

The flank angle, also known as the thread angle, is the included angle between adjacent flanks of the thread form. The Unified thread form specifies a 60-degree symmetrical profile. This 60-degree angle is fundamental to the thread's load-bearing capacity and its ability to self-center during assembly.

For thread gages, the half-angle tolerance (deviation from the ideal 30-degree half-angle) is a critical gage design parameter. According to ASME B1.2, the tolerance on the half-angle of the thread is specified as part of the overall gage tolerance system. The allowable variation in half-angle is designed to ensure that the cumulative effect of angle errors, combined with lead errors, does not cause the functional diameter to exceed acceptable limits.

The interaction between flank angle error and pitch diameter is well established in thread metrology. For a 60-degree UN thread, any deviation from the nominal flank angle will affect the functional diameter, which is why gage tolerances must control both parameters simultaneously. The standard provides specific half-angle tolerance values that vary with the thread size and the gage classification.

Pitch (Lead) Tolerance

The pitch, defined as the axial distance between corresponding points on adjacent thread forms, is expressed as the number of threads per inch in the Unified system. For thread gages, the tolerance on lead (cumulative pitch error over multiple threads) is a critical specification.

ASME B1.2 specifies that the allowable variation in lead between any two threads shall not be farther apart than the length of the standard gage as shown in ANSI B47.1. For diameters above 12 inches, the tolerance is directly proportional to the tolerance in the ratio of the diameter to 12 inches. Additionally, for truncated setting plugs, the lead variations present on the full form portion and the truncated portion of an individual gage shall not differ from each other by more than 0.0001 inch.

The relationship between lead error and functional diameter is additive: lead error always increases the functional diameter of an external thread gage and decreases the functional diameter of an internal thread gage. This cumulative effect necessitates tight control over lead variations in precision thread gages.

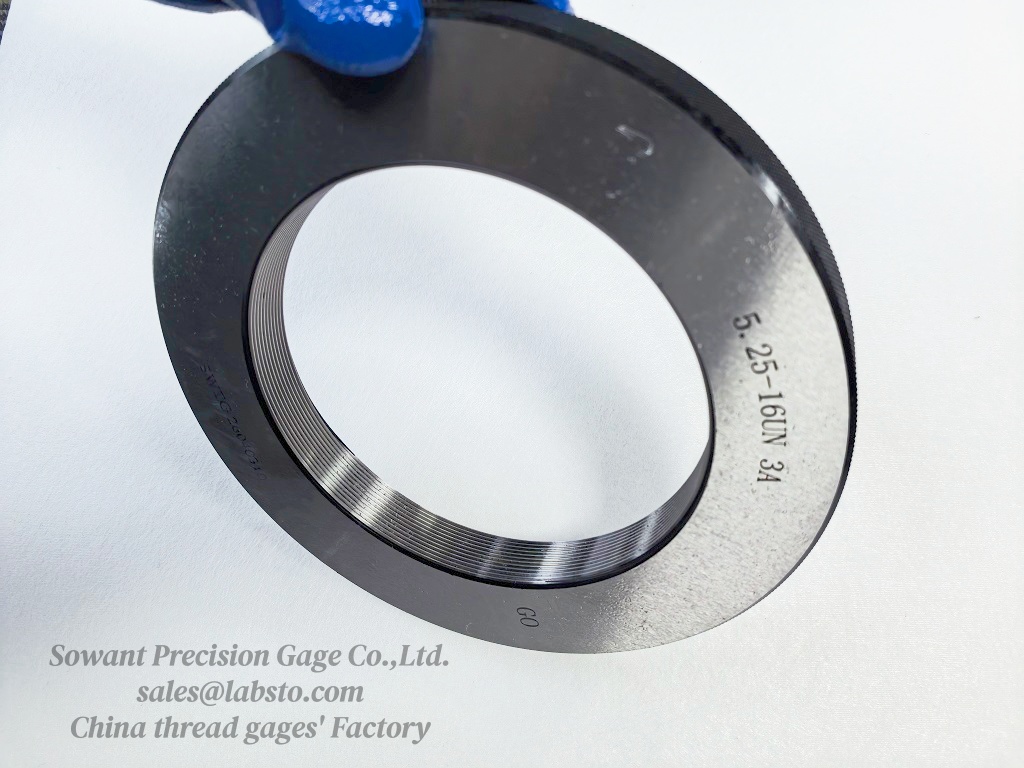

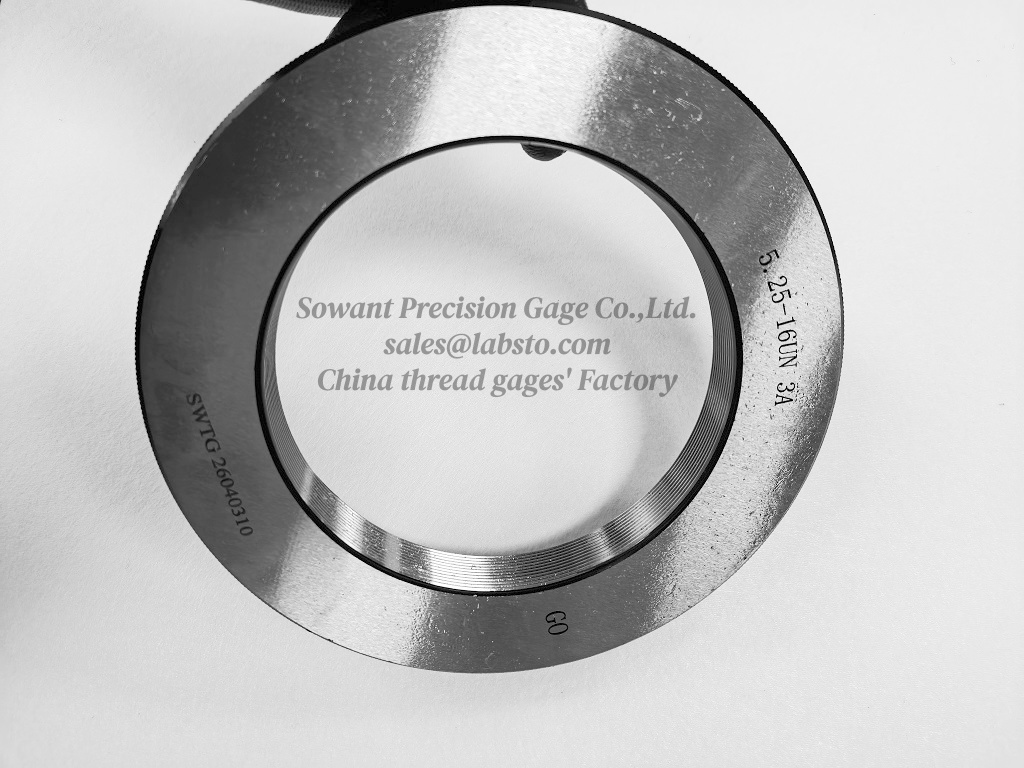

Detailed Analysis: 5.2500-16UN-3A Thread Ring Gage

The designation "5.2500-16UN-3A" provides a complete specification for both the product thread and, by extension, the corresponding inspection gage. The nomenclature can be interpreted as follows:

• 5.2500: Nominal major diameter in inches

• 16: Number of threads per inch

• UN: Unified National thread form (constant pitch series)

• 3A: External thread class (Class 3, external thread)

Fundamental Parameters

Thread Pitch (P): P = 1 / 16 = 0.0625 inches

Basic Major Diameter (D_bsc): 5.2500 inches

Basic Pitch Diameter: The basic pitch diameter can be calculated using the fundamental thread formula: D₂_bsc = D_bsc − 0.64951905 × P
= 5.2500 − 0.64951905 × 0.0625
= 5.2500 − 0.040595
= 5.2094 inches

Minor Diameter (UN Thread Form): d₁max = D_bsc − 1.08253175 × P
= 5.2500 − 1.08253175 × 0.0625
= 5.2500 − 0.067658
= 5.1823 inches (maximum value)

Thread Class 3A Tolerance Calculations

Class 3A represents the tightest tolerance class for external Unified threads. This class has no allowance (allowance = 0), meaning that the maximum major diameter and maximum pitch diameter are equal to their respective basic dimensions.

Major Diameter Tolerance (Td): Td = 0.060 × P²/³
For 16 threads per inch, P = 0.0625 inches, and P²/³ = (0.0625)⁰·⁶⁶⁷ = 0.1575 inches
Td = 0.060 × 0.1575 = 0.0094 inches

Major Diameter Limits:

• Maximum major diameter = 5.2500 inches (equals basic)

• Minimum major diameter = 5.2500 − 0.0094 = 5.2406 inches

Pitch Diameter Tolerance (Td₂): Using the formula with a typical length of engagement (assuming LE = 0.5 × D_bsc ≈ 2.625 inches for calculation purposes):
Td₂ = 0.0015 × (5.2500)¹/³ + 0.0015 × (2.625)¹/² − 0.015 × (0.0625²)¹/³
= 0.0015 × 1.738 + 0.0015 × 1.620 − 0.015 × (0.003906)¹/³
= 0.002607 + 0.002430 − 0.015 × 0.1575
= 0.005037 − 0.002363
= 0.0027 inches

Pitch Diameter Limits (Class 3A):

• Maximum pitch diameter = 5.2094 inches (equals basic)

• Minimum pitch diameter = 5.2094 − 0.0027 = 5.2067 inches

Gage Design Considerations

For a thread ring gage manufactured to inspect a 5.2500-16UN-3A product thread, ASME B1.2 requires that the gage's own dimensions be controlled to even tighter tolerances than the product thread it inspects. The GO thread ring gage is designed to represent the maximum material condition of the product external thread, while the NOT GO thread ring gage represents the minimum material functional diameter limit.

The gage tolerances for this size are specified under the Class W or Class X tolerance system. The pitch diameter of the setting plug used to calibrate the ring gage must be manufactured to Class X tolerance, while lead and angle tolerances are controlled to Class W specifications. The NOT GO thread ring gage must be set to the applicable W tolerance setting plugs.

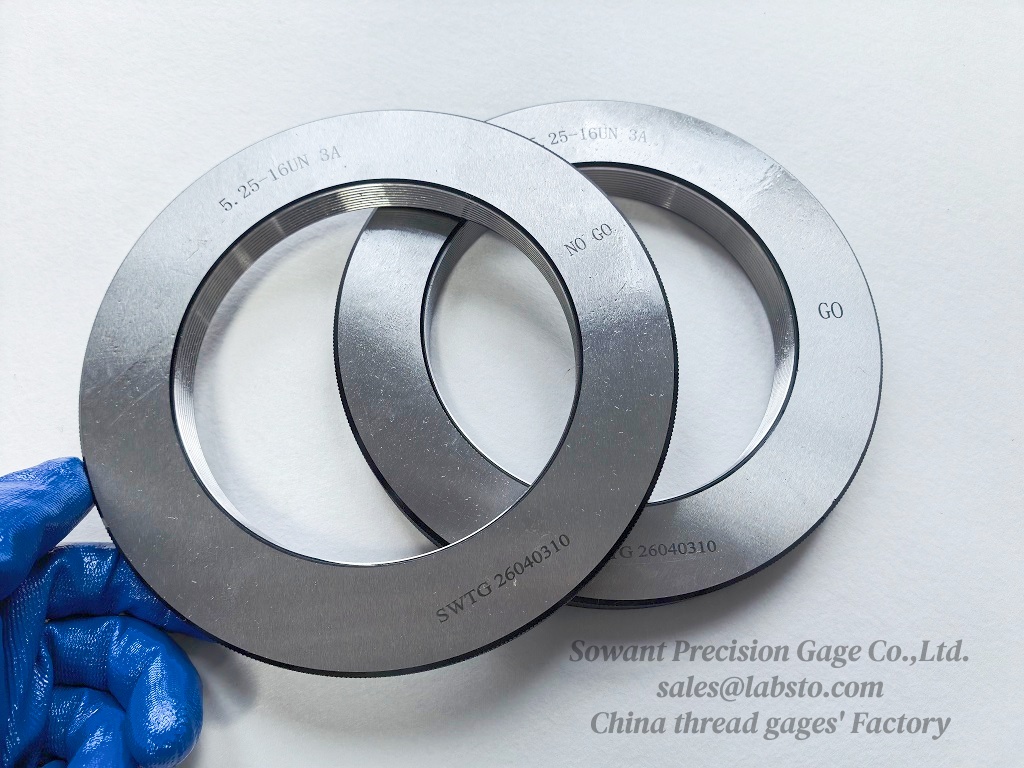

Gage Classification: Thread ring gages conforming to ANSI/ASME B1.2 are offered in both AGD (American Gage Design) and "True Round" styles. The selection between GO and NOT GO gages depends on the inspection requirement. A complete inspection typically requires both a GO ring gage and a NOT GO ring gage to verify that the product thread falls within the specified tolerance band.

Functional Diameter Consideration: The functional diameter of the gage is the actual measured pitch diameter adjusted by the cumulative effects of lead error and angle error. For an external thread ring gage, these errors are always added to the measured pitch diameter when determining functional acceptability. This principle ensures that the gage will properly represent the mating condition with an internal thread.

Summary Table of Key Parameters

Practical Implications for Inspection and Manufacturing

The design criteria established in ASME B1.2 have direct implications for both the manufacturers of thread gages and the quality assurance professionals who use them. Understanding the relationship between product thread tolerances and gage tolerances is essential for ensuring that threaded components will assemble and function as designed.

The acceptance criteria for NOT GO gages — allowing no more than three complete turns of engagement — represents a practical compromise between the ideal of zero engagement and the reality of incomplete starting threads on both the product and the gage. This criterion recognizes that starting threads are subject to greater wear and may not be fully representative of the complete thread form.

For critical applications, calibration and verification of thread gages must be performed at regular intervals. The three-wire method is commonly used for pitch diameter calibration at the recommended measuring force specified in ASME B1.2. This method provides a traceable measurement that can be used to verify that the gage remains within its specified tolerance limits.

Conclusion

ASME B1.2 establishes a comprehensive and rigorous framework for the design, manufacture, and application of thread gages used to inspect Unified inch screw threads. The standard's design criteria address each geometric parameter of the thread form — major diameter, minor diameter, pitch diameter, flank angle, and pitch — through a system of interdependent tolerances that collectively ensure functional interchangeability.

The 5.2500-16UN-3A thread ring gage exemplifies the application of these principles. With a major diameter of 5.2500 inches, 16 threads per inch, and Class 3A tolerances, this gage must be manufactured to exacting standards that are themselves more precise than the product thread being inspected. The interplay between basic dimensions, tolerance calculations, and gage classification underscores the sophistication of modern thread metrology.

For engineers, quality assurance professionals, and metrologists, a thorough understanding of ASME B1.2 is indispensable for ensuring that threaded fasteners meet their design intent and perform reliably in service. The standard's enduring relevance — reaffirmed as recently as 2017 — testifies to its fundamental importance in precision manufacturing and mechanical design.
