Sowant Precision Gage: 4 1/2-6UN-2A Thread Ring Gage – Precision and Reliability in Large-Diameter Thread Inspection

In the demanding fields of heavy machinery, oil and gas equipment, and large-scale industrial manufacturing, the accuracy of threaded connections is non-negotiable. For engineers and quality control professionals working with large unified threads, the 4 1/2-6UN-2A thread ring gage from Sowant Precision Gage represents the gold standard in functional thread inspection.

About Sowant Precision Gage

Sowant Precision Gage Co., Ltd. (SOWANT PRECISION GAGE CO., LTD.), established in 2009, has grown into a trusted name in the precision measurement industry. The company offers a complete line of solid American tolerance thread rings, unified inch, and metric thread gages, with its SWTG brand of thread ring gauges meticulously engineered to meet and exceed the rigorous demands of international standards. As the official authorized distributor for Vermont Gage in China, Sowant brings world-class American gaging technology to the global market.

Understanding the 4 1/2-6UN-2A Thread Ring Gage Designation

The designation 4 1/2-6UN-2A follows the Unified Inch Screw Thread standard (ANSI/ASME B1.1) and can be broken down as follows:

• 4 1/2 – Nominal major diameter of the thread, in inches (4.500 inches / 114.30 mm). This is a large-diameter thread commonly used in heavy-duty applications.

• 6 – Threads per inch (TPI), indicating a coarse pitch of approximately 4.233 mm.

• UN – Unified National thread form, a constant-pitch series (6UN) designed for large diameters ranging from 1 inch up to 6 inches.

• 2A – Tolerance class for external threads. Class 2A specifies a medium fit with an allowance (clearance) and a moderate tolerance, making it suitable for most general engineering applications where plating or coating may be applied.

Key Specifications of the 4 1/2-6UN-2A Thread Ring Gage

The table below summarizes the fundamental technical parameters of this thread ring gage:

Functional Parameters

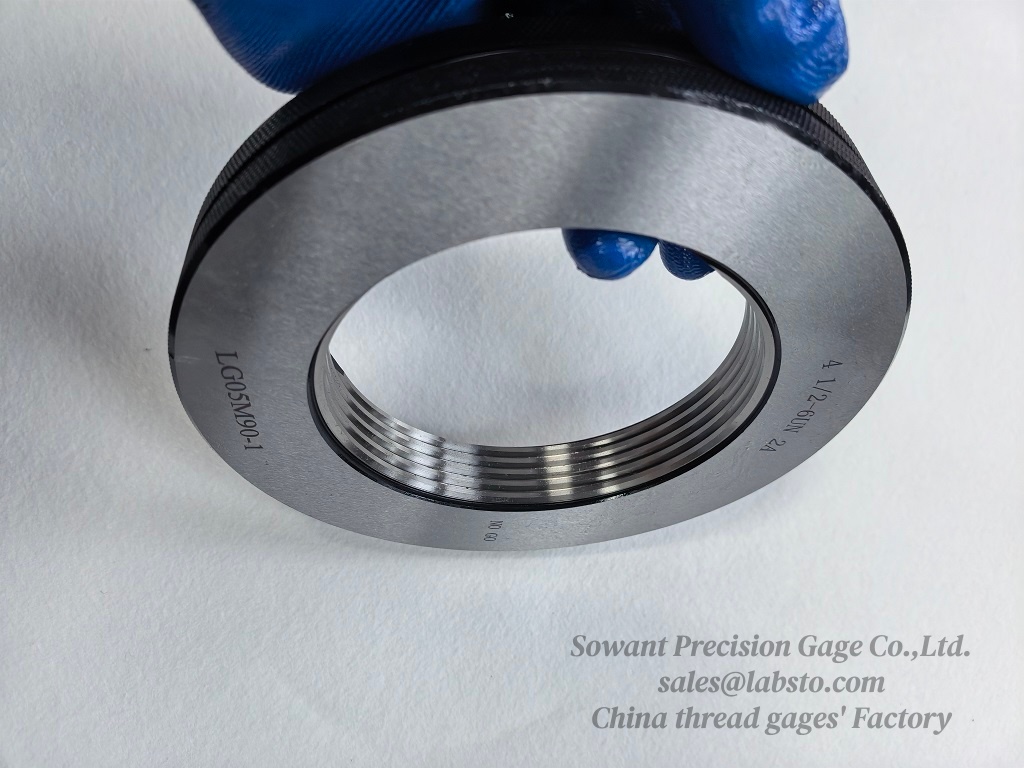

The 4 1/2-6UN-2A thread ring gage consists of two complementary members:

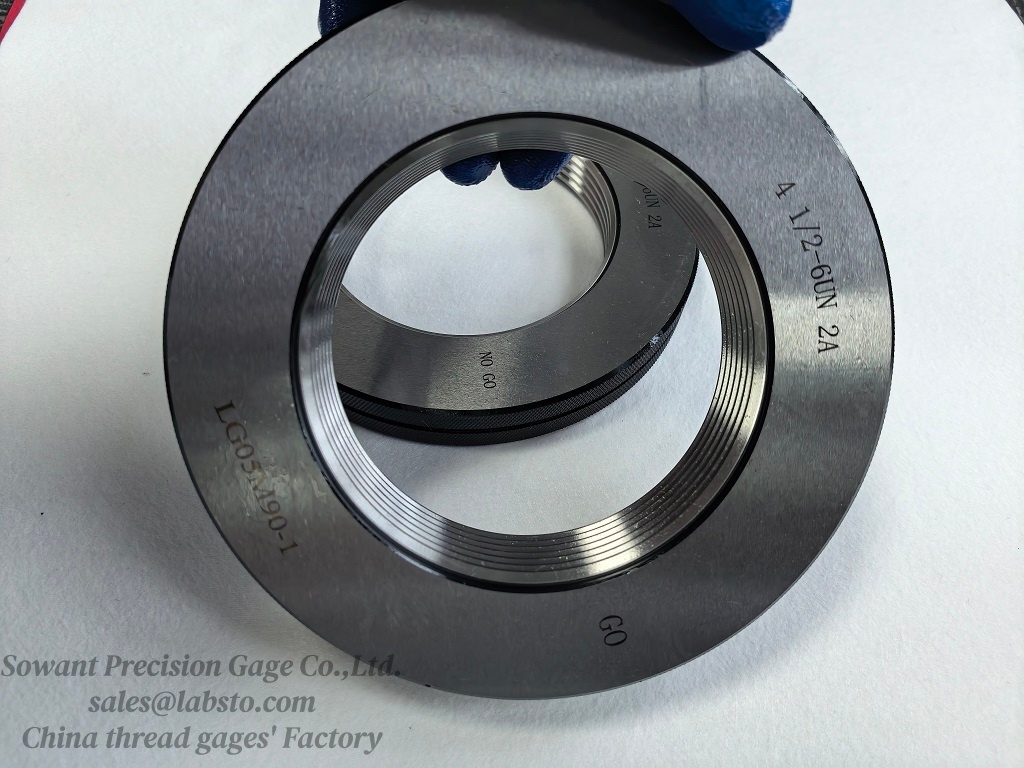

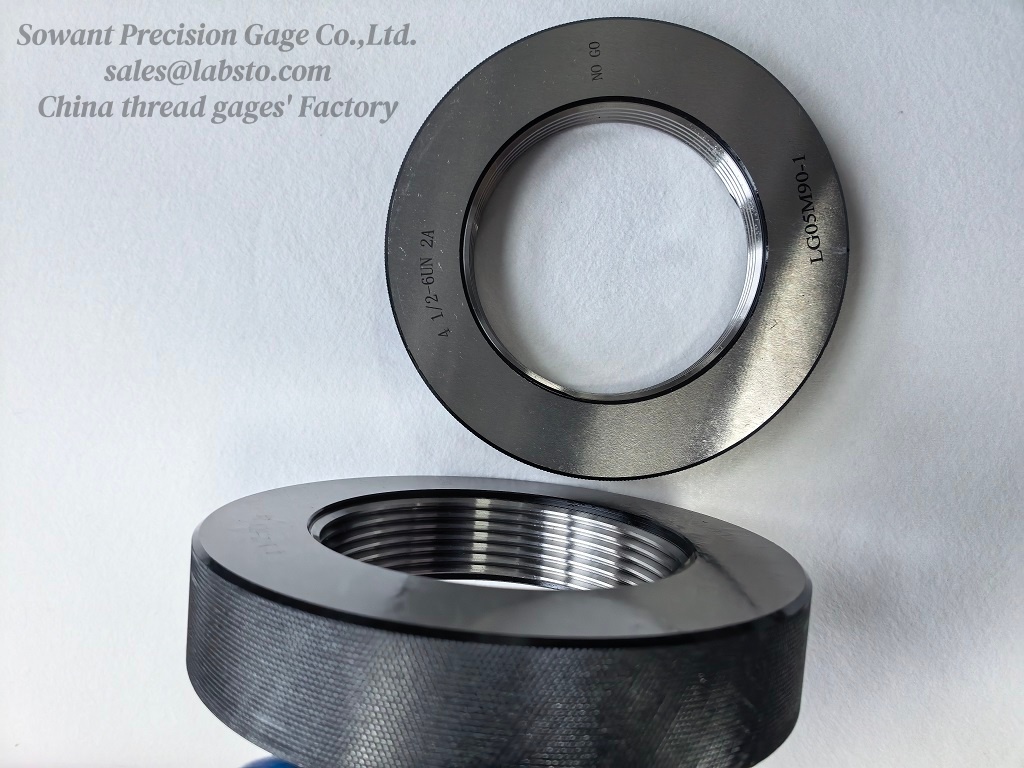

GO Ring Gage (Maximum Material Limit) – Manufactured with a minus tolerance on both the pitch diameter and major diameter, the GO member must screw freely and completely onto the external thread under inspection. It verifies that the product thread's virtual size, considering pitch and angle deviations, does not exceed the maximum material condition.

NOGO Ring Gage (Minimum Material Limit) – Built with a plus tolerance on the pitch diameter and major diameter, the NOGO member must NOT screw onto the inspected thread by more than a few turns (typically 2–3). This ensures that the thread pitch diameter does not fall below its prescribed minimum, thereby guaranteeing sufficient strength and preventing excessive looseness.

Pitch Diameter Considerations for Class 2A

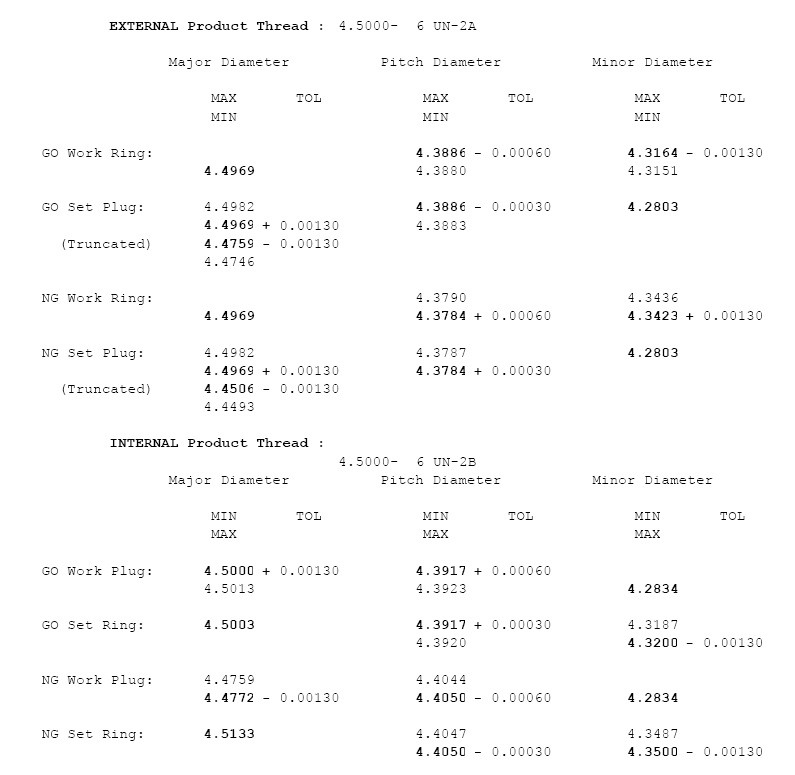

For Class 2A external threads, the pitch diameter tolerances are defined by the formulas in ASME B1.1. As a reference, for a 4.500-inch diameter with 6 TPI and a standard length of engagement, the 2A pitch diameter allowance ensures that the GO ring gage has a smaller (tighter) pitch diameter compared to a 3A ring gage, providing a functional clearance fit. Class 2A threads incorporate an allowance, meaning the basic pitch diameter is intentionally reduced to accommodate subsequent finishing operations such as plating or coating.

Basic Thread Dimensions (Theoretical)

*Note: Exact dimensions for 4 1/2-6UN threads are governed by ASME B1.1. The values above are representative; certified dimensional reports are provided with each gage from Sowant Precision Gage.*

Manufacturing and Quality Assurance

Sowant Precision Gage manufactures its SWTG brand thread ring gages using state-of-the-art full CNC machining, ensuring exceptional dimensional accuracy, superior surface finish, and unbeatable consistency. Each gage undergoes 100% full-parameter inspection using advanced thread scanning equipment, verifying critical parameters including major diameter, pitch, flank angle, and thread form against the theoretical profile.

All thread ring gages are produced in accordance with ANSI/ASME B1.2, with GO members manufactured to X tolerance for Class 2A and NOGO members also produced to X tolerance. The gages are made from premium tool steel, subjected to a stabilization process (cycling through temperature extremes) to ensure long-term dimensional stability. Every gage comes with a certificate of accuracy traceable to national standards.

Applications

The 4 1/2-6UN-2A thread ring gage is ideally suited for:

• Heavy machinery manufacturing – Large threaded shafts and fasteners in industrial equipment

• Oil and gas industry – Downhole tools, casing, and large-bore connectors

• Power generation – Turbine shafts and large-diameter bolting

• Aerospace ground support – Large structural fasteners and fixtures

• Marine and shipbuilding – Propeller shafts and heavy marine hardware

Conclusion

The 4 1/2-6UN-2A thread ring gage from Sowant Precision Gage delivers the precision, durability, and reliability required for the most demanding large-diameter thread inspection applications. Manufactured to the highest international standards (ANSI/ASME B1.2), backed by full CNC machining and 100% scanning inspection, and supported by Sowant's decades of expertise in precision measurement, this gage ensures that your large unified threads meet specification every time.

For custom requirements or special thread forms (UNS), Sowant Precision Gage also offers custom manufacturing based on customer thread prints, with typical lead times of three weeks
