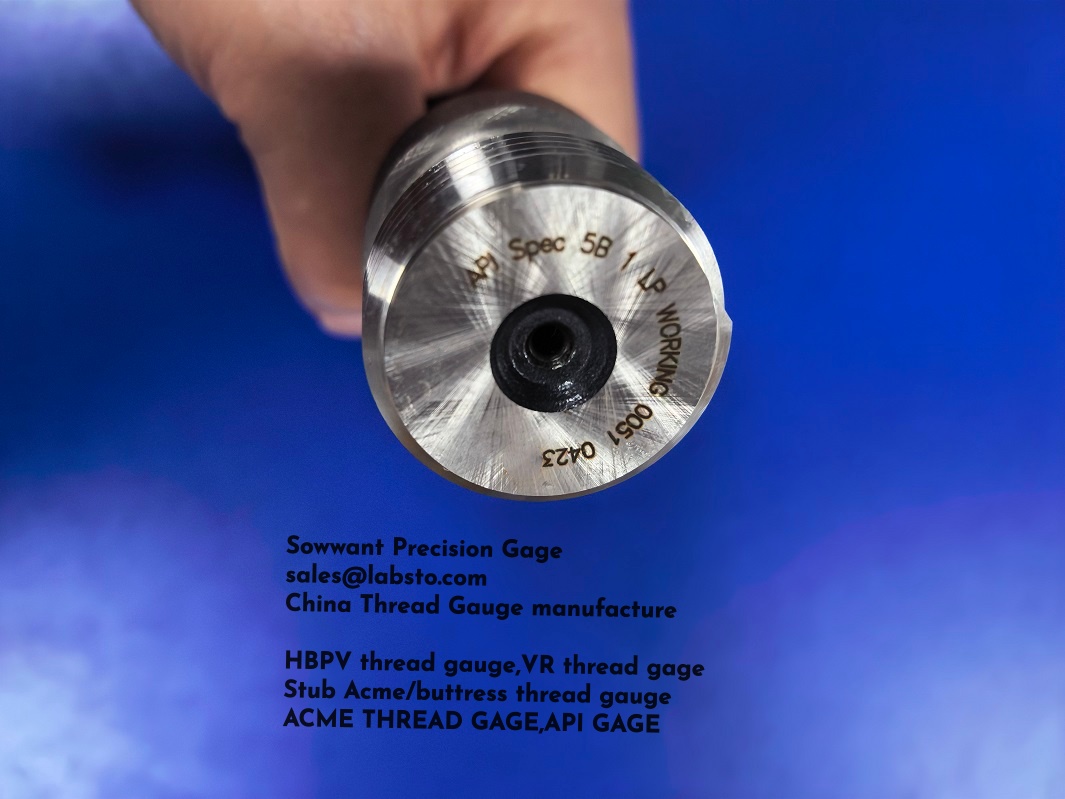

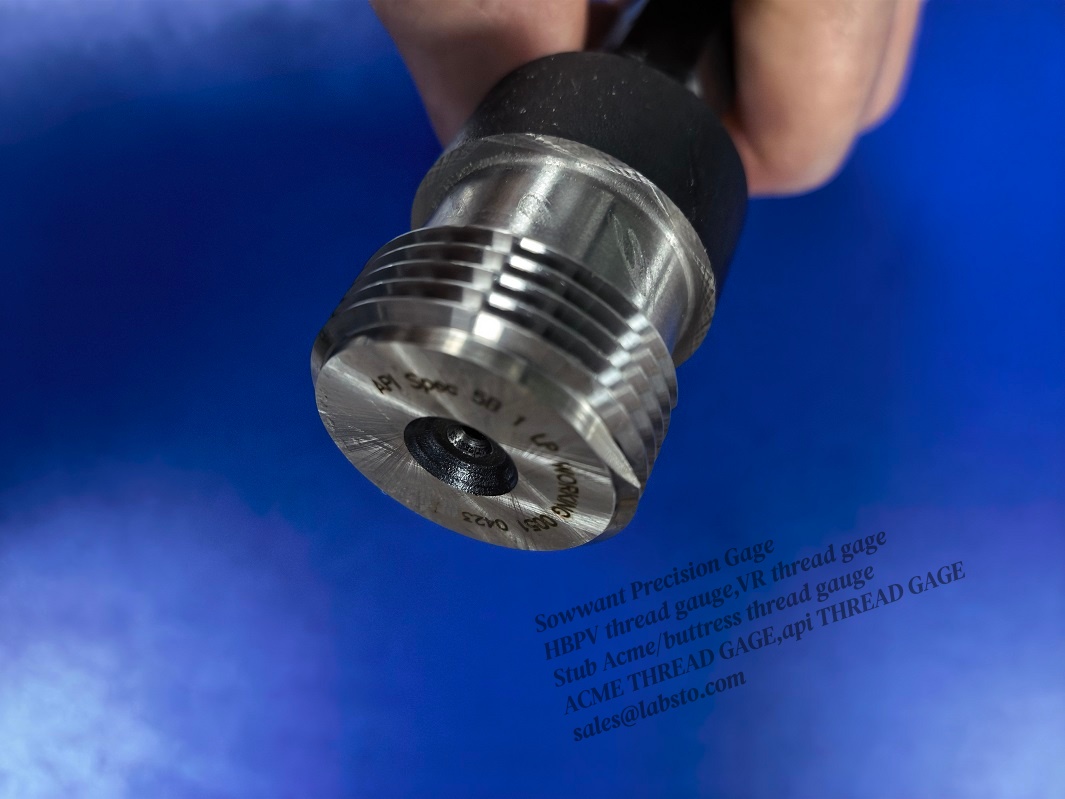

1” LP work Plug Gage

API SPEC 5B LP Thread Gauges: Comprehensive Specifications and the Expertise of China‘s Sowant Precision Gage

1. Introduction to API SPEC 5B and LP Thread Gauges

The American Petroleum Institute (API) Specification 5B stands as the definitive international standard for threading, gauging, and thread inspection of casing, tubing, and line pipe threads used in oil and gas operations. First established in response to the industry’s critical need for reliable threaded connections that can withstand extreme downhole conditions—including axial tensile loads near pipe yield strength, internal pressures up to 1,000 bar, corrosive gases, and temperatures approaching 200°C—API 5B transforms raw geological and engineering demands into standardized, optimized geometries that the entire oilfield industry trusts daily.

Among the various thread forms standardized by API 5B, the LP (Line Pipe) thread gauge occupies a vital position. Designed specifically for inspecting line pipe threads used in pipeline systems—from small-diameter gathering lines to large-diameter transmission pipelines—the LP thread gauge ensures that every threaded connection meets the rigorous dimensional tolerances required for leak-proof, durable, and safe pipeline operations. The LP designation distinguishes line pipe threads from other API thread types such as CSG (casing round thread), LCSG (long round thread casing), BCSG (buttress casing thread), and various tubing threads.

API 5B covers not only dimensional requirements for threads and thread gauges but also stipulates gauging practices, gauge specifications and certification requirements, as well as the instruments and methods for thread inspection. Working in seamless integration with pipe-body standards like API 5CT (for well casings) and API 5L (for pipelines), API 5B ensures that line pipe threads will fit perfectly and perform as expected in the most demanding operational environments.

2. Detailed Specifications and Parameters of LP Thread Gauges

LP thread gauges are precision-manufactured functional gauges used to verify both internal (via plug gauges) and external (via ring gauges) line pipe threads. They are designed to ensure that all critical thread elements—including taper, lead, flank angle, pitch diameter, thread height, and ovality—fall within the strict tolerances mandated by API SPEC 5B.

2.1 Core Thread Geometry

All API LP threads share a common foundational geometry regardless of nominal pipe size:

The 1:16 taper (or 0.75 inches per foot on diameter) is the defining feature of all API line pipe, casing, and tubing threads, creating a self-sealing interference fit when connections are properly made up. The 60° thread angle, combined with precision-ground thread flanks, ensures consistent load distribution and resistance to shear failure under axial tension.

2.2 Comprehensive LP Thread Gauge Size Specifications

The following table presents the complete range of API 5B LP thread gauge sizes, from the smallest 1/8-inch LP up to the largest 20-inch LP. The table includes nominal size designation, threads per inch (TPI), taper ratio, and the governing API 5B standard.

Note on “D” suffix sizes: In the size table below, sizes from 14″ through 20″ that are designated with a “D” suffix (e.g., 14D LP, 16D LP, 18D LP, 20D LP) indicate special nominal diameters for larger line pipe applications. The “D” designation in API 5B LP thread sizes historically denotes a departure from the standard nominal pipe size progression, accommodating thicker pipe walls and larger-diameter tubular goods encountered in high-volume transmission pipelines. Gauges bearing the “D” suffix are manufactured to the same fundamental 1:16 taper and 60° thread form, but with adjusted pitch diameter and standoff reference dimensions to match the specific pipe body geometry. When ordering gauges for 14″ through 20″ line pipe applications, customers should specify whether the “D” type or standard type is required, as this directly affects the gauge’s functional acceptance criteria.

Source: API (Oil) Thread Gauges specification; SOWANT API 5B LP thread gauge data.

2.3 Supplementary Dimensional Data for Selected LP Sizes

Beyond the core parameters of TPI and taper, API 5B also specifies precise diameter dimensions for each LP size. The following data provides additional detail for commonly specified LP thread gauges:

Source: sowant API 5B line pipe working gauge specifications.

For sizes such as 5″ LP, the pitch diameter (the theoretical diameter at which the thread thickness equals the thread space) is 138.412 mm, and additional reference dimensions such as L1 length (23.80 mm) and L4 length (46.74 mm) are specified for complete functional inspection.

2.4 Gauging Practice per API SPEC 5B

API SPEC 5B requires that thread inspection include measurements of the following critical parameters, all of which must be verified using calibrated LP thread gauges:

• Standoff: The axial distance between the pipe end and the gauge reference plane

• Diameter: Functional pitch diameter verified via plug and ring gauge testing

• Ovality: Out-of-roundness condition of the pipe cross-section

• Addendum: Distance from pitch cone to thread crest

• Taper: Consistency of the 1:16 tapered profile along the thread length

• Lead: Axial travel per thread turn, measured over a specified length

• Thread Height: Radial height from root to crest of the thread form

• Flank Angle: Angular orientation of the load and stabbing flanks

Ring and plug gauges are specifically designed to measure the functional size of an internal or external thread, while individual thread elements are measured with one or more specific instruments as detailed in API SPEC 5B.

3. Complete Listing of All LP Models in API SPEC 5B

Based on API SPEC 5B and verified by multiple gauge manufacturers including GSG/PMC (KURODA), Deko Corp, and Sowant Precision Gage, the complete set of standard API 5B LP thread gauge models is presented below. These models are available both as working gauges (used in production and field inspection) and as reference master gauges (used for calibrating working gauges).

Complete API 5B LP Model List

Source: API (Oil) Thread Gauges—LP Line Pipe specifications.

Model Identification Guide

When ordering LP thread gauges, the standard naming convention follows this pattern: [Size] LP [Gauge Type] .
For example:

• “3/8 LP RING & PLUG” refers to a full set of both ring and plug gauges for 3/8-inch line pipe threads.

• “2 LP PLUG” refers specifically to the plug gauge for 2-inch LP threads.

• “14D LP RING” refers specifically to the ring gauge for 14-inch “D” type LP threads.

API SPEC 5B also recognizes that line pipe threads are distinct from casing threads (CSG and LCSG) and tubing threads (TBG and UPTBG), each with their own gauge specifications.

4. Sowant Precision Gage: China’s Premier API Thread Gauge Manufacturer

4.1 Company Profile and Mission

Sowant Precision Gage Co., Ltd. (苏州斯文克精密测量设备有限公司) , founded in 2012 and headquartered in the Suzhou Wuzhong National Innovation Park (later relocated to the newly constructed Wusong River Business District), has established itself as a full-service gage company that combines deep technical expertise with extensive commercial reach. From its inception, the company has focused on supplying precision measuring instruments to the Chinese petroleum industry, evolving into a leading manufacturer of API thread gauges and specialized measurement solutions.

Sowant Precision Gage’s manufacturing capabilities include threaded and plain cylindrical plug gauges produced in a variety of materials—chrome-plated, tin-coated, carbide, ceramic, and other specialized materials. The company also manufactures special gauges including pre-plates, multiple-start threads, special leads, and acme thread gauges.

4.2 API Thread Gauge Product Portfolio

As a specialized thread gauge manufacturer, Sowant Precision Gage offers a comprehensive array of API SPEC 5B thread gauges covering all major thread types:

Source: China API thread gauge supplier data.

4.3 Advanced Single-Parameter Measuring Instruments

Beyond traditional plug and ring gauges, Sowant Precision Gage has developed a suite of innovative single-parameter measuring instruments in direct response to the evolving requirements of API SPEC 5B (16th edition).

These include:

Taper Measuring Instruments (Patented Products)

• JZW Series (External Thread Taper) : Models covering ranges from under 10 inches to 20 inches, with dial ranges of 0–0.5 inches and resolution of 0.001 inch

• JZN Series (Internal Thread Taper) : Models covering ranges from 1 to 16 inches, with dial ranges of 0–0.5 inches and resolution of 0.001 inch

Pitch Diameter Measuring Instruments (Patented Products)

• ZJY Series: Models for both external and internal thread pitch diameter measurement, including ZJY5-W (< 5-1/2 inches), ZJY20-W (2-3/8 to 20 inches), ZJY5-N and ZJY20-N

• BZG Series: Calibration standards for pitch diameter measuring instruments

Addendum (Thread Height) Gauges

• WDGN Series (Internal) : For 10 TPI and 8 TPI threads of 5-1/2 inches and larger, measuring range 0–3.5 mm with 0.01 mm resolution

• WDGW Series (External) : Same specifications for external thread addendum measurement

Buttress Thread Tooth Thickness Gauges

• CDGK / BCHG Series: For buttress casing threads (4-1/2 to 13-1/2 inches), 0–2 mm range with 0.01 mm resolution

These instruments enable thread manufacturers and field inspectors to verify individual thread elements—taper, lead, pitch diameter, height, addendum, tooth thickness, crest diameter, ovality, form, and angle—with exceptional precision.

4.4 Alignment with the Latest API SPEC 5B (16th Edition and Beyond)

The American Petroleum Institute released the 16th edition of API SPEC 5B with an effective date of July 1st following its publication. Since its release, this edition has been widely adopted by oil pipe manufacturers, measuring tool manufacturers, oilfield users, and testing and calibration institutions worldwide. Sowant Precision Gage has remained at the forefront of this evolution, with their products designed to meet all new required element inspections introduced in the 16th edition, including addendum verification, buttress tooth thickness/groove width measurement, crest diameter and ovality inspections with new setting standards, and thread form and angle verification.

Currently, the 17th edition of API SPEC 5B is being widely solicited from the industry, and Sowant actively monitors these developments to ensure its products remain compliant with forthcoming requirements.

4.5

Sowant Precision Gage operates with rigorous quality assurance protocols. Each working gauge is inspected by master gauges following production, and a corresponding calibration certificate is provided with every thread gauge shipment. Calibration certificates are traceable to recognized national and international standards (ISO, DIN, GB). The company cooperates with renowned testing organizations including Aerospace Metrology and Huasu Inspection to provide repair and calibration services for adjustable thread ring gauges and plug gauges.

5. Conclusion

The API SPEC 5B LP thread gauge serves as the cornerstone of quality assurance for line pipe threaded connections in the global oil and gas pipeline industry. With a comprehensive size range spanning from 1/8 inch to 20 inches, a consistent 1:16 taper and 60° thread angle, and inspection requirements covering all critical thread elements, these gauges ensure that pipeline connections perform reliably under extreme downhole and transmission conditions.

China‘s Sowant Precision Gage Co., Ltd. has emerged as a premier manufacturer and supplier of API SPEC 5B LP thread gauges and associated single-parameter measuring instruments. With in-house manufacturing capabilities spanning API LP, CSG, LCSG, BCSG, TBG, and UPTBG thread gauges—coupled with patented taper and pitch diameter instruments, alignment with API SPEC 5B 16th edition requirements, and strategic international partnerships—Sowant represents the gold standard for precision thread gauging in the Chinese oil and gas equipment sector and beyond.

For companies seeking reliable, API-compliant LP thread gauges backed by engineering expertise, comprehensive calibration certifications, and responsive customer support, Sowant Precision Gage offers the ideal combination of Chinese manufacturing capability and international quality standards.
