2.750-5 ACME-2G

ASME B1.5 Acme Thread Ring Gauges: Detailed Parameter Calculations, Gauging Methods, and the Expertise of China‘s Sowant Precision Gage

1. Introduction to ASME B1.5 and Acme Thread Gauges

Acme threads, developed in the 1890s, were designed to replace square threads and other formed threads to produce traversing motions on machines, tools, and for heavy load applications. The Acme thread form offered significant advantages over square threads, which had straight-sided flanks, were difficult to manufacture with available cutter technology, and were inherently weak at the base of the thread due to sharp 90-degree flank angles.

The ASME B1.5 standard (Acme Screw Threads) provides complete specifications for two general applications of Acme threads: General Purpose and Centralizing. The limits and tolerances in this standard relate to single-start Acme threads and may also be applied to multiple-start Acme threads when appropriate—the latter being used to provide relatively fast traversing motion when necessary.

Acme Thread Gauges are used to gage internal threaded products (via plug gauges) and external threaded products (via ring gauges). All Acme threads feature a distinctive 29-degree included angle measured between the sides of the thread in an axial plane, making it broader, stronger, and more square than standard V-shaped threads. This 29° trapezoidal form provides superior wear properties, load capabilities, and tolerances compared to conventional threaded rod, making Acme threads the best choice for power transmission and carrying loads.

2. ASME B1.5 Thread Classes and Applications

2.1 General Purpose Acme Threads (G Series)

General Purpose Acme threads are designed to ensure interchangeability with three classes of fit and to condense the inventory of both tools and gauges. The three classes (2G, 3G, and 4G) of General Purpose threads provide clearances on all diameters for free movement, relying on the thread flanks to maintain concentric operation.

Class 2G is the most commonly used thread class of fit, while Classes 3G and 4G should be used if less backlash is required. If less backlash is desired in Acme threads, 3G and 4G classes are used.

2.2 Centralizing Acme Threads (C Series)

Centralizing Acme threads share the same basic dimensions as General Purpose threads, but with a restricted clearance at the major diameter of both internal and external threads. This design maintains approximate alignment of the thread axis and prevents wedging on the flanks, making them better suited for high-load applications. Centralizing Acme thread gauges are designated by the letter C, with classes of fit designated as 2C, 3C, and 4C.

3. Fundamental Parameters and Calculation Formulas for Acme Threads

3.1 Core Thread Geometry

All ASME B1.5 General Purpose Acme threads share the following foundational parameters:

The basic thread height of General Purpose Acme threads is 0.5P, meaning the single depth equals half the pitch. The thread thickness at the pitch line equals P/2.

3.2 Basic Dimension Formulas

The following formulas, defined in ASME B1.5, are used to calculate the basic dimensions of any Acme thread:

The pitch diameter can also be approximated as the average of the minor and major diameters of the thread.

3.3 Pitch Diameter Tolerances

ASME B1.5 provides tables of tolerances in terms of pitch and diameter, allowing for a wide choice of diameters for a given standard pitch. By using formulas for diameter and pitch increments, the pitch diameter tolerances for special diameters and pitches can be determined for each class.

External (Product) Thread Pitch Diameter Tolerances (General Purpose Classes)

Sources: ASME B1.5 tolerance tables for General Purpose Acme threads.

For the 4 TPI case (as in the 2.750-5 ACME-2G gauge discussed in this article), the 2G pitch diameter tolerance for external threads is approximately 0.0150 inches.

It should be noted that the tolerance on the minor diameter of all external threads is 1.5 times the pitch diameter tolerance.

4. Detailed Parameter Calculation for Acme Thread Ring Gauges

An Acme Thread Ring Gauge (GO/NO-GO set) is used to inspect external Acme threaded product. All Acme Thread Ring Gauge lengths and blank standards are per ASME B47.1. The gauging system specified in ASME B1.3M for 60-degree threads is applicable for 29-degree Acme threads, except for some specific gage requirements.

4.1 Working Gauge Dimensions

Working thread ring gauges are designed with specific pitch diameters that correspond to the acceptance limits of the product thread. The GO ring gauge represents the maximum allowable pitch diameter of an external thread, while the NO-GO ring gauge represents the minimum allowable pitch diameter. The gage pitch diameters are calculated as follows:

GO Ring Gauge Pitch Diameter = Maximum External Product Pitch Diameter + Gage Maker’s Tolerance (offset)

NO-GO Ring Gauge Pitch Diameter = Minimum External Product Pitch Diameter — Gage Maker’s Tolerance (offset)

4.2 The Three-Wire Method for Acme Pitch Diameter Measurement

ASME B1.5 (Appendix E) describes the Three-Wire Method of Measurement of Pitch Diameter for 29-degree External Acme Screw Threads. This method uses precision-ground wires of a specific diameter placed between the thread flanks, with measurements taken over the wires using a micrometer.

For Acme threads, the formula for pitch diameter calculation using the three-wire method is as follows:

PD = M — P(cos α) + B

Where:

• PD = Pitch Diameter

• M = Measurement over wires (micrometer reading)

• P = Pitch

• α = Half the included angle (14.5° for Acme threads)

• B = Wire constant based on the specific wire diameter and thread geometry

5. Detailed Specifications: 2.750-5 ACME-2G Thread Ring Gauge

The 2.750-5 ACME-2G thread ring gauge is a representative example of a medium-diameter Acme gauge used in heavy-duty power transmission, lead screw applications, and industrial machinery. Below are the complete engineering specifications for this gauge.

5.1 Nominal Designation Interpretation

5.2 Basic Dimensional Parameter Calculations

Pitch Diameter Calculation Walkthrough:
The basic pitch diameter for an external 2.750-5 ACME thread is derived as follows:

• Start with the nominal major diameter: 2.7500 inches

• Calculate the pitch: P = 1 ÷ 5 = 0.200000 inches

• Basic thread height = P/2 = 0.100000 inches

• Basic pitch diameter = D — (P/2) = 2.7500 — 0.1000 = 2.6500 inches

5.3 2G Class Tolerances for 2.750-5 Acme Product Thread

Based on ASME B1.5 tolerance tables for General Purpose Acme threads (5 TPI), the product thread tolerances are as follows:

For the 4 TPI general case (the standard reference—please note that the 2.750‑5 ACME-2G has 5 TPI, not 4 TPI; the tolerance values in the table above are derived for 5 TPI), the 2G pitch diameter tolerance for external threads is approximately 0.0150 inches.

It is important to reiterate that the allowance on the major diameter of external threads, as well as the minor diameter allowances and tolerances, follow the formulas and data provided in ASME B1.5.

5.4 Working Gauge Pitch Diameter Limits (2.750-5 ACME-2G Thread Ring Gauge)

For the GO/NO-GO thread ring gauge set used to inspect the 2.750-5 ACME-2G product thread, the working gauge pitch diameters are specified as follows:

Note: The gage maker’s tolerance (typically ±0.0001 to ±0.0002 inches for precision-ground gauges) is applied to ensure that working gauges correctly accept good parts and reject bad parts.

5.5 Physical Gauge Specifications

5.6 Comparison of Pitch Diameters with Adjacent Standard Sizes

For context, the basic pitch diameters of Acme thread sizes surrounding 2.750-5 are presented below:

6. Proper Usage Methods for Acme Thread Ring Gauges

Correct usage of Acme thread ring gauges is essential to ensure accurate inspection results and to prolong gauge life.

6.1 Pre-Gauging Preparation

1. Select the correct gauge size — Verify that the gauge’s major diameter, TPI/pitch, and class of fit match the product specification.

2. Confirm gauge calibration — Ensure that the gauge has been calibrated and that the calibration is current. It is advisable to recheck thread ring gauges prior to use with the matching set plug, regardless of the calibration sticker‘s status.

3. Clean the workpiece — Thread ring gauges are not work dies. Clean the workpiece prior to gauging to extend the wear life of the ring gauges.

4. Clean the gauge — Ring gauges should be cleaned with solvent or air and then frequently recoated with a rust preventative/gage preservative.

6.2 GO / NO-GO Gauging Rules

For external Acme threads being inspected using ring gauges, the following rules apply:

The GO gauge confirms that the part is not oversized, while the NO-GO gauge ensures the part is not undersized.

It is important to use the NO-GO gauge as it checks the pitch diameter exclusively—it is unaffected by other conditions in the screw thread.

6.3 Best Practices and Safety

6.4 Identifying Potential Thread Defects

If the GO gauge fails to screw on smoothly or binds prematurely, possible causes include:

• Oversized thread or tapered thread

• Lead error in the thread form

• Damaged thread or burrs on the workpiece

• Cross-threading from improper starting alignment

The inspector can evaluate critical thread elements by:

• Measuring the major diameter using a micrometer

• Checking the pitch diameter using the three-wire method

• Inspecting lead, angle, and minor diameter with an optical comparator or vision system

7. Sowant Precision Gage — ASME B1.5 Acme Thread Ring Gauge Manufacturer

7.1 Company Profile

Sowant Precision Gage Co., Ltd. (苏州斯文克精密测量设备有限公司) , established in 2009 (relocated in 2012), is headquartered in the newly developed Wusong River Business District in Suzhou, China. The company has built a strong reputation as a professional manufacturer and supplier of precision thread gauges, including Acme thread gauges, API thread gauges, and Stub Acme thread gauges.

Sowant Precision Gage operates as both a manufacturer of China-made thread gauges and an authorized distributor of leading international brands, including Dorsey metrology,trimos, sylvac, PLASTIFORM M70, and OSKAR SCHWENK.

7.2 ASME B1.5 Acme Thread Gauge Product Portfolio

Sowant Precision Gage manufactures a comprehensive range of ASME B1.5 Acme thread gauges, including:

All Sowant Acme thread gauges are manufactured in strict accordance with ASME B1.5-1997 (R2014) , with thread form, dimensions, and tolerances precisely as specified in the standard.

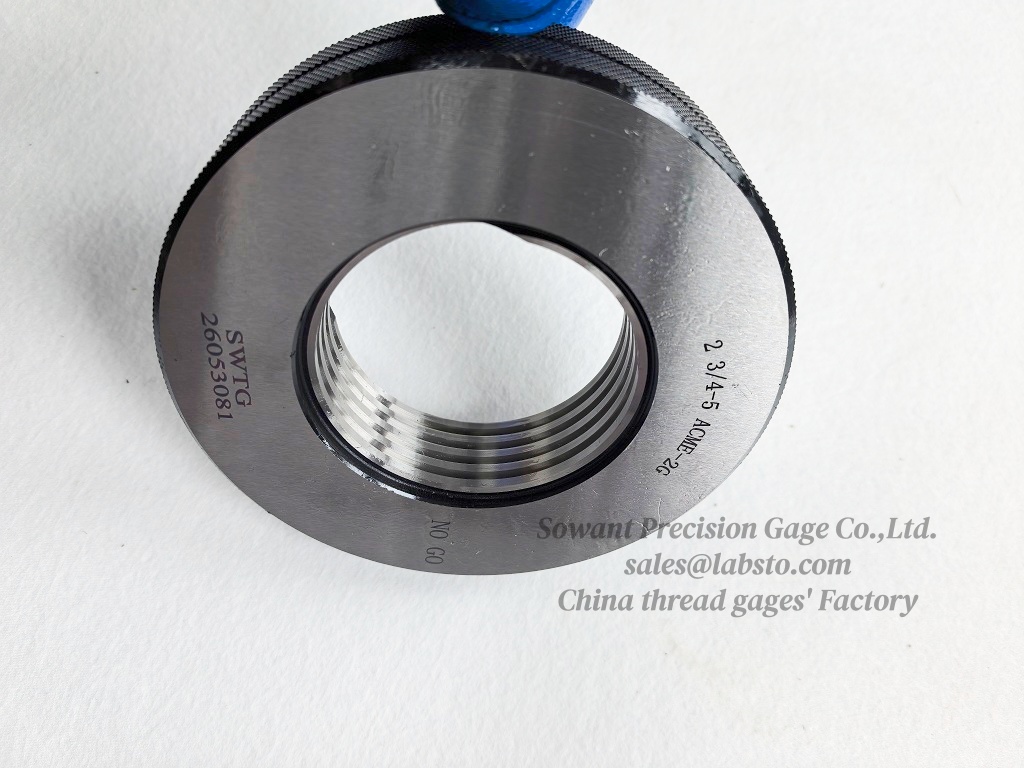

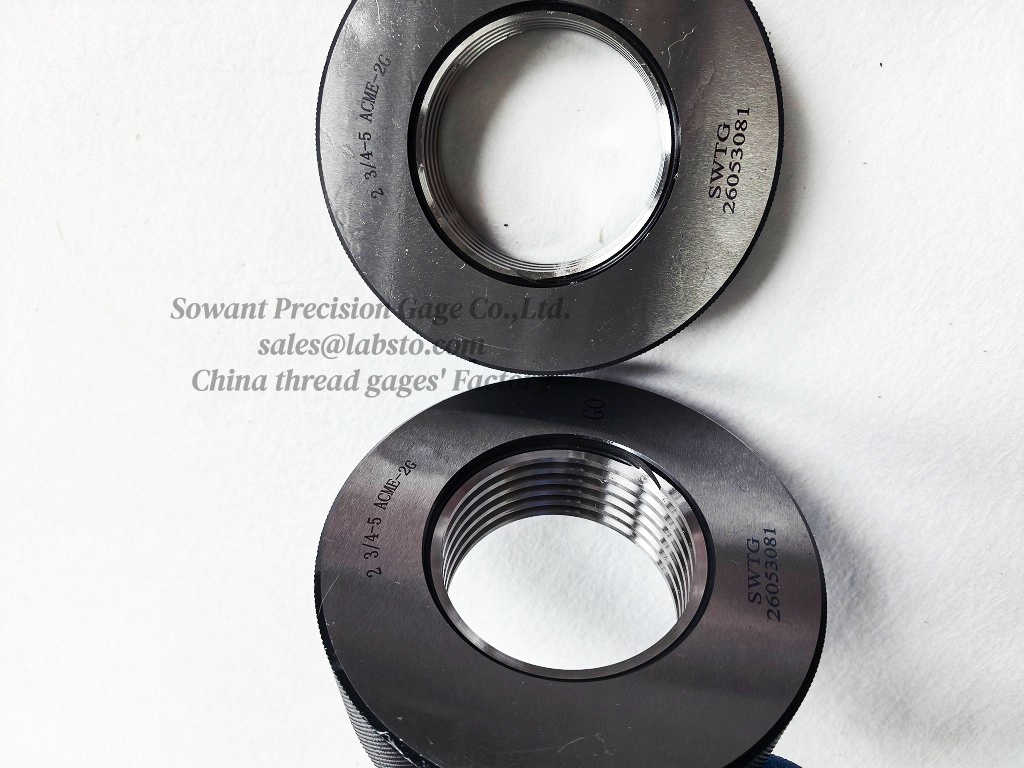

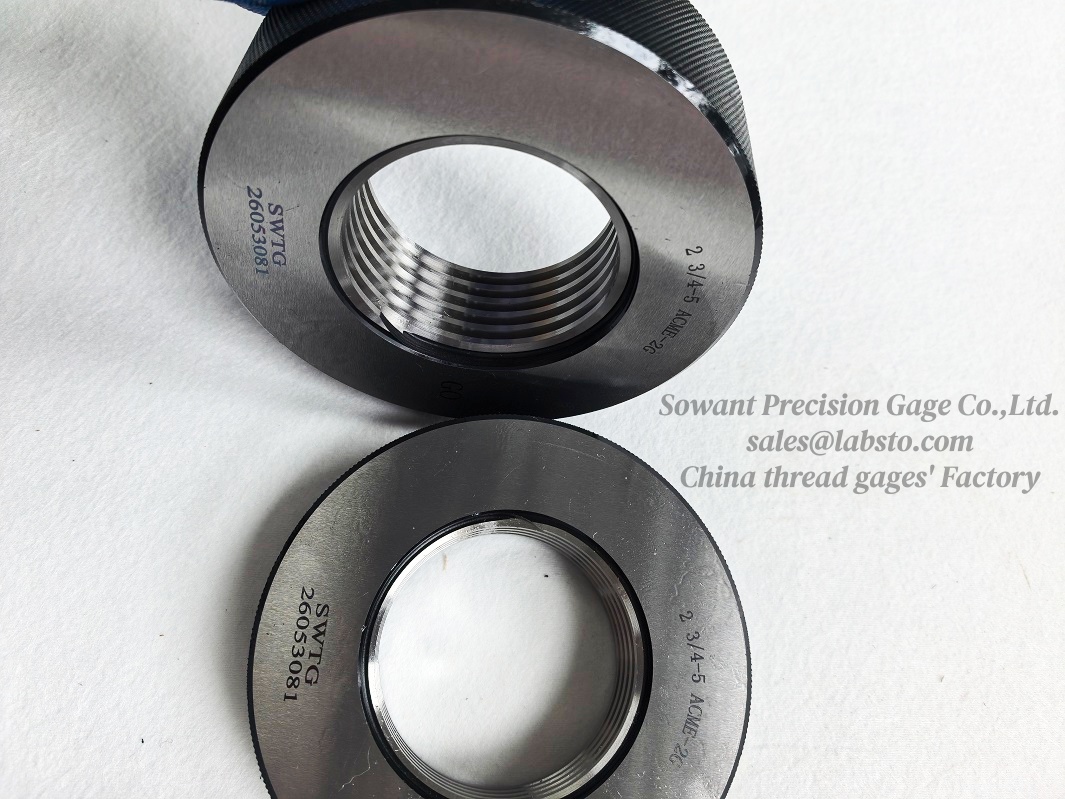

7.3 The 2.750-5 ACME-2G Thread Ring Gauge — Available from Sowant Precision Gage

Sowant Precision Gage manufactures the 2.750-5 ACME-2G thread ring gauge (GO/NO-GO set) with the following distinguishing features:

Key Specifications:

• Full compliance with ASME B1.5-1997 (R2014)

• Precision-ground 29° Acme thread form

• GO ring pitch diameter: 2.6580 inches + gage maker’s tolerance (maximum product pitch diameter acceptance)

• NO-GO ring pitch diameter: 2.6460 inches — gage maker’s tolerance (minimum product pitch diameter acceptance)

• Class of fit: 2G (General Purpose, most commonly specified)

Quality and Delivery Advantages:

• Short delivery lead times — Sowant maintains substantial finished goods inventory and can deliver standard sizes, including 2.750-5 ACME-2G, with reduced lead times

• High precision — Manufacturing processes ensure gauge accuracy within microns; measurement surface hardness is ≥58–62 HRC, ensuring durability and dimensional stability

• Traceable calibration — Every gauge is supplied with a calibration certificate traceable to international standards (ISO, DIN, GB)

• Complete GO/NO-GO sets — Provided as separate GO and NO-GO ring gauges, clearly laser-marked for easy identification

For inquiries, pricing, or expedited delivery requests regarding the 2.750-5 ACME-2G thread ring gauge set, customers are invited to contact Sowant Precision Gage directly.

7.4 Quality Assurance and Calibration

Sowant Precision Gage follows a rigorous quality assurance protocol for every Acme thread gauge manufactured:

1. Inspection by Master Gauges — All working gauges are verified against master/calibration grade gauges traceable to national and international standards

2. Hardness Testing — Verification of 58–62 HRC for wear resistance and dimensional stability

3. Surface Finish Measurement — Ground thread flanks with ≤0.2 μm Ra for smooth gauging action

4. Dimensional Verification — Using high-precision thread measuring machines, Sowant verifies that the major diameter, pitch diameter, and minor diameter are all within required standard limits

5. Calibration Certificate — Provided with every gauge, traceable to recognized standards

7.5 Why Choose Sowant Precision Gage for Acme Thread Gauges?

8. Conclusion

The ASME B1.5 Acme thread ring gauge standard provides the essential framework for quality assurance of 29-degree trapezoidal threaded connections across power transmission, lead screw, heavy machinery, and industrial equipment applications. The General Purpose Acme thread form—with its 29° included angle, 0.5P thread height, and three fit classes (2G, 3G, and 4G)—offers engineers a robust solution that combines superior wear properties, load capabilities, and interchangeability.

The 2.750-5 ACME-2G thread ring gauge exemplifies the precision required in Acme gauging, with basic dimensions of 2.7500 inches major diameter, 2.6500 inches pitch diameter, and 2.5500 inches minor diameter at 5 TPI. Proper gauging practice requires GO gauge acceptance (smooth full-thread engagement) and NO-GO gauge rejection (no more than 1½ to 2 turns of entry), as specified by ASME B1.5 gauging principles.

Sowant Precision Gage Co., Ltd. stands as a premier manufacturer and supplier of ASME B1.5 Acme thread ring gauges, including the 2.750-5 ACME-2G thread ring gauge available with short lead times and high precision. With in-house manufacturing capabilities covering a full range of Acme thread gauges—from 1/4″ to 12″ diameters, 16 to 2 TPI, and 2G, 3G, 4G tolerance classes—backed by traceable calibration, ISO-compliant quality assurance, and strategic international partnerships, Sowant delivers the precision, reliability, and responsiveness that demanding industrial applications require.

For inquiries, quotations, or technical consultation regarding the 2.750-5 ACME-2G thread ring gauge or any other Acme thread gauge requirements, please contact Sowant Precision Gage today.
